Introduction

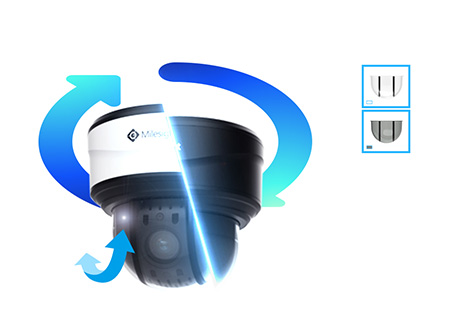

Milesight 12X/20X/23X Mini PTZ Dome Network Camera is designed for high-grade all-round monitoring. To erase the hassle of installation and maximize the convenience, the camera fits for four different installations modes with various accessories. Apart from that, Milesight also provides Smoked Dome Cover (AC-71) to hide the direction in which the lens is pointing while remain the UHD video images, preventing intruders from taking advantage of knowing where security cameras are pointing and their vulnerable spots.

mini PTZ Dome camera

Four Different Installation Modes for Different Needs

Considering different requirements from customers for specific installation environments, the Mini PTZ Dome Camera accesses to four different installation modes. The Mini PTZ Dome Camera with the Mounting Bracket (Picture 1) is the basic installation mode. Also, Milesight offers A78 (Picture 2) and A79 (Picture 3) for ceiling installation. For wall or parapet installation, A77 (Picture 4) is available. Before installing the camera, please make sure the installed side could withstand 8 times weight of the Mini PTZ Bullet Camera, which is around 2kg.

Mini PTZ Dome Camera
PTZ Dome Camera
(Picture 1)
A78 Recessed Mount of Mini PTZ Dome Camera
A78 Recessed Mount
(Picture 2)
A79 Pendant Mount of PTZ Dome Camera
A79 Pendant Mount
(Picture 3)
A77 Wall Mount of PTZ Dome Camera
A77 Wall Mount
(Picture 4)

Installed with Mounting Bracket

Installation Environment

For easy installation on the wall to meet the monitoring needs.

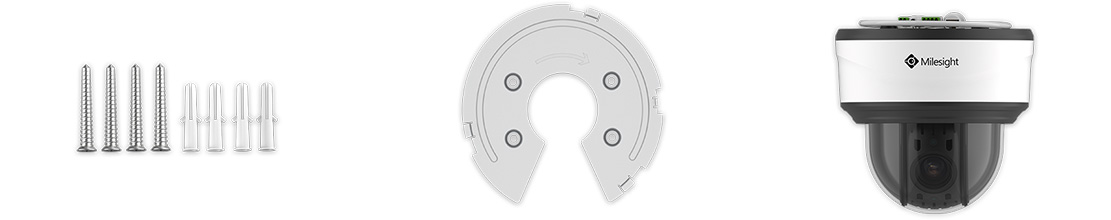

screws, bracket and Mini PTZ Dome Camera

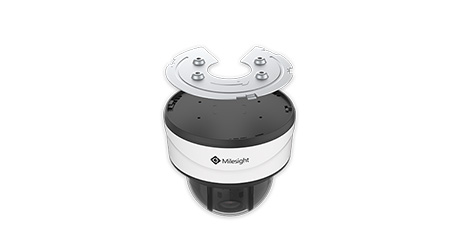

Step 1: Take off the mounting bracket from the camera;

bracket and Mini PTZ Dome Camera

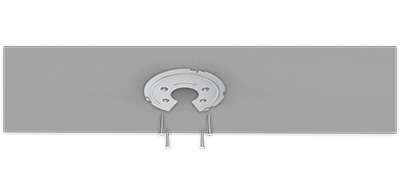

Step 2: Fix the bracket on ceiling or wall where the camera is intended to be installed. Then secure the screws;

install bracket on the wall

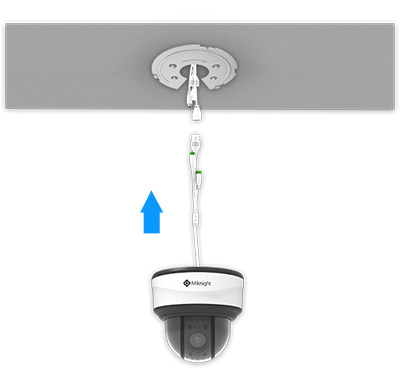

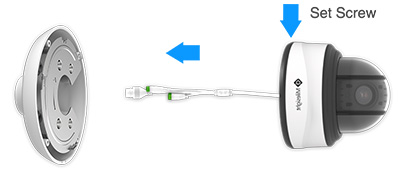

Step 3: Connect cables, rotate the camera to the bracket clockwise;

Connect cables of Mini PTZ Dome Camera

Note:

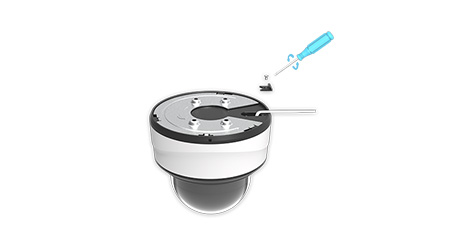

If you need cables out through the side, please loose the screw in the bottom if need.

side cable out of mini ptz dome camera

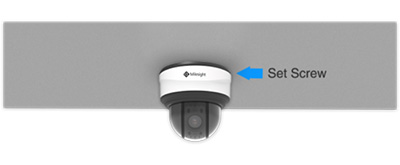

Step 4: Tighten the set screw to finish the installation.

installed mini ptz dome camera on the wall

Installed with A78 Recessed Mount

Installation Environment:
For the containing of electrical connections which need to be concealed from sight and deter tampering, so that the camera better merge with the structure.

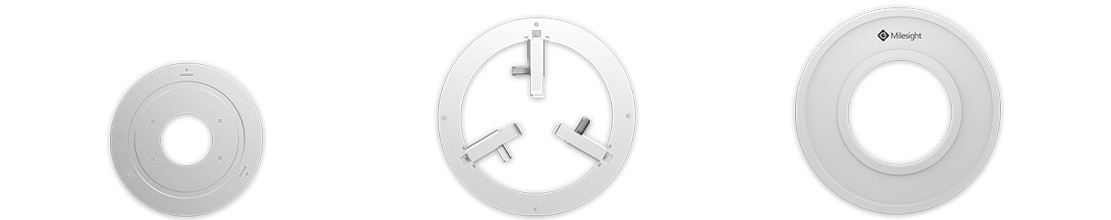

tree part of A78 Recessed Mount

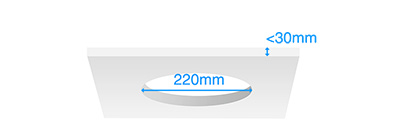

Step 1: Ensure that the intended installed ceiling is suitable. The thickness of ceiling should be less than 30mm. Then drill a 220mm round hole on it;

wall

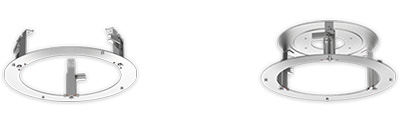

Step 2: Assemble the Recessed Mount. Stand up the legs of the big part, then put the small part on it and screw the three screws;

body part of A78 Recessed Mount

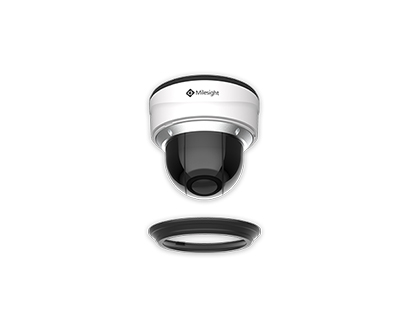

Step 3: Take off the black cover of the Mini PTZ Dome Camera;

Mini PTZ Dome Camera

Step 4: Put the whole Mini PTZ Dome Camera into the combined Recessed Mount and cables through it;

combined Recessed Mount with Mini PTZ Dome Camera

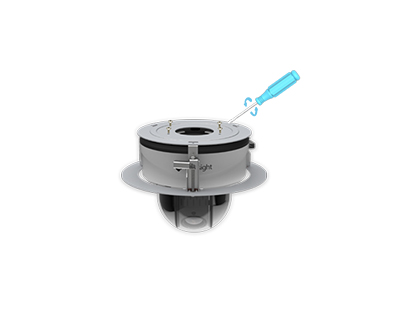

Step 5: Lock the camera with mounting bracket to the Recessed Mount;

Recessed Mount with Mini PTZ Dome Camera

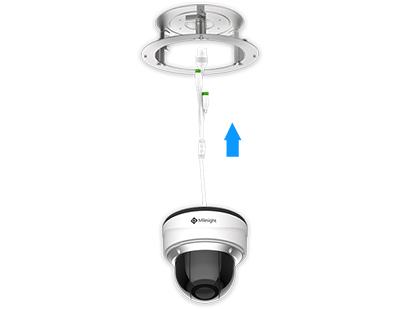

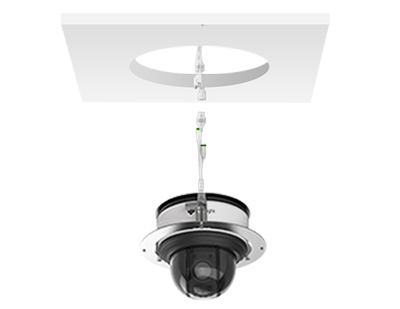

Step 6: Connect the cables and install the camera with Recessed Mount into the drilled hole;

Recessed Mount with Mini PTZ Dome Camera

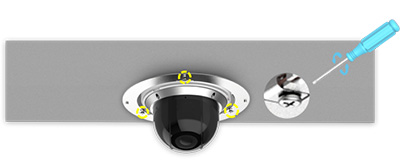

Step 7: Tighten the three screws of the Recessed Mount to make sure the mount leg stuck in the wall;

Recessed Mount with Mini PTZ Dome Camera installed in the wall

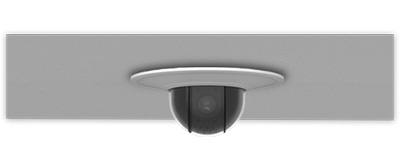

Step 8: Put the Recessed Mount Cover on to finish the installation.

Recessed Mount with Mini PTZ Dome Camera installed in the wall

Installed with A79 Pendent Mount

Installation Environment:
Used to install camera on a ceiling or horizontal structure. If the ceiling or horizontal structure is high, the Pendent Mount will help to give the best monitoring angle.

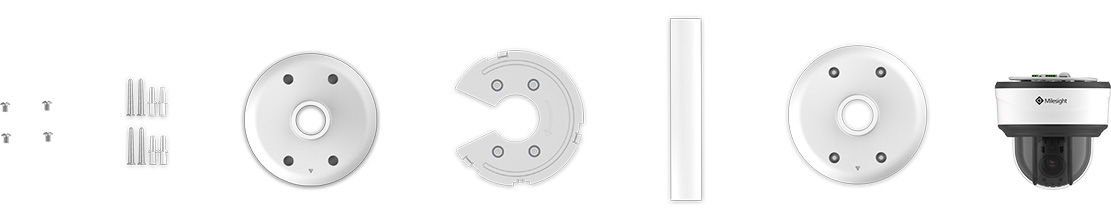

A79 Pendent Mount parts and Mini PTZ Dome Camera

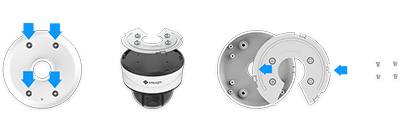

Step 1: Mark holes with the pendant head, and then drill 4 holes in the ceiling. Take off the mounting bracket from the camera. Then secure the mounting bracket with pendant base;

A79 Pendent Mount parts and Mini PTZ Dome Camera

Step 2: Put the cables through the pendant base and then rotate the camera clockwise and secure the set screws;

A79 Pendent Mount head part and Mini PTZ Dome Camera

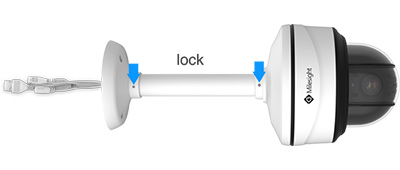

Step 3: Put the cables through the pendant pipe. And rotate it with the base and secure set screws. Put the cables through the pendant head, and rotate it with the pipe and secure the set screws;

A79 Pendent Mount parts and Mini PTZ Dome Camera

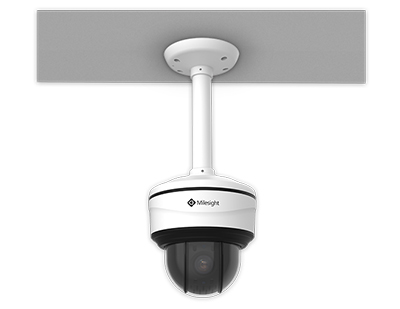

Step 4: Fix the whole pendant and camera to the drilled holes in ceiling.

A79 Pendent Mount parts and Mini PTZ Dome Camera installed in the wall

Installed with A77 Wall Mount

Installation Environment:
For wall or parapet installations such as on the outside walls or poles on the road.

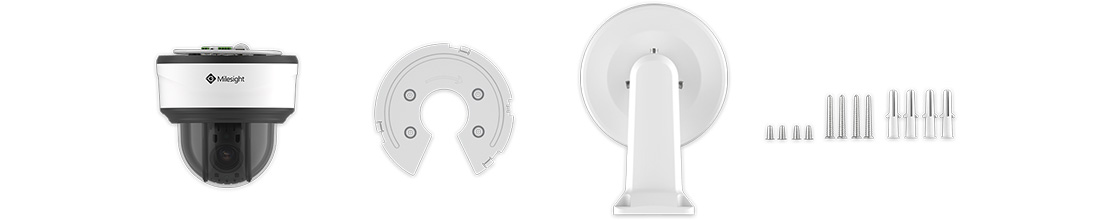

A77 Wall Mount part and Mini PTZ Dome Camera

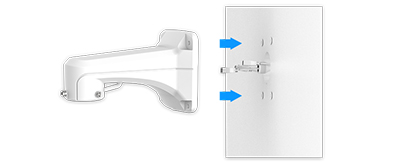

Step 1: Put the cables through the back part A77 Wall Mount. And secure the screws to fix it on the wall or parapet;

back part of A77 Wall Mount Part

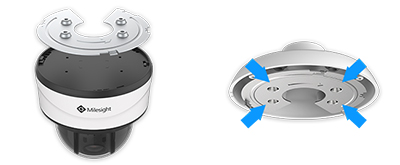

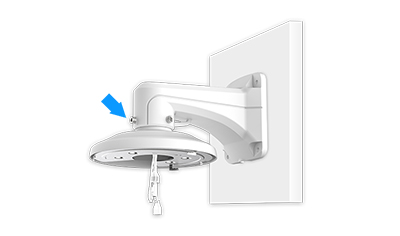

Step 2: Take off the mounting bracket from the camera. Fix it on the head part of the A77 with the screws corresponding to the holes;

bracket and Mini PTZ Dome Camera

Step 3: Put the cables through the head part of the A77 and connect the back part and head part;

A77 Wall Mount

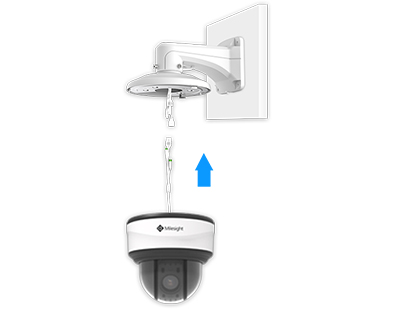

Step 4: Connect cables and rotate the camera to the bracket clockwise;

A77 Wall Mount and Mini PTZ Dome Camera

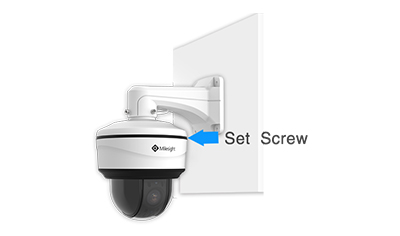

Step 5: Tighten the set screw to finish the installation.

A77 Wall Mount and Mini PTZ Dome Camera

Conclusion

Mini PTZ Dome Camera could be regard as a true user-friendly one with four different installation mode. Various accessories satisfy different installation requirements making the installation much more flexible and convenient. Especially with Recessed Mount, the Mini PTZ Dome Camera could better hide itself and merge with the environment.
