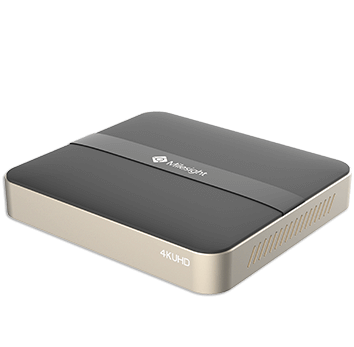

4K H.265 Mini PoE NVR 1000 Series

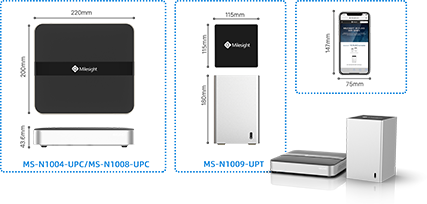

Ultra-mini Size with 4-CH PoE Ports

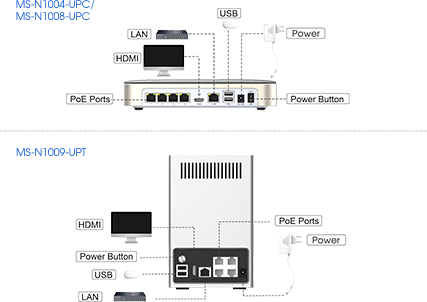

4/8/9-CH Video Input · Up to 10TB Storage · Ultra-mini Size · Decode up to 2-CH 4K UHD & 8-CH 1080P · ANR · Versatile Interfaces

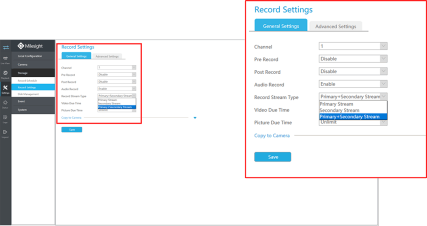

4K H.265 Onvif Plug&Play HDMI Dual Stream
Recording

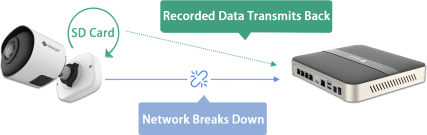

ANR ANPR VCA Online Upgrade P2P HTML5
Mini PoE NVR
Mini PoE NVR
Mini PoE NVR
Mini PoE NVR
Mini PoE NVR
Mini PoE NVR
  • Input

    Network Video Input4-CH

    Bandwidth Requirement40Mbps (Incoming)
    40Mbps (Outgoing)

    Output

    HDMI Output1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)

    Dual StreamSupport

    Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF

    Synchronous Playback1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 4*(30fps @720P)

    Format

    Video CompressionH.265+/H.265(HEVC)/H.264+/H.264

    Audio FormatG.711/AAC/G.722/G.726

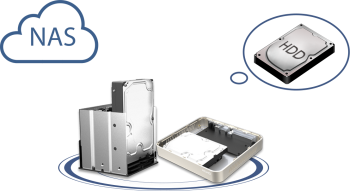

    Storage

    SATA1*SATA HDD (3.5”)

    CapacityUp to 10TB capacity for each HDD

    Record

    Synchronous Recording4*5MP

    Recording TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)

    Playback TypeGeneral Playback, Event Playback, Tag Playback, Split Playback, Picture Playback

    BackupVideo backup, Image Backup

    Network

    Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS

    Interface

    Network Interface1*RJ45 10/100Mbps

    USB Interface2*USB 2.0

    PoE Interface

    Interface4*RJ45 10/100Mbps

    Power Output≤40W

    Supported StandardIEEE 802.3af/at

    General

    CompatibilityONVIF, API

    Advanced FunctionANR

    Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed

    Keyboard ControlMilesight Keyboard(MS-K01)

    Power SupplyDC 48V 1.3A

    Consumption≤3.5W(Without HDD, without enabling PoE)

    Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%

    Dimensions220mm(W)X200mm(D)X43.6mm(H)

    Weight0.2Kg

    Warranty3/5 Years

  • Input

    Network Video Input8-CH

    Bandwidth Requirement80Mbps (Incoming)
    80Mbps (Outgoing)

    Output

    HDMI Output1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)

    Dual StreamSupport

    Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF

    Synchronous Playback1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 8*(30fps @720P)

    Format

    Video CompressionH.265+/H.265(HEVC)/H.264+/H.264

    Audio FormatG.711/AAC/G.722/G.726

    Storage

    SATA1*SATA HDD (3.5”)

    CapacityUp to 10TB capacity for each HDD

    Record

    Synchronous Recording8*5MP

    Recording TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)

    Playback TypeGeneral Playback, Event Playback, Tag Playback, Split Playback, Picture Playback

    BackupVideo backup, Image Backup

    Network

    Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS

    Interface

    Network Interface1*RJ45 10/100Mbps

    USB Interface2*USB 2.0

    PoE Interface

    Interface4*RJ45 10/100Mbps

    Power Output≤40W

    Supported StandardIEEE 802.3af/at

    General

    CompatibilityONVIF, API

    Advanced FunctionANR

    Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed

    Keyboard ControlMilesight Keyboard(MS-K01)

    Power SupplyDC 48V 1.3A

    Consumption≤3.5W(Without HDD, without enabling PoE)

    Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%

    Dimensions220mm(W)X200mm(D)X43.6mm(H)

    Weight0.2Kg

    Warranty3/5 Years

  • Input

    Network Video Input9-CH

    Bandwidth Requirement90Mbps (Incoming)
    90Mbps (Outgoing)

    Output

    HDMI Output1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)

    Dual StreamSupport

    Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF

    Synchronous Playback2*(30fps@8MP), 2*(30fps@6MP), 3*(30fps@5MP), 4*(30fps@4MP), 5*(30fps@3MP), 8*(30fps@1080P), 9*(30fps@720P)

    Format

    Video CompressionH.265+/H.265(HEVC)/H.264+/H.264

    Audio FormatG.711/AAC/G.722/G.726

    Storage

    SATA1*SATA HDD (3.5”)

    CapacityUp to 10TB capacity for each HDD

    Record

    Synchronous Recording9*5MP

    Recording TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)

    Snapshot TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)

    Playback TypeGeneral Playback, Event Playback, Tag Playback, Split Playback, Picture Playback

    BackupVideo backup, Image Backup

    Network

    Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS

    Interface

    Network Interface1*RJ45 10/100/1000Mbps

    USB Interface2*USB 2.0

    PoE Interface

    Interface4*RJ45 10/100Mbps

    Power Output≤40W

    Supported StandardIEEE 802.3af/at

    General

    CompatibilityONVIF, API

    Advanced FunctionANR

    Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting

    Keyboard ControlMilesight Keyboard(MS-K01)

    Power SupplyDC 48V 1.25A

    Consumption≤6W(Without HDD, without enabling PoE)

    Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%

    Dimensions115mm(W)X115mm(D)X180mm(H)

    Weight1.5Kg

    Warranty3/5 Years

  • * Naming Convention

      U - 4K

      P - PoE

      C/T/H - H.265 Compression
