AI Video Analytics
Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.
Milesight People Counting Technology provides high accuracy and real-time data based on AI algorithm, with statistic reports for further analysis. It is a reliable and efficient way to understand the flow movement and make fast decision on security management. By analyzing the data and trend, you can also identify the peak of occupancy and increase the operational efficiency of the business.
Leading-edge H.265+ Compression
Advanced Heat Map
With scenario-adaptable and flexible configurations, Milesight Advanced Heat Map is embedded into the AI series(except PTZ series), which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.

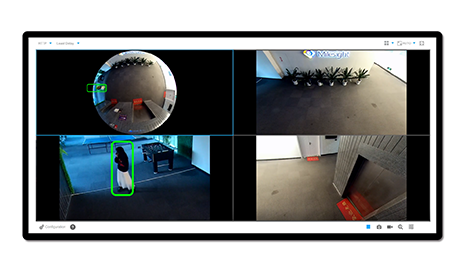

Fisheye Auto Tracking
Fisheye Auto Tracking function is embedded into the Fisheye Camera, which ideally realizes the Auto Tracking in the 360° Panoramic View to monitor the wide areas. Once the function is enabled, the camera can perform the digital Pan/Tilt/Zoom under Regional Views to track the moving objects automatically to avoid any details missing for comprehensive securing.

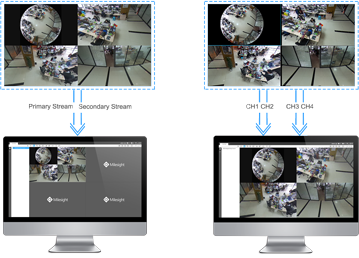

Two Kinds of Compatible Modes
Milesight AI Fisheye Network Camera offers Bundle-Stream Mode and Multi-Channel Mode to meet different needs. The Bundle-Stream Mode combines all the channels into one and sends to NVR or VMS, which is easy for compatibility. The Multi-Channel Mode sends all the original channels to NVR or VMS, so the channels can be modified separately.

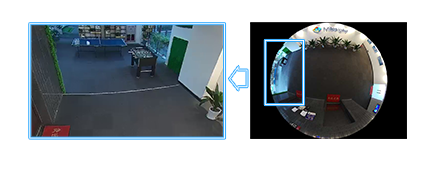

Powerful Decoding Capacity
The AI Fisheye Network Camera features powerful decoding ability, which could provide high performance in each decoding channels, such as up to 25fps@12MP under 1O and up to 30fps@3MP for each channel under 4R.

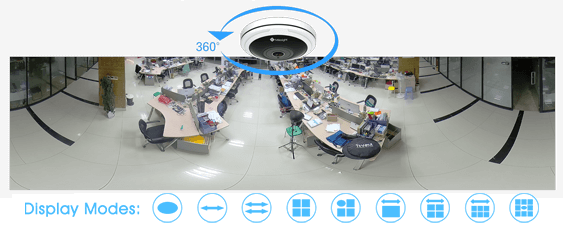

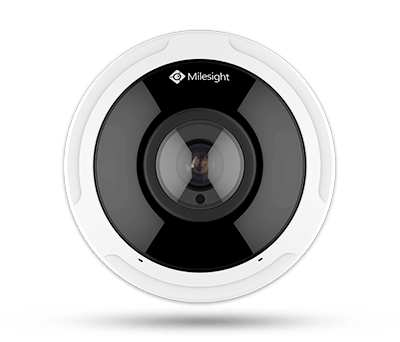

360° Panoramic Experience
The AI Fisheye Network Camera is born to bring panoramic experience, which would easily reach the effect of over 4 regular network cameras with higher efficiency, bringing 360° surround view with zero blind spots. At the same time, it brings up to 9 display modes including 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 9R, which fit for your different viewing needs.

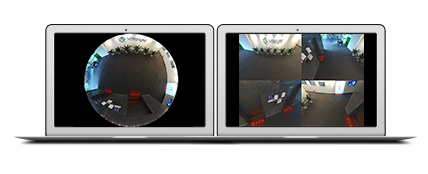

Stunning Dewarping Ability
With superior chipset, Milesight AI Fisheye Network Camera has outstanding dewarping ability, which could dewarp the original Fisheye View into other display modes while remaining the high image quality for different kinds of viewing needs.
Smart IR II Technology
The Smart IR II Technology has been upgraded to provide videos with a viewing range of up to 15m. Three LEDs work as High Beams and three LEDs work as Low Beams for better image clarity and quality. The advanced IR technology allows even IR light distribution in different situation and the brightness of High Beams and Low Beams can be adjusted manually. Moreover, with the IR anti-reflection panel, the infrared light transmittance is highly increased.
Robust & Reliable Performance
Featuring IP67 Weather-proof and IK10 Vandal-proof, the camera shields its sensitive electronics from dust and water, which ensures stable operation in all weather conditions. Also protect itself from the unexpected violence, guaranteeing the smooth running to avoid potential damages.

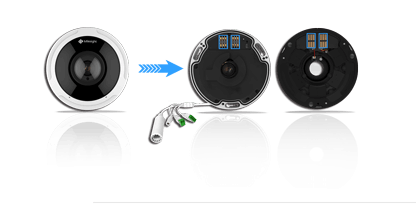

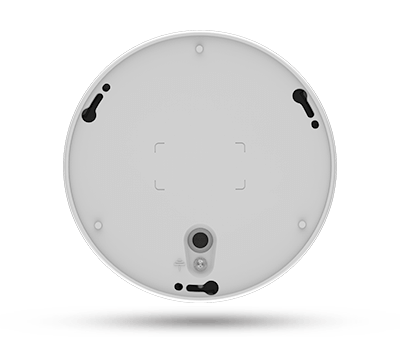

The body design of the camera insists on the idea of neatness and exquisiteness. As a whole, the screw-free design and Multiple-interface Cable keep the body neat. The Power Supply Board replaced the traditional way of power supply with cable which freeing interior space, making the camera an art of surveillance inside and out.

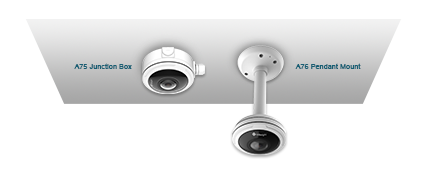

Various Accessories For Easy Installation
Milesight offers various installation accessories to make it easy to install Milesight AI Fisheye Network Camera. The Junction Box (A75) greatly helps to easily connect and conceal the cables. And the Pendant Mount (A76) used to install the camera on an ceiling or vertical structure.
- Click to See the Video of Fisheye Camera

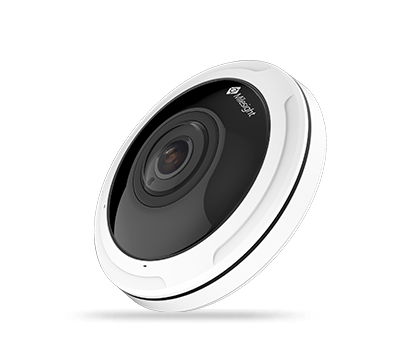

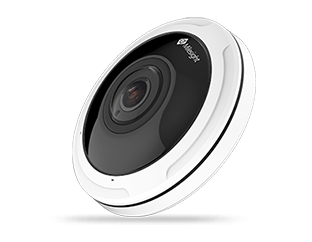

Name12MP AI 360° Fisheye Network Camera
Image Sensor1/1.7" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @F1.2, Color: 0.05Lux @F2.8, B/W: 0Lux with IR on
WDR120dB Super WDR
Field of ViewCeiling Mount:360°; Wall Mount:180°; Flat Mount:360°
IR DistanceUp to 15m
Mount ModeCeiling Mount / Wall Mount / Flat Mount
Decoding ModeOn-board Dewarping/Client-side Dewarping
Display Mode11 display modes in total.
Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R
Wall Mount: 1O, 1P, 4R, 1O3R, 1P1R, 1P4R
Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R
Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R
Wall Mount: 1O, 1P, 4R, 1O3R, 1P3R, 1O1P3R
Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R
1. Only Fisheye in Multi-Channel Mode supports 1O1P3R.
2. The above letters O, P and R are explained as follows:
O----Fisheye View; P----180° Fisheye View; 2P----2*180° Panoramic View; R----PTZ
Max. Input Resolution4000x3000
Primary StreamFisheye View:
60Hz: 30fps@(3000x3000, 2560x2560, 1920x1920, 1280x1280)
50Hz: 25fps@(3000x3000, 2560x2560, 1920x1920, 1280x1280)
Secondary StreamFisheye View:
60Hz: 30fps@(1280x960, 1024x1024, 736x736, 576x576)
50Hz: 25fps@(1280x960, 1024x1024, 736x736, 576x576)
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Ethernet1*RJ45 10M/100M/1000M Ethernet Port
Audio I/OBuilt-in Microphone and Audio Input/Output interface
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting&ReportCount the number of people entering or exiting
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionAuto Tracking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP upload, SMTP upload, SD card record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption6W MAX, 11W MAX(With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated metal housing
* Naming Convention
P - PoE Supported
B - H.265 Compression
