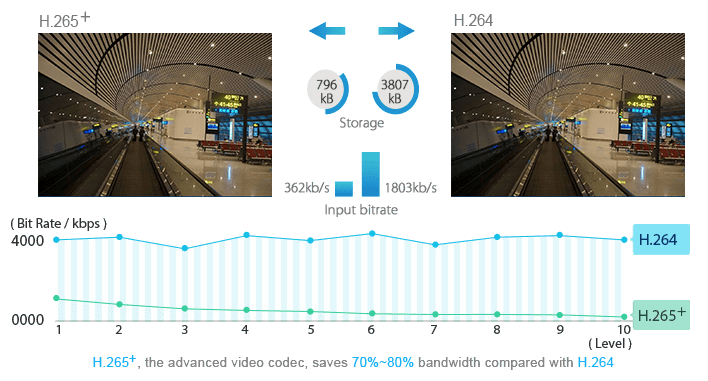

Leading-edge H.265+ Compression
License Plate Recognition (LPR/ANPR)
Embedded in the LPR Mini Bullet Network Camera, the LPR algorithm allows the camera to capture real-time license plates in both the highest levels of glare and the darkest hours of the night.
Wide Angle, High Resolution
Applied with 2.8mm ultra wide angle lens, the camera is able to catch more than 120° field of view, which is the leading level of the industry. And the details could be guaranteed even under wide angles with the superior image quality.
0.002Lux Ultra Low-light
The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
3 in 1 Super WDR Pro - 140dB
Milesight upgraded 3 in 1 Super WDR Pro outputs three frames each line, which is able to bring more details especially moving subjects. What’s more, it greatly improves image quality for reducing smear and noisy points. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.

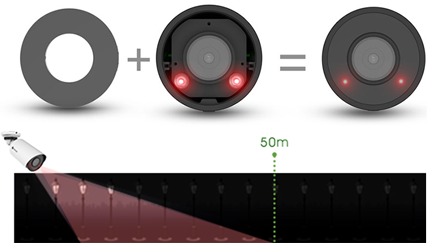

Revolutionary IR Performance
To maximize the IR performance, the LPR Mini Bullet Network Camera innovated both in the structure and technology. The advanced Smart IR II technology with 50m IR distance, guarantees IR performance with adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti-reflection panel which is well designed for better IR effect.
120fps Ultra High Frame Rate
The LPR Mini Bullet Network Camera features with ultra high frame rate including 120fps@2MP and 60fps@2MP, which enables the camera to easily catch images with no latency despite the high-speed movement.

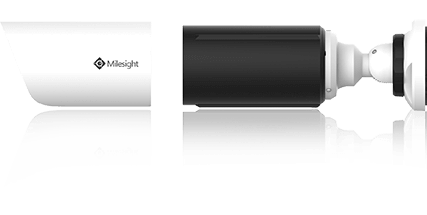

Unique Sunshield Design
This stylishly designed LPR Mini Bullet Network Camera has a unique outdoor housing sunshield that almost encircles the camera body, which effectively blocks the sun from entering the lens path and offers great thermal insulation.

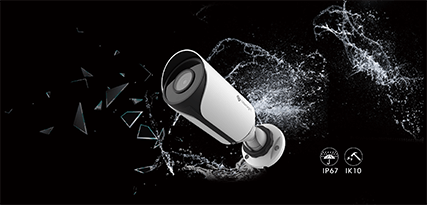

IP67 & IK10
Supporting industry-leading IP67-rated weather proofing and IK10-rated vandal proofing, the LPR Mini Bullet Network Camera is well protected against adverse impacts to ensure the performance.

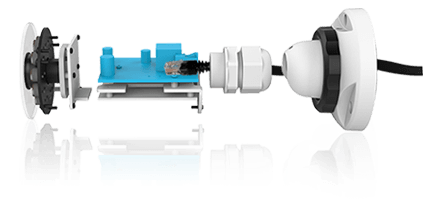

Built-in PoE Module
Milesight LPR Mini Bullet Network Camera incorporates IEEE 802.3af Power over Ethernet module inside the body which offers easy installation for Standard Version by providing power and networking connectivity with a single cable.

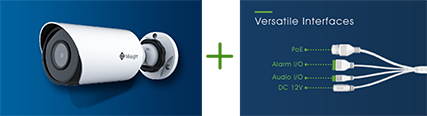

Several interfaces such as PoE, DC, Audio I/O and Alarm I/O are available in the Multi-interface Version, offering more choices for easy management and various needs.

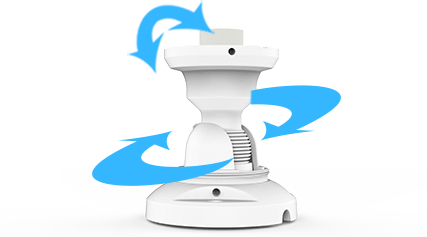

Easily Adjustable 3-Axis Bracket
The LPR Mini Bullet Network Camera is easy to install on a wall or ceiling. It features 3-axis bracket which provides a robust mounting platform for tidy installation and camera angle adjustments on a 3-axis plane.
The LPR Mini Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Name2MP LPR H.265 Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, B/W: 0Lux with IR on
WDR140dB Super WDR (Super WDR Pro is optional for Q Series)
Field of ViewH123°/D138°/V68°(2.8mm), H109°/D125°/V59°(3.2mm), H91°/D106°/V49°(3.6mm), H57°/D65°/V32°(6mm)
Day&NightICR Filter Auto Switch
IR DistanceUp to 40m(2.8mm/3.2mm/3.6mm);
Up to 50m (6mm)
Max. Vehicle Speed120km/h
Max. Image Resolution1920x1080
Primary Stream120fps@(1920x1080)(Optional for Q Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio I/O1/1(Multi-interface Version)
Communication1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Alarm I/O1/1(Multi-interface Version)
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionPrivacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Motion Detection, Network Disconnection, etc.;
Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;
FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
License Plate RecognitionSupport
System CompatibilityONVIF Profile S & G & T
PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption4.2W MAX, 5.7W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
