Leading-edge H.265+ Compression
-

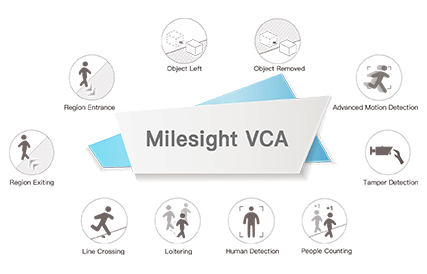

Video Content Analysis (VCA)
Milesight VCA with 10 detection modes provides advanced, accurate smart video analysis for Milesight network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.
-

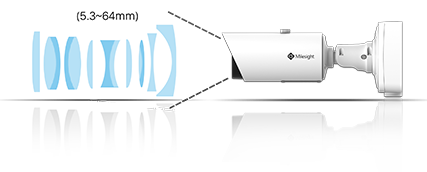

12X Optical Zoom
The 12X Optical Zoom can zoom in to distant objects while still maintaining the clarity, delivering high quality video over the entire image.
-

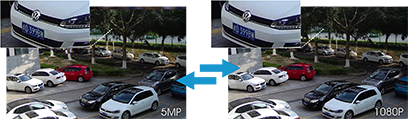

UP to 5MP High Resolution

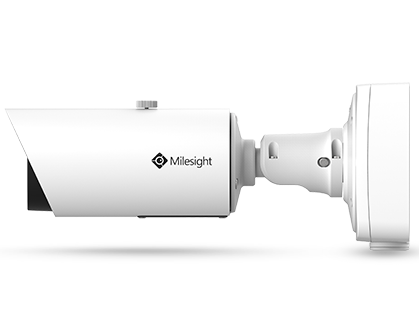

The 12X H.265+ AF Motorized Pro Bullet Network Camera delivers up to 5MP resolution (2592*1944), providing users with high definition viewing experience.
-

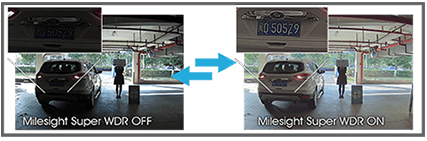

140dB Super WDR
Milesight’s sensor-based WDR technology allows the Network Camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.
-
3rd Generation Dot Matrix IR LEDs
In order to provide superior night visibility, Milesight 12X H.265+ AF Motorized Pro Bullet Network Camera employs the 3rd generation dot matrix IR LEDs, essentially guaranteeing excellent image quality, long lifespan and energy efficiency.
-

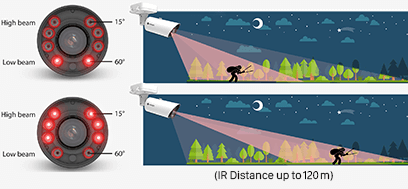

Smart IR II Technology
The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 120m. Six LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.
-
IP67 Weather-proof Housing
IP67-rated housing of the 12X H.265+ AF Motorized Pro Bullet Network Camera shields its sensitive electronics from dust and water, which ensures stable operation in all weather conditions.
-
PTFE Membrane
Applying the PTFE membrane to ventilation holes, the 12X H.265+ AF Motorized Pro Bullet Network Camera housing is designed to keep moisture and dust out while allowing air to flow into and out of the device, which effectively ensures pressure equalization in the enclosures and prevents fogging and a buildup of condensation of the lenses, guaranteeing supreme image clarity.
-
Integrated Cable Management Bracket
In the base, there are power interface, PoE port and other interfaces. Thanks to integrated cable management, it takes no effort in installation.
-

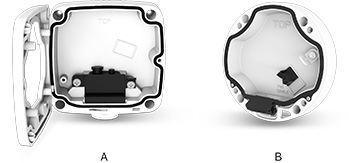

Integrated Junction Box
A: The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.
B: The round design of the junction box conceals the cables inside, making it look more neat and clear. -
SIP/VoIP Support
Milesight 12X H.265+ AF Motorized Pro Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
-
Camera
Name2MP 12X H.265 AF Motorized Pro Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 120m
S/N>55dB
Lens
Lens5.3∼64mm, 12X Optical Zoom
Field of ViewH61°∼H5°/D69°∼D5°/V36°∼V2°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6∼F2.8
Iris ControlAuto
Video
Max. Image Resolution1920x1080
Frame Rate30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption5.5W MAX, 11W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
Dimensions134mmX126mmX285mm
Weight1080g
Warranty3/5 Years
-
Camera
Name5MP 12X H.265 AF Motorized Pro Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 120m
S/N>55dB
Lens
Lens5.3∼64mm, 12X Optical Zoom
Field of ViewH57°∼H4°/D69°∼D5°/V44°∼V1°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6∼F2.8
Iris ControlAuto
Video
Max. Image Resolution2592x1944
Frame Rate20fps@(2592x1944), 30fps@(2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption5.5W MAX, 11W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
Dimensions134mmX126mmX285mm
Weight1080g
Warranty3/5 Years
-
* Naming Convention
H - 30fps@5MP Series
Q - High Frame Rate (120fps)
T - High Frame Rate (90fps)
R - High Frame Rate (60fps)
E - Enterprise Edition
P - PoE Supported
B - H.265 Compression
