5G High Bandwidth
5G's spectrum is higher in frequency than the bands used in 4G and earlier generations of cellular networks. Thanks to the high bandwidth and massive network capacity of 5G networks, Milesight 5G Pro Bullet Plus Camera is qualified to stream ultra high definition videos up to 4K even 8K, supporting upload and download ultra high resolution footages within few seconds.
5G Low Latency
5G technology differs from previous generations of cellular technology in that the response time required for a set of data to be transmitted between two points is significantly reduced. Benefit brought by higher data speed of 5G technology, Milesight 5G Pro Bullet Plus Camera can greatly reduce the network latency and camera response time, providing a smooth real-time monitoring with almost no lagging time.

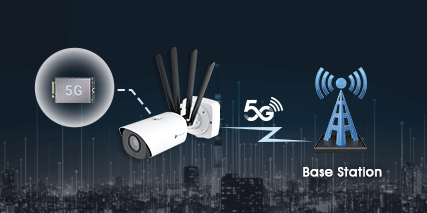

5G High Mobility
Leveraging the high transmitted power of 5G, Milesight 5G Pro Bullet Plus Camera can transmit or receive video signals over Internet wirelessly by simply powering the camera and inserting a SIM card, eliminating the need of complicated cable and fiber connections. Compared with add-on routers, the built-in 5G module enhances the mobility of its deployment, providing a reliable security solution.
5G Broad Extensibility
Empowered by 5G and AI technology, Milesight 5G Pro Bullet Plus Camera has enriched connectivity feature for unparalleled flexibility and scalability. Compared with traditional video surveillance, smart video surveillance expands the scope of security monitoring, bringing new possibilities for industries such as Smart City, Smart Retail, Smart Medical, Smart Transportation and other fields.
Edge Computing
5G will further open up the use cases for edge computing, benefiting AI algorithm running on the edge to deliver advanced video analytics solutions such as face detection, license plate recognition, etc. The decentralization greatly releases the computing power in central management, reducing the time cost, thus improving the comprehensive working efficiency.
AI Deep Learning
Milesight 5G Pro Bullet Plus Camera supports AI Video Analytics, People Counting, Face Detection. Powered by AI chip, it is capable of recognizing vast attributes of human, vehicle and object pattern recognition models. As vehicle and human related events are very important in security monitoring, the filtering is supported to better optimize the efficiency.
Superior Image Quality
Milesight applies Sony’s high sensitive 1/1.8" sensor whose capacity is approximately twice than that of the conventional ones. Its high sensitivity is designed for capturing saturated and sharp images even in pitch dark environment. Milesight 5G Pro Bullet Plus Camera is coupled with the 3 in 1 Super WDR Pro, 100fps high frame rate and 4K video viewing experience that deliver ultra-high-definition images with no latency despite of the high-speed movement.

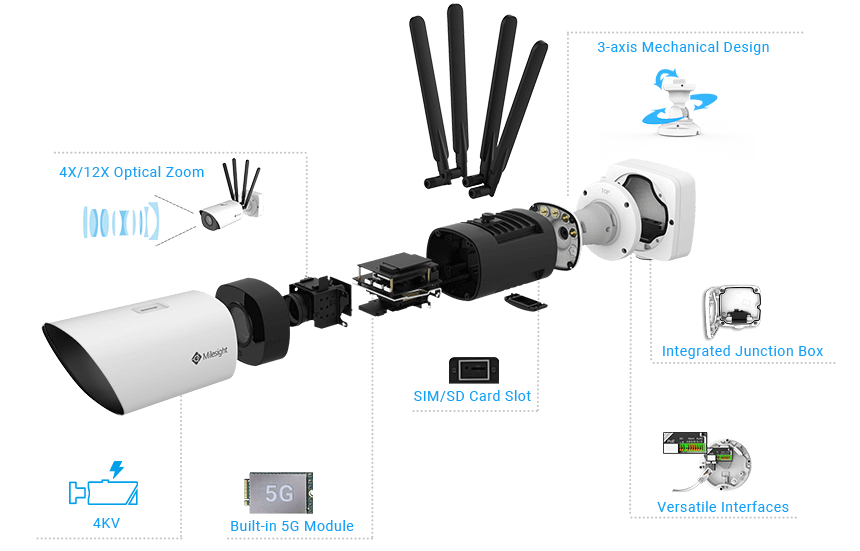

Easy Deployment and Compact Structure
Featuring 4X/12X Optical Zoom Lens, Milesight 5G Pro Bullet Plus Camera achieves a clear visual experience perfectly for long distance. 5G antenna and LoRa antenna are built outside the camera and the 5G module is directly merged inside the camera. By inserting the SIM card, you can monitor in places where network wiring is not convenient. Do not worry if you are in complex environments, versatile interface and integrated junction box ensure installation neat and tidy.
-
Camera Camera Name 2MP 5G AI 12X Pro Bullet Plus Network Camera Image Sensor 1/2.8" Progressive Scan CMOS Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on WDR 140dB Super WDR (Super WDR Pro is optional for T Series) Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 180m S/N >55dB Lens Lens Lens 5.3∼64mm, 12X Optical Zoom Field of View H61°∼H5°/D69°∼D5°/V36°∼V2° Mount Φ14 Focus Control Auto/Manual Aperture F1.6~F2.8 Iris Control Auto Video Video Max. Image Resolution 1920x1080 Primary Stream 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable) Privacy Masking Up to 24 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O 1/1 Alarm I/O 1/1 Mobile Communication Parameter Mobile Communication Parameter Wireless
CommunicationSupport 5G/4G/3G Frequency Bands 5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21(TBD)/ B25/B26/B28/B29/B30/B32/B66/B71
LTE-TDD: B34/B38/39/B40/B41/B42/B48
LAA: B46
WCDMA: B1/B2/B3/B4/B5/B6/B8/B19
GNSS: GPS/GLONASS/BeiDou/Galileo
Wireless
Transmission
SpeedSA: DL 3.3Gbps; UL 250Mbps
NSA: DL 3.4Gbps; UL 200Mbps
LTE: DL 2.0Gbps; UL 150Mbps
WCDMA: DL 42Mbps; UL 5.76Mbps
SIM Card Nano SIM Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/44.1/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support Intelligent
AnalyticsIntelligent
AnalyticsVideo Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed Face Detection Detect and capture faces, get real-time snapshots People Counting&Report Count the number of people entering or exiting, Up to 4 detection areas for regional people counting System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3at)/DC 12V±10% Power Consumption 8W MAX, 14W MAX (With IR on) Weather Proof Up to IP67-rated for Weather-resistant Performance (Only for camera body) Surge Protection 4KV Weight 1608g Dimensions 320mmX134mmX126mm, 320mmX134mmX292mm (With 5G Antennas) Warranty 3/5 Years -
Camera Camera Name 8MP 5G AI 4X Pro Bullet Plus Network Camera Image Sensor 1/1.8" Progressive Scan CMOS Min. Illumination Color: 0.006Lux @F1.2, Color: 0.009Lux @F1.6, B/W: 0Lux with IR on WDR 120dB Super WDR Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 180m S/N >55dB Lens Lens Lens 8∼32mm, 4X Optical Zoom Field of View H44°∼H13°/D51°∼D15°/V25°∼V7° Mount Φ14 Focus Control Auto/Manual Aperture F1.6~F1.7 Iris Control Auto Video Video Max. Image Resolution 3840x2160 Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable) Privacy Masking Up to 24 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O 1/1 Alarm I/O 1/1 Mobile Communication Parameter Mobile Communication Parameter Wireless
CommunicationSupport 5G/4G/3G Frequency Bands 5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21(TBD)/ B25/B26/B28/B29/B30/B32/B66/B71
LTE-TDD: B34/B38/39/B40/B41/B42/B48
LAA: B46
WCDMA: B1/B2/B3/B4/B5/B6/B8/B19
GNSS: GPS/GLONASS/BeiDou/Galileo
Wireless
Transmission
SpeedSA: DL 3.3Gbps; UL 250Mbps
NSA: DL 3.4Gbps; UL 200Mbps
LTE: DL 2.0Gbps; UL 150Mbps
WCDMA: DL 42Mbps; UL 5.76Mbps
SIM Card Nano SIM Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/44.1/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support Intelligent
AnalyticsIntelligent
AnalyticsVideo Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed Face Detection Detect and capture faces, get real-time snapshots People Counting&Report Count the number of people entering or exiting, Up to 4 detection areas for regional people counting System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3at)/DC 12V±10% Power Consumption 8W MAX, 14W MAX (With IR on) Weather Proof Up to IP67-rated for Weather-resistant Performance (Only for camera body) Surge Protection 4KV Weight 1608g Dimensions 320mmX134mmX126mm, 320mmX134mmX292mm (With 5G Antennas) Warranty 3/5 Years -
* Naming Convention
X4/X12 - 4X/12X Optical Zoom
R - High Frame Rate (60fps)
T - High Frame Rate (100fps)
L - License Plate Recognition (LPR)
V - Radar
P - PoE Supported
C - AI Series
