UHD Video Display
Equipped with solid 4K decoding and display capabilities, Milesight 4K H.265 PoE NVR 7000 Series can synchronously decode up to 4-CH 4K UHD and 16-CH 1080P with the finest details to guarantee real-time video monitoring.
-
Multi-video Output
Milesight 4K H.265 PoE NVR 7000 Series supports Multi-video Output in two ways: Independent Outputs enable multiple outputs to display various channels independently, while Synchronous Outputs appoint the same channel to be displayed at different locations synchronously.
-

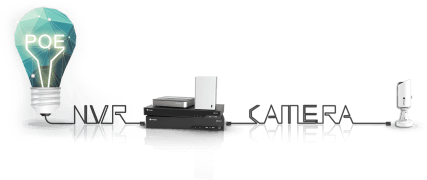

Plug and Play
Milesight 4K H.265 PoE NVR 7000 Series offers a true plug-and-play with the built-in independent PoE switches, where cameras can be easily connected without a lot of network infrastructure work, ensuring you to begin the efficient monitoring in no time.
-
Flexible Storage Options
Flexible storage options including HDD and NAS in Milesight 4K H.265 PoE NVR 7000 Series offer you greater flexibility to address the needs for versatile storage.
-

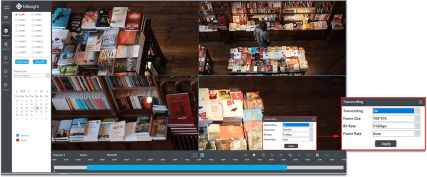

Transcoding
Based on the CPU capabilities, Transcoding guarantees fluid video experience especially for remote playback even in a poor network connection by reducing the stream data via lowering resolution, bit rate, or frame rate.
-
Usability
Milesight 4K H.265 PoE NVR 7000 Series features a range of functions to ensure the easy-to-use system, including Easy Playback, Easy Backup, File Management and Easy Configuration.
-
ANR
As a backup operation, ANR can automatically store video data on the camera storage card when network is disconnected and retransfer the recorded video to NVR after network recovers, guaranteeing a reliable system.
-
RAID 0/1/5/6/10
Preconfigured with industry-standard RAID levels (0/1/5/6/10), Milesight 4K H.265 PoE NVR 7000 Series can configure the system based on the specific redundancy and performance requirements to ensure more reliable storage against data loss.
-
Smart VCA Management
Milesight 4K H.265 PoE NVR 7000 Series supports alarm configurations and event search of Milesight Smart VCA. Once suspicious events detected, the devices can trigger alarms and recordings, helping you improve video surveillance efficiency.
-
Enterprise ANPR Management
Defined as the Enterprise ANPR management system, Milesight 4K H.265 PoE NVR 7000 Series becomes the central management site to easily monitor the traffic, including the real-time preview of the car plates, smart analysis and other more detailed settings.
-
Advanced Functions Management
Milesight 4K H.265 PoE NVR 7000 Series provides you access to Milesight wide range of cameras, ensuring the seamless compatibilities with Milesight advanced functions, including PTZ/Fisheye Auto Tracking, PTZ Manual Tracking, Heat Map and Fisheye Dewarping.
-
POS Integration
The combination of retail transaction data with surveillance videos makes it easy to check goods settlement, miscalculation and missing calculation in the stores, supermarkets and other places, which is helpful to boost customer service and in-store competitive advantage.
-
Versatile Interfaces
Milesight 4K H.265 PoE NVR 7000 Series comes with a whole array of ports such as an HDMI port, a VGA port, 3 USB ports, 16/24 PoE ports, Alarm I/O, Audio I/O and a LAN port, etc. The full set of interfaces provides all necessary features for effective surveillance.
-
Input
Network Video Input16-CH
Bandwidth Requirement160Mbps (Incoming)
160Mbps (Outgoing)Output
HDMI Output1-CH, Resolution: 3840x2160/60Hz, 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
VGA Output1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.
Dual StreamSupport
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback4*(30fps @8MP), 5*(30fps@6MP), 6*(30fps@5MP), 8*(30fps @4MP), 10*(30fps @3MP), 16*(30fps @1080P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio FormatG.711/AAC/G.722/G.726
Storage
SATA4*SATA HDD (3.5”)
CapacityUp to 10TB capacity for each HDD
Disk Array
Array TypeRAID0, RAID1, RAID5, RAID6, RAID10
Record
Synchronous Recording16*5MP
Recording TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Snapshot TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback TypeGeneral Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface1*RJ45 10/100/1000Mbps
USB Interface1*USB 3.0; 2*USB 2.0
Serial Interface1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard
Audio Input/Output1*RCA/1*RCA
Alarm Input16-CH
Alarm Output4-CH

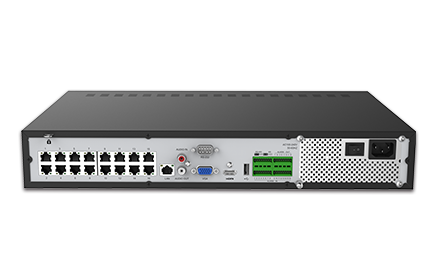

PoE Interface
Interface16*RJ45 10/100Mbps
Power Output≤200W
Supported StandardIEEE 802.3af/at
General
CompatibilityONVIF, API
Advanced FunctionANR
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyAC 100V∼240V 50Hz∼60Hz
Consumption≤15W(Without HDD, without enabling PoE)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions440mm(W)X320mm(D)X66.8mm(H), Rack Mountable Chassis (1.5U Standard)
Weight5.0Kg
Warranty3/5 Years
-
Input
Network Video Input32-CH
Bandwidth Requirement256Mbps or 200Mbps(When RAID is enabled) (Incoming)
256Mbps or 200Mbps(When RAID is enabled) (Outgoing)Output
HDMI Output1-CH, Resolution: 3840x2160/60Hz, 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
VGA Output1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.
Dual StreamSupport
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback4*(30fps @8MP), 5*(30fps@6MP), 6*(30fps@5MP), 8*(30fps @4MP), 10*(30fps @3MP), 16*(30fps @1080P), 32*(30fps @720P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio FormatG.711/AAC/G.722/G.726
Storage
SATA4*SATA HDD (3.5”)
CapacityUp to 10TB capacity for each HDD
Disk Array
Array TypeRAID0, RAID1, RAID5, RAID6, RAID10
Record
Synchronous Recording32*5MP
Recording TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Snapshot TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback TypeGeneral Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface1*RJ45 10/100/1000Mbps
USB Interface1*USB 3.0; 2*USB 2.0
Serial Interface1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard
Audio Input/Output1*RCA/1*RCA
Alarm Input16-CH
Alarm Output4-CH

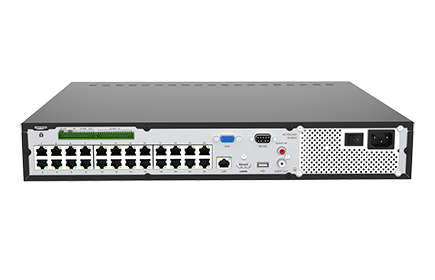

PoE Interface
Interface24*RJ45 10/100Mbps
Power Output≤200W
Supported StandardIEEE 802.3af/at
General
CompatibilityONVIF, API
Advanced FunctionANR
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyAC 100V∼240V 50Hz∼60Hz
Consumption≤22W(Without HDD, without enabling PoE)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions440mm(W)X390mm(D)X66.75mm(H), Rack Mountable Chassis (1.5U Standard)
Weight4.89Kg
Warranty3/5 Years
-
* Naming Convention
U - 4K
P - PoE
T/H - H.265 Compression
