Leading-edge H.265+ Compression
-
Video Content Analysis (VCA)
Milesight VCA with 10 detection modes provides advanced, accurate smart video analysis for Milesight network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.
-

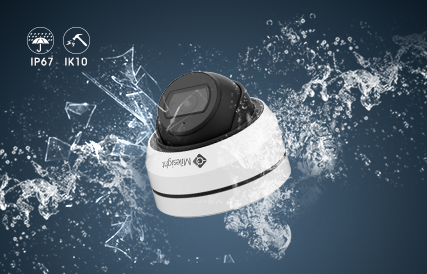

IP67&IK10
Sharply contrasting to the mini size, the AF Motorized Mini Dome Network Camera features the industry leading IP67-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.
-
3X Optical Zoom
The 3X Optical Zoom can zoom in to distant subjects while still maintaining the clarity, delivering high quality video over the entire image.
-

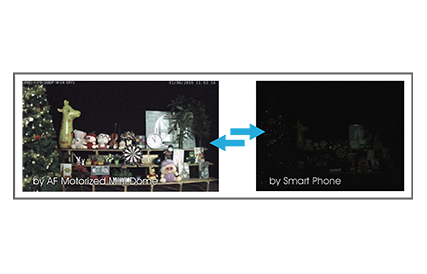

0.002Lux Ultra Low-light
The AF Motorized Mini Dome Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
-
140dB Super WDR
Milesight’s sensor-based WDR technology allows the AF Motorized Mini Dome Network Camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.
-
Smart IR II Technology
To maximize the IR performance, the AF Motorized Mini Dome Network Camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees superb IR performance with the combination of one High Beam and two Low Beams and adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti-reflection panel which is well designed for better IR effect.
-
3-Axis Mechanical Design
The AF Motorized Mini Dome Network Camera features 3-axis mechanical design for fast and easy adjustment of the camera’s viewing angle, allowing you to position the camera precisely.
-

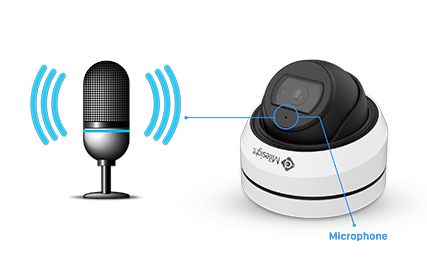

Advanced Built-in Microphone
With the built-in microphone which adopts the advanced codec, the AF Motorized Mini Dome Network Camera is able to provide clearer voice. It is worth mentioning that Milesight uses PTFE Membrane to safeguard the built-in microphone, ensuring IP67-rated weather proof capability for reliable performance.
-

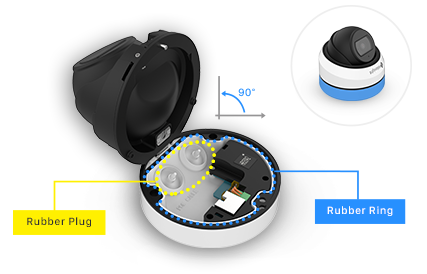

Integrated Junction Box
The well-designed Integrated Junction Box especially the Clamshell structure, ensures efficient and simple installations. It enlarges the space to make cable connection neat and as easy as a piece of cake. With the help of the rubber plugs and rubber ring which guarantee IP67-rated weather-proof capability, the Junction box is able to offer stable operation in any tough conditions.
-

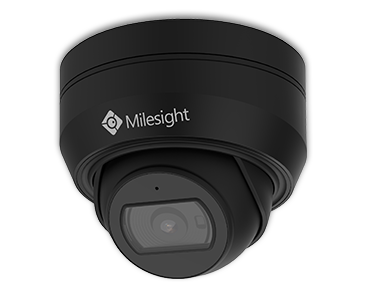

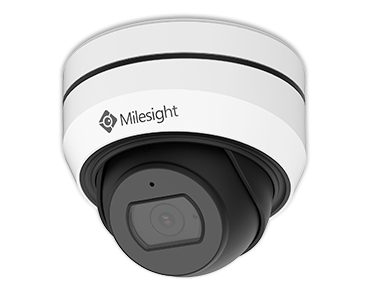

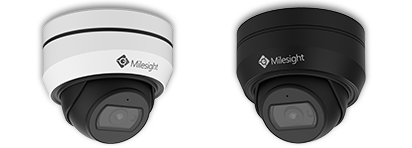

Two Colors Available
Available in White and Black, the H.265+ AF Motorized Mini Dome Network Camera provides more choices for your preference.
-

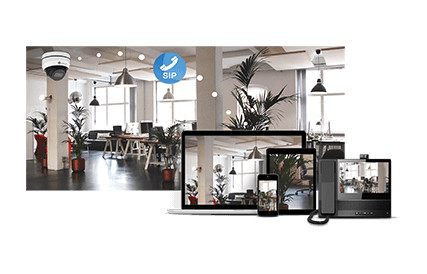

SIP/VoIP Support
Milesight H.265+ AF Motorized Mini Dome Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
-
Camera
Name2MP H.265 AF Motorized Mini Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.8, B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 35m
S/N>55dB
Lens
Lens2.8∼8.4mm, 3X Optical Zoom
Field of ViewH111°∼H48°/D130°∼D55°/V60°∼V27°
Focus ControlAuto/Manual
Minimum Working Distance200∼500mm(Wide-Tele)
ApertureF1.8∼F2.7
Iris ControlAuto
Video
Max. Image Resolution1920x1080
Frame Rate30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioN/A
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio InterfaceBuilt-in Microphone
Alarm I/O1/1(Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption3.6W MAX, 6W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ108mmX96.5mm
Weight620g
Warranty3/5 Years
-
Camera
Name5MP H.265 AF Motorized Mini Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, Color: 0.008Lux @F1.8, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 35m
S/N>55dB
Lens
Lens2.8∼8.4mm, 3X Optical Zoom
Field of ViewH101°∼H42°/D129°∼D53°/V74°∼V31°
Focus ControlAuto/Manual
Minimum Working Distance200∼500mm(Wide-Tele)
ApertureF1.8∼F2.7
Iris ControlAuto
Video
Max. Image Resolution2592x1944
Frame Rate20fps@(2592x1944), 30fps@(2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16KHz
Audio Bit Rate16~96kbps
Two-way AudioN/A
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio InterfaceBuilt-in Microphone
Alarm I/O1/1(Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption3.6W MAX, 6W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ108mmX96.5mm
Weight620g
Warranty3/5 Years
-
* Naming Convention
E - Enterprise Edition
P - PoE Supported
B - H.265 Compression
