Leading-edge H.265+ Compression

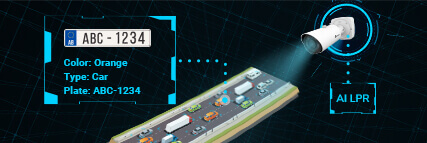

AI-powered LPR Algorithm
Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.

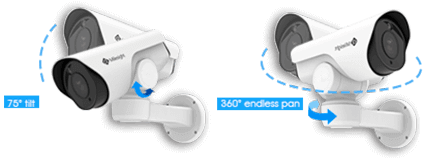

Flexible Pan, Tilt and Zoom Tasks
Milesight AI LPR 12X Mini PTZ Bullet Network Camera offers the ability to fast and precisely rotate on a 360° and 75° tilt to survey a wide range of territory. The user can easily set up 300 preset positions and up to 8 patrol routes and maximum 4 patterns of the manual operation paths. Moreover, the user is able to schedule specific PTZ tasks by date and time.

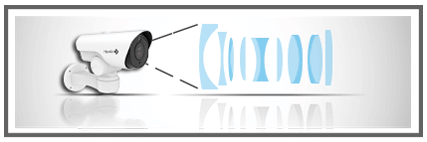

12X Optical Zoom
The 12X Optical Zoom can zoom up to distant subjects while still maintaining the clarity, delivering high quality video over the entire zoom image.
With the industry leading frame rate reaching 100fps, the AI LPR 12X Mini PTZ Bullet Network Camera can easily catch images with no latency despite of the high-speed movement.
0.002Lux Ultra Low-light
The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
3 in 1 Super WDR Pro - 140dB
Milesight upgraded 3 in 1 Super WDR Pro outputs three frames each line, which is able to bring more details especially moving subjects. What’s more, it greatly improves image quality for reducing smear and noisy points. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.

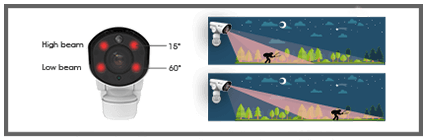

Smart IR II Technology
The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 140m. Two LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.

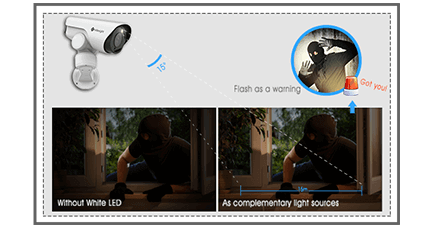

Intelligent White LED
With the 15° viewing angle, the White LED can be turned on as a supplementary light source and warning signal at night. Its brightness can be adjusted on the basis of the zoom level to satisfy the actual project requirement.

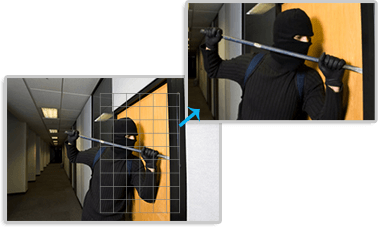

Smart PTZ Motion Detection
The Smart PTZ Motion Detection function enables the user to monitor specified area clearly in a timely manner. When there is motion detected in a target area, Milesight AI LPR 12X Mini PTZ Bullet Network Camera will pan and tilt to the position of motion detected area automatically. Then zoom in to provide clear image for a duration of time. If the duration expires, the camera will resume its previous monitoring position and zoom level.

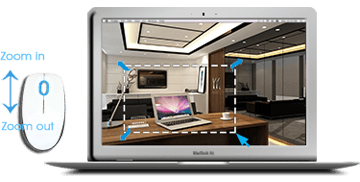

Milesight AI LPR 12X Mini PTZ Bullet Network Camera can be easily controlled via the use of a mouse which is truly user-friendly. Left click on any position of interest in the video image, and the position will right become the center of the current monitoring area. Use the left button of a mouse to drag a rectangle area, then the area will become the central area of monitoring with automatic zoom in or zoom out action. Rolling the mouse wheel up and down, the video image will be zoomed in and zoomed out immediately.

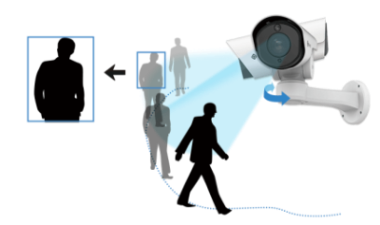

PTZ Auto Tracking
Once PTZ Auto Tracking function enabled, Milesight PTZ cameras could leverage motor mechanism to perform Pan/Tilt/Zoom to track the moving object automatically and adjust zoom status flexibly according to the object distance with the powerful optical zoom capability. Therefore, the target would be shown in the frame center and be zoomed to a proper size, achieving the smart, reliable and real-time video surveillance without any critical details missing.

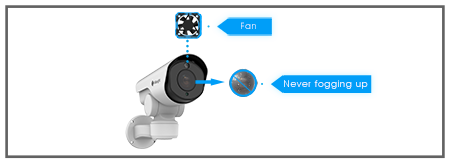

Milesight AI LPR 12X Mini PTZ Bullet Network Camera creatively realizes the comprehensive defog performance both in hardware of a smart fan and software of image defogging algorithm, enabling the camera to avoid image fogging problems. Besides, the smart fan ensures excellent heat dissipation capability, so that it can work stably under the long-term operation circumstances.

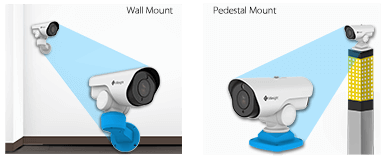

Flexible Installation Modes
With two installation modes of Wall Mount and Pedestal Mount, the PTZ camera, to a greater extent, meets different installation needs for different application scenarios. The innovative modes allow to achieve its best values on the basis of customers’ requirements, making the PTZ camera an unparalleled choice.
Integrated Junction Box(Optional)
Flexible installation is ensured as AI LPR 12X Mini PTZ Bullet Network Camera is equipped with integrated cable management box. The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake. The IP66-rated housing shields the sensitive electronics from dust and water, which guarantees the stable operation in any tough conditions.
Milesight AI LPR 12X Mini PTZ Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Name2MP AI LPR 12X Mini PTZ Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR140dB Super WDR (Super WDR Pro is optional for T Series)
Focal Length5.3∼64mm, 12X Optical Zoom
Zoom SpeedApprox 4s (Wide-Tele)
Field of ViewH61°∼H5°/D69°∼D5°/V36°∼V2°
Minimum Working Distance1000/1500mm(Wide/Tele)
Pan Range/Pan Speed360° endless / Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed-45°∼30° / Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
Patrol8 Patrols, up to 48 presets each patrol
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Irradiation DistanceUp to 140m
Max. Vehicle Speed200km/h
CoverageSupport simultaneous detection of 4 regions
White/Black ListUp to 1000 records inside the camera
Smart Traffic DetectionLicense Plate Recognition, Plate Type Classification, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition, Vehicle Direction Detection
Max. Image Resolution1920x1080
Primary Stream60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Ethernet1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionAuto Tracking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Motion Detection, Network Disconnection, External Input (Optional), Audio Alarm (Optional), etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output (Optional), SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
Power SupplyPoE (802.3at) (Optional) / DC 12V/2A±10%
Power Consumption15W MAX, 20W MAX(With IR on)
Weather ProofUp to IP66-rated for weather-resistant performance
Dimensions160mmX273.5mmX210mm(Wall Mount) / 218mmX120mmX172mm(Pedestal Mount)
Weight2Kg(Wall Mount) / 1.8Kg(Pedestal Mount)
Warranty2 Years / 3 Years(Optional)
* Naming Convention
Q - High Frame Rate (120fps)
R - High Frame Rate (60fps)
E - Enterprise Edition
L - License Plate Recognition (LPR)
P - PoE Supported
B - H.265 Compression
