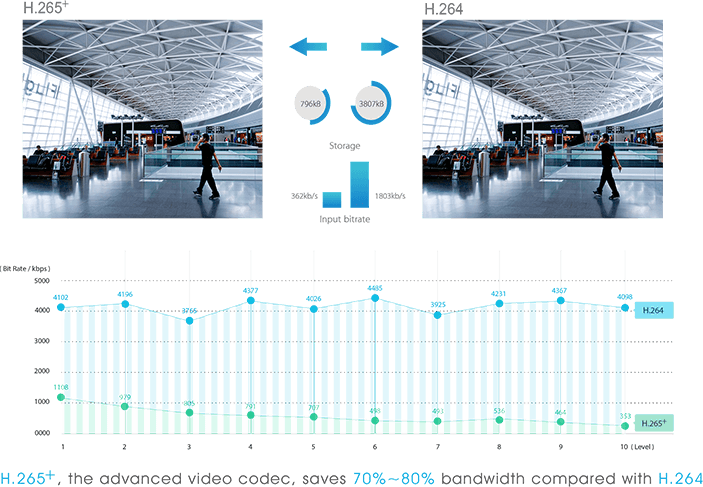

Leading-edge H.265+ Compression

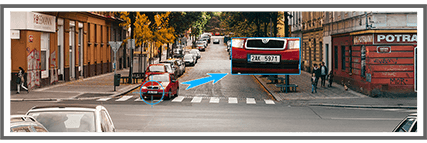

License Plate Recognition (LPR/ANPR)

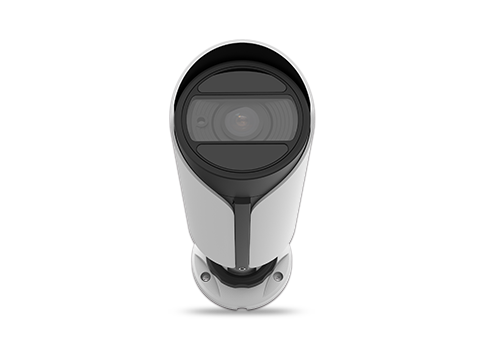

Embedded in the LPR Vandal-proof Motorized Mini Bullet Network Camera, the LPR allows the camera to capture real-time license plate in both the highest levels of glare and the darkest hours of the night.
3 in 1 Super WDR Pro - 140dB
Milesight upgraded 3 in 1 Super WDR Pro outputs three frames each line, which is able to bring more details especially moving subjects. What’s more, it greatly improves image quality for reducing smear and noisy points. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.
With the industry leading frame rate reaching 120fps, the LPR Vandal-proof Motorized Mini Bullet Network Camera can easily catch images with no latency despite of the high-speed movement.

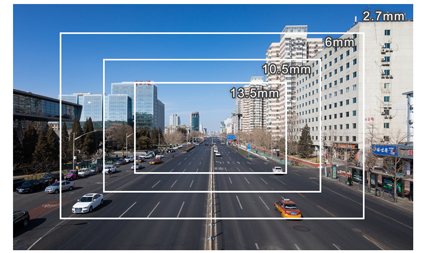

Advanced Motorized Lens
With flexible motorized lens (2.7~13.5mm), the camera is able to capture distant subjects rather than fixing on the specific scene with no flexibility. The ultra wide angle lens brings wider field of view to broaden horizons, leaving the narrow view experiences behind.
Sharply contrasting to the mini size, the LPR Vandal-proof Motorized Mini Bullet Network Camera features the industry leading IP67-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.

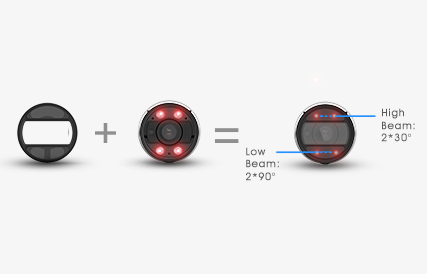

Smart IR II Technology
To maximize the IR performance, the LPR Vandal-proof Motorized Mini Bullet Network Camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees superb IR performance with the combination of two High Beams and two Low Beams and adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti-reflection panel which is well designed for better IR effect.
0.002Lux Ultra Low-light
the LPR Vandal-proof Motorized Mini Bullet Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
Unique Structure Design
The camera features 3-axis mechanical design for fast and easy adjustment of the camera’s viewing angle, allowing to position the camera precisely. Another highlight of the structure lies in the mounting bracket which is able to conceal the cables, offering a well-rounded protection of the cable from any water, dust or shock damages.
Integrated Junction Box(optional)
The well-designed Integrated Junction Box especially the Clamshell structure, ensures efficient and simple installations. It enlarges the space to make cable connection neat and as easy as a piece of cake. With the help of the rubber plugs and rubber ring which guarantee IP67-rated weather-proof capability, the Integrated Junction Box is able to offer stable operation in any tough conditions.

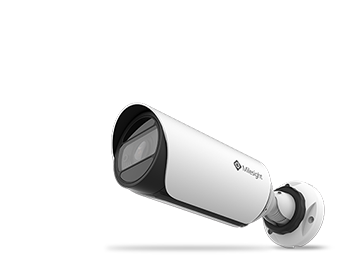

Milesight LPR H.265+ Vandal-proof Motorized Mini Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Note: This product has been upgraded to AI version.Learn More
Name2MP LPR H.265 Vandal-proof Motorized Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR140dB Super WDR (Super WDR Pro is optional for Q Series)
IR DistanceUp to 50m
LensMotorized 2.7∼13.5mm/3.0∼10.5mm/7∼22mm @F1.4, P-Iris(Optional)
Field of ViewH111°∼H34°/D130°∼D39°/V60°∼V19°(2.7∼13.5mm), H100°∼H33°/D115°∼D38°/V54°∼V18°(3∼10.5mm), H42°∼H17°/D48°∼D19°/V24°∼V9°(7∼22mm)
(Optional for I Series)Auto/Manual
Max. Vehicle Speed120km/h
CoverageSupport simultaneous detection of 4 regions
Vehicle DetectionSupport vehicle direction detection
White/Black ListUp to 1000 records inside the camera
Max. Image Resolution1920x1080
Primary Stream120fps@(1920x1080)(Optional for Q Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Ethernet1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Sampling Rate8/16/32/48KHz
Audio Bit Rate16~256kbps
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Motion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
License Plate RecognitionSupport
System CompatibilityONVIF Profile G & Q & S & T, API
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption8W MAX, 11.5W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
* Naming Convention
Q - High Frame Rate (120fps)
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported (Optional)
L - License Plate Recognition (LPR)
P - PoE Supported
B - H.265 Compression
Milesight LPR H.265 Vandal-proof Motorized Mini Bullet Network Camera Datasheet_en.pdf
Milesight Network Camera User Manual.pdf
Milesight Network Camera Quick Start Guide.pdf
Milesight LPR Supported Region List.pdf
