AI Video Analytics
Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.
-
People Counting
Milesight People Counting Technology provides high accuracy and real-time data based on AI algorithm, with statistic reports for further analysis. It is a reliable and efficient way to understand the flow movement and make fast decision on security management. By analyzing the data and trend, you can also identify the peak of occupancy and increase the operational efficiency of the business.
-
Face Detection
The intelligent Face Detection brings security surveillance to a new level. Milesight AI Camera Series detects human faces in the monitoring scene and captures the snapshots. This function greatly enhances the monitoring efficiency by screening out the useful facial information. With the snapshots, the people in concern can be quickly located, which benefits the large population related industries such as public security, access control and business management.
-
Leading-edge H.265+ Compression
-

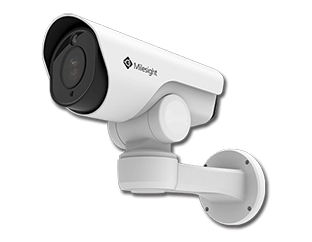

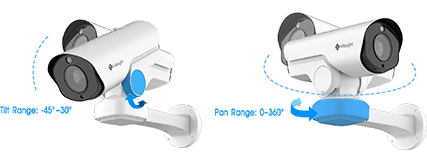

Flexible Pan, Tilt and Zoom Tasks
Milesight AI Mini PTZ Bullet Plus offers the ability to fast and precisely rotate on a 360° pan and 75° tilt to survey a wide range of territory. The user can easily set up to 300 preset positions and up to 8 patrol routes and maximum 4 patterns of the manual operation paths. Moreover, the user is able to schedule specific PTZ tasks by date and time.
-

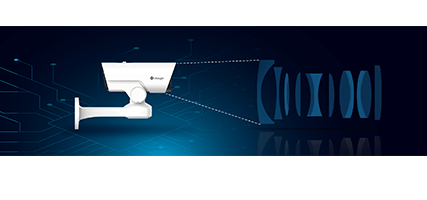

5X/20X/23X Optical Zoom
The 5X/20X/23X Optical Zoom can zoom up to distant objects while still maintaining the clarity, delivering high quality video over the entire zoom image.
-
0.001Lux Ultra Low-light
The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.001Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
-

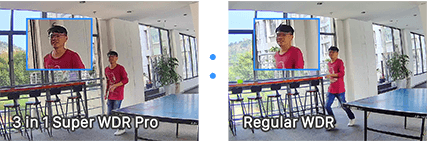

3 in 1 Super WDR Pro - 140dB
Milesight upgraded 3 in 1 Super WDR Pro outputs three frames each line, which is able to bring more details especially moving subjects. What’s more, it greatly improves image quality for reducing smear and noisy points. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.
-

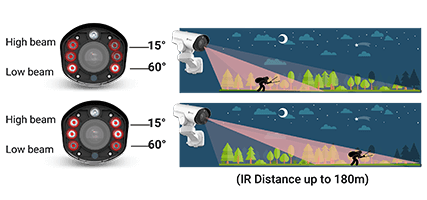

Smart IR II Technology
The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 180m. Two LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.
-

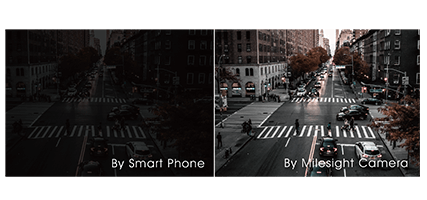

1/1.8" STARVIS Starlight Sensor
Adopting the top-notch Sony STARVIS Starlight Sensor, Milesight Network Camera improves every aspect of image quality. The high sensitive sensor allows the camera to achieve excellent video quality in 4K with better low-light sensitivity.
-
4K Video Viewing Experience
Milesight AI Mini PTZ Bullet Plus Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD) at 30 frames per second (fps), providing users with ultra-high-definition video viewing experience.
-
100fps
With the industry leading frame rate reaching 100fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.
-

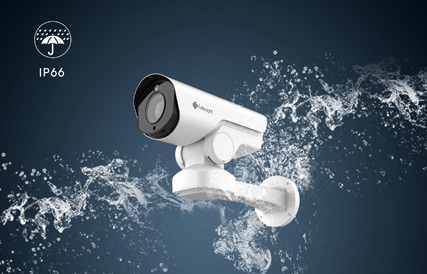

IP66
Supporting industry-leading IP66-rated weather proofing, the AI Mini PTZ Bullet Plus Network Camera is well protected against adverse impacts to ensure the performance.
-

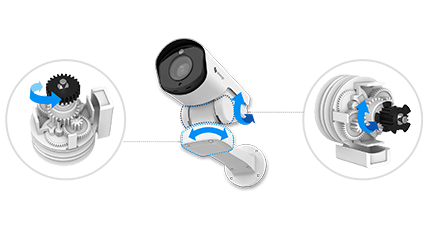

New-generation PTZ Motor
New generation motor with sophisticate planetary gear drive design is adopted to ensure a steady turn, which guarantees its robust performance, providing a reliable pan tilt operation.
-

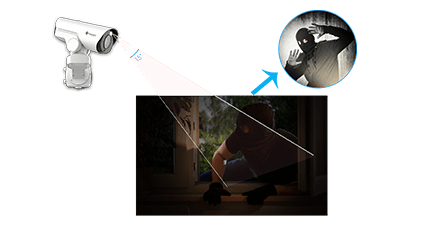

Intelligent White LED
With the 15° viewing angle, the White LED can be turned on as a supplementary light source and warning signal at night. Its brightness can be adjusted on the basis of the zoom level to satisfy the actual project requirement.
-

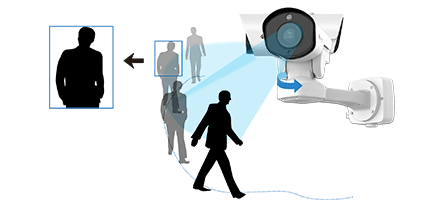

PTZ Auto Tracking
Once PTZ Auto Tracking function enabled, Milesight PTZ cameras could leverage motor mechanism to perform Pan/Tilt/Zoom to track the moving object automatically and adjust zoom status flexibly according to the object distance with the powerful optical zoom capability. Therefore, the target would be shown in the frame center and be zoomed to a proper size, achieving the smart, reliable and real-time video surveillance without any critical details missing.
-

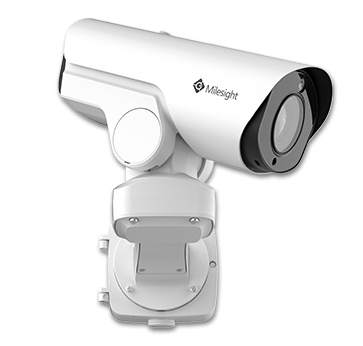

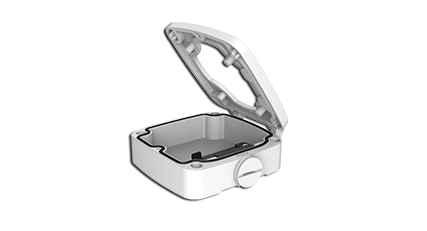

Integrated Junction Box(Optional)
Flexible installation is ensured as AI Mini PTZ Bullet Plus is equipped with integrated cable management box. The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake. The IP66-rated housing shields the sensitive electronics from dust and water, which guarantees the stable operation in any tough conditions.
-
SIP/VoIP Support
Milesight AI Mini PTZ Bullet Plus features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
- MS-C2867-X20TPC
- MS-C2967-X23R(T)PC
- MS-C5367-X23PC
- MS-C8267-X5PC
- MS-C8267-X20PC
- MS-C2867-X20TPA
- MS-C2967-X23TPA
- MS-C8267-X5PA
- MS-C8267-X20PA
-
Camera
Name2MP AI 20X Mini PTZ Bullet Plus Network Camera
Image Sensor1/2" Progressive Scan CMOS
Min. IlluminationColor: 0.001Lux @F1.2, Color: 0.002Lux @F1.6, B/W: 0Lux with IR on
WDR140dB Super WDR Pro
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
Digital Zoom16X
S/N>55dB
Lens
Focal Length6.4∼128mm, 20X Optical Zoom
Zoom SpeedApprox 5s(Wide-Tele)
Field of ViewH60°∼H3°/D67°∼D4°/V37°∼V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/2000mm (Wide/Tele)
ApertureF1.6∼F4.0
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed-45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Auto TrackingSupport
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR
Irradiation DistanceUp to 180m
Video
Max. Image Resolution1920x1080
Frame Rate60Hz/50Hz: 100fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face DetectionDetect and capture faces, get real-time snapshots
People Counting&ReportCount the number of people entering or exiting, Up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/2A±10%
Power Consumption12W MAX, 23W MAX(With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Dimensions110mmX337mmX220mm
Weight2.9Kg
Warranty2 Years/3 Years(Optional)
-
Camera
Name2MP AI 23X Mini PTZ Bullet Plus Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.5, B/W: 0Lux with IR on
WDR140dB Super WDR (Super WDR Pro is optional for T Series)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
Digital Zoom16X
S/N>55dB
Lens
Focal Length5∼117mm, 23X Optical Zoom
Zoom SpeedApprox 6s(Wide-Tele)
Field of ViewH60°∼H3°/D69°∼D4°/V35°∼V2°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/1500mm (Wide/Tele)
ApertureF1.5∼F3.5
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed-45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Auto TrackingSupport
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR
Irradiation DistanceUp to 180m
Video
Max. Image Resolution1920x1080
Frame Rate60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent
AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face DetectionDetect and capture faces, get real-time snapshots
People Counting& ReportCount the number of people entering or exiting, Up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/2A±10%
Power Consumption12W MAX, 23W MAX(With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Dimensions110mmX337mmX220mm
Weight2.9Kg
Warranty2 Years/3 Years(Optional)
-
Camera
Name5MP AI 23X Mini PTZ Bullet Plus Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, Color: 0.008Lux @F1.5, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
Digital Zoom16X
S/N>55dB
Lens
Focal Length5∼117mm, 23X Optical Zoom
Zoom SpeedApprox 6s(Wide-Tele)
Field of ViewH55°∼H3°/D68°∼D4°/V42°∼V2°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/1500mm (Wide/Tele)
ApertureF1.5∼F3.5
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed-45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Auto TrackingSupport
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR
Irradiation DistanceUp to 180m
Video
Max. Image Resolution2592x1944
Frame Rate60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent
AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face DetectionDetect and capture faces, get real-time snapshots
People Counting& ReportCount the number of people entering or exiting, Up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/2A±10%
Power Consumption12W MAX, 23W MAX(With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Dimensions110mmX337mmX220mm
Weight2.9Kg
Warranty2 Years/3 Years(Optional)
-
Camera
Name4K AI 5X Mini PTZ Bullet Plus Network Camera
Image Sensor1/1.8" Progressive Scan CMOS
Min. IlluminationColor: 0.006Lux @F1.2, Color: 0.009Lux @F1.7, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
Digital Zoom16X
S/N>55dB
Lens
Focal Length11∼55mm, 5X Optical Zoom
Zoom SpeedApprox 3.5s(Wide-Tele)
Field of ViewH36°∼H8°/D41°∼D9°/V21°∼V5°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/1500mm (Wide/Tele)
ApertureF1.7∼F2.1
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed-45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Auto TrackingSupport
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR
Irradiation DistanceUp to 180m
Video
Max. Image Resolution3840x2160
Frame Rate60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent
AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face DetectionDetect and capture faces, get real-time snapshots
People Counting& ReportCount the number of people entering or exiting, Up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/2A±10%
Power Consumption13W MAX, 24W MAX(With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Dimensions110mmX337mmX220mm
Weight2.9Kg
Warranty2 Years/3 Years(Optional)
-
Camera
Name4K AI 20X Mini PTZ Bullet Plus Network Camera
Image Sensor1/1.8" Progressive Scan CMOS
Min. IlluminationColor: 0.006Lux @F1.2, Color: 0.009Lux @F1.6, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
Digital Zoom16X
S/N>55dB
Lens
Focal Length6.4∼128mm, 20X Optical Zoom
Zoom SpeedApprox 5s(Wide-Tele)
Field of ViewH60°∼H3°/D67°∼D4°/V37°∼V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/2000mm (Wide/Tele)
ApertureF1.6∼F4.0
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed-45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Auto TrackingSupport
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR
Irradiation DistanceUp to 180m
Video
Max. Image Resolution3840x2160
Frame Rate60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent
AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face DetectionDetect and capture faces, get real-time snapshots
People Counting& ReportCount the number of people entering or exiting, Up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/2A±10%
Power Consumption13W MAX, 24W MAX(With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Dimensions110mmX337mmX220mm
Weight2.9Kg
Warranty2 Years/3 Years(Optional)
-
Camera
Name2MP AI 20X Mini PTZ Bullet Plus Network Camera
Image Sensor1/2" Progressive Scan CMOS
Min. IlluminationColor: 0.001Lux @F1.2, Color: 0.002Lux @F1.6, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
Digital Zoom16X
S/N>55dB
Lens
Focal Length6.4∼128mm, 20X Optical Zoom
Zoom SpeedApprox 5s(Wide-Tele)
Field of ViewH60°∼H3°/D67°∼D4°/V37°∼V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/2000mm (Wide/Tele)
ApertureF1.6∼F4.0
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed-45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR
Irradiation DistanceUp to 180m
Video
Max. Image Resolution1920x1080
Frame Rate60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting&ReportCount the number of people entering or exiting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/2A±10%
Power Consumption12W MAX, 23W MAX(With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Dimensions110mmX337mmX220mm
Weight2.9Kg
Warranty2 Years/3 Years(Optional)
-
Camera
Name2MP AI 23X Mini PTZ Bullet Plus Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.5, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
Digital Zoom16X
S/N>55dB
Lens
Focal Length5∼117mm, 23X Optical Zoom
Zoom SpeedApprox 6s(Wide-Tele)
Field of ViewH60°∼H3°/D69°∼D4°/V35°∼V2°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/1500mm (Wide/Tele)
ApertureF1.5∼F3.5
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed-45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR
Irradiation DistanceUp to 180m
Video
Max. Image Resolution1920x1080
Frame Rate60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent
AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/2A±10%
Power Consumption12W MAX, 23W MAX(With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Dimensions110mmX337mmX220mm
Weight2.9Kg
Warranty2 Years/3 Years(Optional)
-
Camera
Name4K AI 5X Mini PTZ Bullet Plus Network Camera
Image Sensor1/1.8" Progressive Scan CMOS
Min. IlluminationColor: 0.006Lux @F1.2, Color: 0.009Lux @F1.7, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
Digital Zoom16X
S/N>55dB
Lens
Focal Length11∼55mm, 5X Optical Zoom
Zoom SpeedApprox 3.5s(Wide-Tele)
Field of ViewH36°∼H8°/D41°∼D9°/V21°∼V5°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/1500mm (Wide/Tele)
ApertureF1.7∼F2.1
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed-45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR
Irradiation DistanceUp to 180m
Video
Max. Image Resolution3840x2160
Frame Rate60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent
AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/2A±10%
Power Consumption13W MAX, 24W MAX(With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Dimensions110mmX337mmX220mm
Weight2.9Kg
Warranty2 Years/3 Years(Optional)
-
Camera

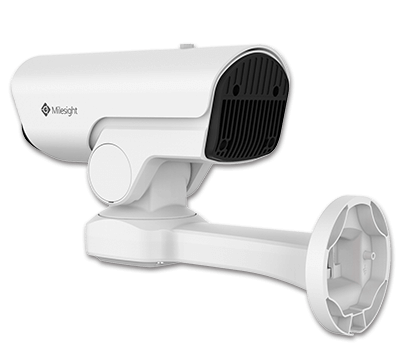

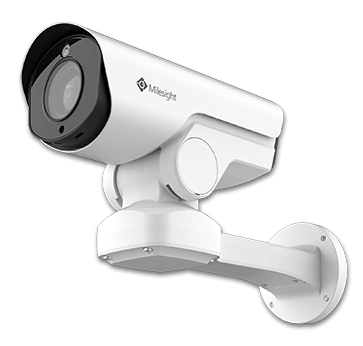

Name4K AI 20X Mini PTZ Bullet Plus Network Camera
Image Sensor1/1.8" Progressive Scan CMOS
Min. IlluminationColor: 0.006Lux @F1.2, Color: 0.009Lux @F1.6, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
Digital Zoom16X
S/N>55dB
Lens
Focal Length6.4∼128mm, 20X Optical Zoom
Zoom SpeedApprox 5s(Wide-Tele)
Field of ViewH60°∼H3°/D67°∼D4°/V37°∼V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/2000mm (Wide/Tele)
ApertureF1.6∼F4.0
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed-45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR
Irradiation DistanceUp to 180m
Video
Max. Image Resolution3840x2160
Frame Rate60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent
AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/2A±10%
Power Consumption13W MAX, 24W MAX(With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Dimensions110mmX337mmX220mm
Weight2.9Kg
Warranty2 Years/3 Years(Optional)
-
* Naming Convention
H - 30fps@5MP Series
R - High Frame Rate (60fps)
E - Enterprise Edition
P - PoE Supported
B - H.265 Compression
Milesight AI 5X/20X/23X Mini PTZ Bullet Plus Network Camera Datasheet_en.pdf
A Milesight Technology Moment_ White LED.pdf
A Milesight Technology Moment_Smart IR II Technology.pdf
A Milesight Technology Moment_Junction Box.pdf
Milesight PTZ Network Camera User Manual.pdf
Milesight Network Camera Quick Start Guide.pdf
