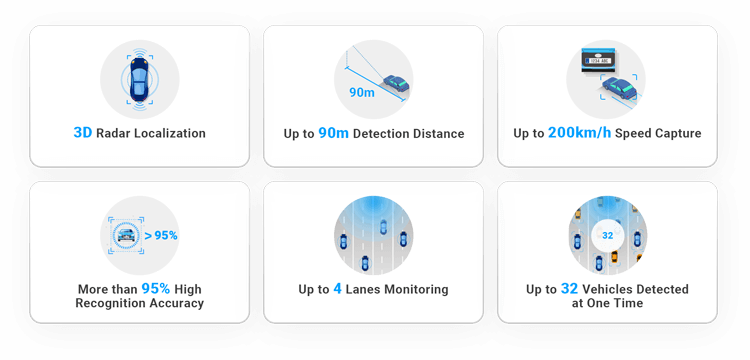

Advanced 3D Radar Technology
Radar is a detection technology that uses radio waves to determine the velocity, range, or angle of objects. The Milesight 3D radar can locate the vehicle position and direction with high accuracy. Verified by 3D radar and AI-powered LPR algorithm, the Radar AI LPR 4X/12X Pro Bullet Plus Network Camera can precisely provide real-time information of detection distance, speed capture and flow control, greatly optimizing traffic monitoring, and ensuring the safety of public transport.
Intelligent AI-powered LPR Algorithm
Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically. The Milesight Radar AI LPR 4X/12X Pro Bullet Plus Network Camera can not only recognize vehicle plates in real time, but also identify more vehicle features, like vehicle type, color, etc., generating reliable traffic insights to improve safety and mobility.

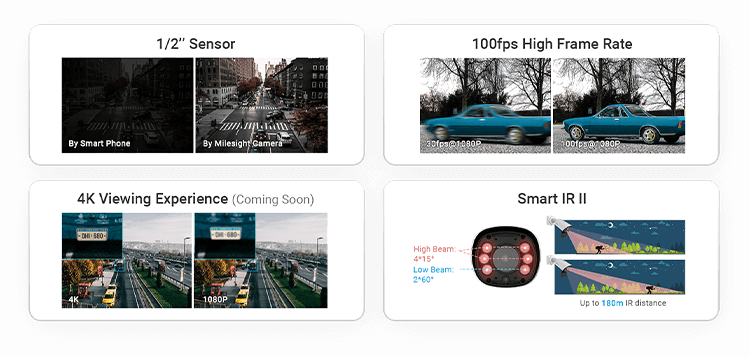

Superior Image Quality
Milesight applies Sony’s high sensitive 1/2’’ sensor whose capacity is approximately twice than that of the conventional ones. Its high sensitivity is designed for capturing saturated and sharp images even in pitch dark environment. The Milesight Radar AI LPR 4X/12X Pro Bullet Plus Network Camera is coupled with the 100fps high frame rate and 4K video viewing experience that deliver ultra-high-definition images with no latency despite of the high-speed movement.

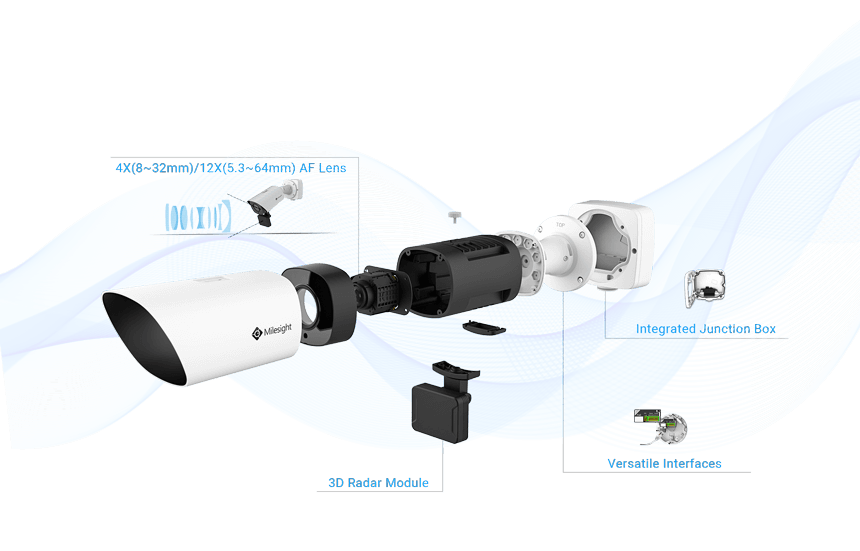

Easy Deployment and Compact Structure
Featuring 4X/12X Auto Focus Lens, the Milesight Radar AI LPR 4X/12X Pro Bullet Plus Network Camera achieves a clear visual experience perfectly for long distance. As an all-in-one 3D radar camera, the radar module is directly integrated in the camera, which is easy to deploy for the users. Do not worry if you are in complex environments, the well-designed integrated junction box and versatile interfaces ensure installation efficiency.
-
Camera Camera Name 2MP Radar AI LPR 4X Pro Bullet Network Camera Image Sensor 1/2" Progressive Scan CMOS Min. Illumination Color: 0.001Lux @F1.2, Color: 0.002Lux @F1.4, B/W: 0Lux with IR on WDR 140dB Super WDR (Super WDR Pro is optional for T Series) Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 180m S/N >55dB Lens Lens Lens 8∼32mm, 4X Optical Zoom Field of View H44°∼H13°/D51°∼D15°/V25°∼V7° Mount Φ14 Focus Control Auto/Manual Aperture F1.6~F1.7 Iris Control Auto LPR LPR Max. Vehicle Speed 200km/h Recognition Accuracy >95% Coverage Support simultaneous detection of 4 regions White/Black List Up to 1000 records inside the camera Smart Traffic Detection License Plate Recognition, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition, Vehicle Direction Detection, Speed Detection Radar Radar Working Frequency 60GHz, 61~62GHz Capture Rate >99% (Traffic jam >95%) Lane Coverage 1~4 Lanes (Recognition ≥95% individually） Tracking Target Up to 32 Speed Detection Range ±5km/h~±200km/h Speed Detection Accuracy ±0.36km/h Detection Distance Up to 90m Distance Detection Accuracy ±0.4m Angle Measurement Accuracy ±0.5° Installation Height 2~7m Video Video Max. Image Resolution 1920x1080 Frame Rate 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576); 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180); 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180); 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable) Privacy Masking Up to 24 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O 1/1 Alarm I/O 1/1 Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/44.1/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3at)/DC 12V±10% Power Consumption 8W MAX, 14W MAX (With IR on) Weather Proof Up to IP67-rated for weather-resistant performance Surge Protection 4KV Weight 1445.8g/ 1623g (With Radar module) Dimensions 320mmX134mmX126mm/ 320mmX134mmX171mm (With Radar module) Warranty 3/5 Years -
Camera Camera Name 2MP Radar AI LPR 12X Pro Bullet Network Camera Image Sensor 1/2.8" Progressive Scan CMOS Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on WDR 140dB Super WDR (Super WDR Pro is optional for T Series) Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 180m S/N >55dB Lens Lens Lens 5.3∼64mm, 12X Optical Zoom Field of View H61°∼H5°/D69°∼D5°/V36°∼V2° Mount Φ14 Focus Control Auto/Manual Aperture F1.6~F2.8 Iris Control Auto LPR LPR Max. Vehicle Speed 200km/h Recognition Accuracy >95% Coverage Support simultaneous detection of 4 regions White/Black List Up to 1000 records inside the camera Smart Traffic Detection License Plate Recognition, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition, Vehicle Direction Detection, Speed Detection Radar Radar Working Frequency 60GHz, 61~62GHz Capture Rate >99% (Traffic jam >95%) Lane Coverage 1~4 Lanes (Recognition ≥95% individually） Tracking Target Up to 32 Speed Detection Range ±5km/h~±200km/h Speed Detection Accuracy ±0.36km/h Detection Distance Up to 90m Distance Detection Accuracy ±0.4m Angle Measurement Accuracy ±0.5° Installation Height 2~7m Video Video Max. Image Resolution 1920x1080 Frame Rate 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576); 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180); 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180); 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable) Privacy Masking Up to 24 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O 1/1 Alarm I/O 1/1 Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/44.1/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3at)/DC 12V±10% Power Consumption 8W MAX, 14W MAX (With IR on) Weather Proof Up to IP67-rated for weather-resistant performance Surge Protection 4KV Weight 1447g/ 1623g (With Radar module) Dimensions 320mmX134mmX126mm/ 320mmX134mmX171mm (With Radar module) Warranty 3/5 Years -
* Naming Convention
X4/X12 - 4X/12X Optical Zoom
R - High Frame Rate (60fps)
T - High Frame Rate (100fps)
L - License Plate Recognition (LPR)
V - Radar
P - PoE Supported
C - AI Series
