Leading-edge H.265+ Compression
-
Video Content Analysis (VCA)
Milesight VCA with 10 detection modes provides advanced, accurate smart video analysis for Milesight network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.
-
0.002Lux Ultra Low-light
The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
-
140dB Super WDR
Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.
-

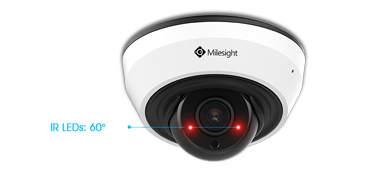

Smart IR II Technology
The IR distance is up to 20m with upgraded IR LEDs of which brightness can be adjusted. Morever, with the IR anti-reflection panel, the infrared light transmittance is highly increased.
-

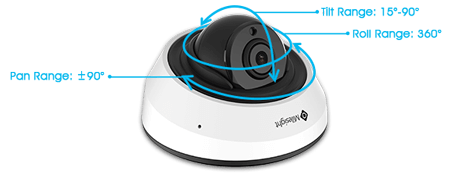

3-Axis Mechanical Design
3-axis mechanical design with 180° pan, 15-90° tilt and 360° roll for fast and easy adjustment of the camera's viewing angle.
-

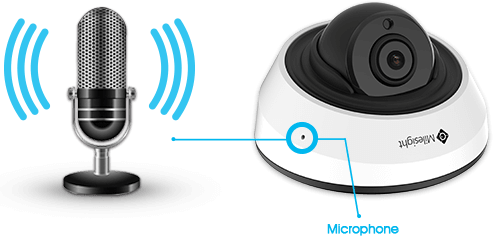

New Microphone
Upgraded with new codec, the microphone voice is clearer, which is much better than the previous one.
-

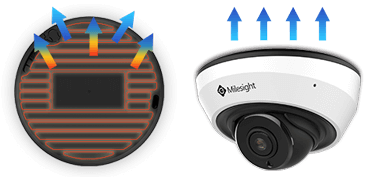

Better Thermal Design
The base of the New H.256+ IR Mini Dome Network Camera with bulged strips which enlarge the heat dissipating area has been upgraded to better dissipate heat.
-

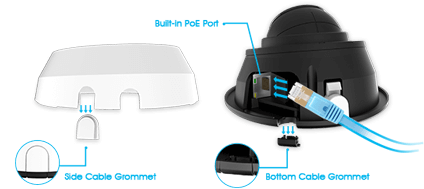

Easy Installation & Adjustment
Milesight specially designs a press button, a unique panel on the side of cover and built-in PoE port, making the installation a piece of cake.
-

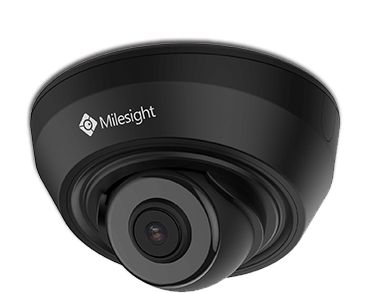

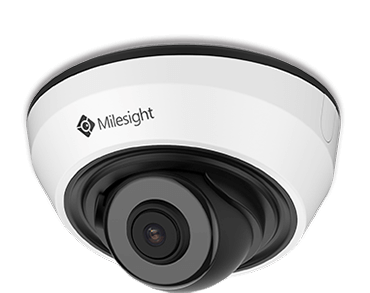

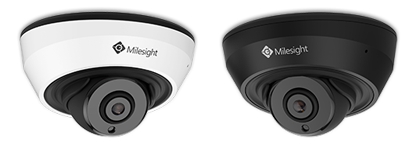

Two Colors Available
Available in White and Black, the brand-new H.265+ IR Mini Dome Network Camera provides more choices for your preference.
-

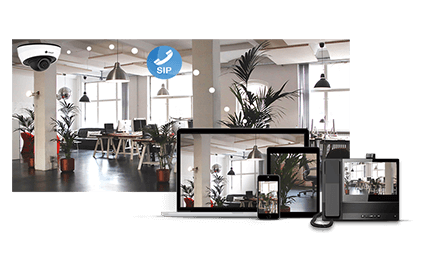

SIP/VoIP Support
Milesight H.265+ IR Mini Dome Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
-
Camera
Name2MP H.265 IR Mini Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.6/F2.0, B/W: 0Lux with IR on
WDR140dB Super WDR
Lens2.8mm/4mm/6mm@F1.6; 2.8mm@F2.0
MountM12
Field of ViewH111°/D128°/V61°(2.8mm@F1.6), H124°/D144°/V68°(2.8mm@F2.0), H91°/D106°/V50°(4mm), H55°/D63°/V32°(6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 20m
S/N>55dB
Video
Max. Image Resolution1920x1080
Frame Rate30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz
Audio Bit Rate16~256kbps
Two-way AudioN/A
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio InterfaceBuilt-in Microphone
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)
Power Consumption3.5W MAX, 5W MAX (With IR on)
DimensionsΦ97.8mmX57.9mm
Weight200g
Warranty3/5 Years
-
Camera
Name5MP H.265 IR Mini Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, Color: 0.008Lux @F1.6/F2.0, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens2.8mm/4mm/6mm@F1.6; 2.8mm@F2.0
MountM12
Field of ViewH105°/D131°/V78°(2.8mm@F1.6), H113°/D143°/V83°(2.8mm@F2.0), H86°/D108°/V63°(4mm), H52°/D63°/V40°(6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 20m
S/N>55dB
Video
Max. Image Resolution2592x1944
Frame Rate20fps@(2592x1944), 30fps@(2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16KHz
Audio Bit Rate16~96kbps
Two-way AudioN/A
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio InterfaceBuilt-in Microphone
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)
Power Consumption4W MAX, 5.5W MAX (With IR on)
DimensionsΦ97.8mmX57.9mm
Weight200g
Warranty3/5 Years
-
* Naming Convention
P - PoE Supported
B - H.265 Compression
