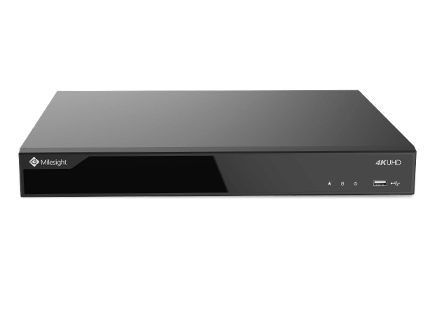

4K H.265 Pro NVR 5000 Series

8/16 Channels NVR with 4K UHD Performance

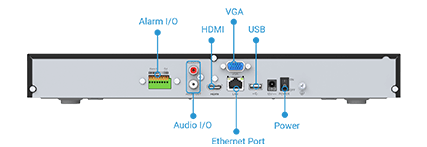

2*10TB Storage · Decode up to 2-CH 4K UHD & 8-CH 1080P · ANR · Versatile Interfaces

4K H.265 Onvif HDMI VGA Dual Stream
Recording
Audio
In/Out
Alarm
In/Out
ANR ANPR VCA Online Upgrade P2P HTML5
Pro NVR 5000
Pro NVR 5000
Pro NVR 5000
Pro NVR 5000
  • Input

    Network Video Input8-CH

    Bandwidth Requirement80Mbps (Incoming)
    80Mbps (Outgoing)

    Output

    HDMI Output1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)

    VGA Output1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.

    Dual StreamSupport

    Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF

    Synchronous Playback1*(30fps @8MP), 1*(30fps@6MP), 1*(30fps@5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps@1080P), 8*(30fps @720P)

    Format

    Video CompressionH.265+/H.265(HEVC)/H.264+/H.264

    Audio FormatG.711/AAC/G.722/G.726

    Storage

    SATA2*SATA HDD (3.5”)

    CapacityUp to 10TB capacity for each HDD

    Record

    Synchronous Recording8*5MP

    Recording TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)

    Snapshot TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)

    Playback TypeGeneral Playback, Event Playback, Tag Playback, Split Playback, Picture Playback

    BackupVideo backup, Image Backup

    Network

    Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS

    Interface

    Network Interface1*RJ45 10/100/1000Mbps

    USB Interface2*USB 2.0

    Audio Input/Output1*RCA/1*RCA

    Alarm Input/Output4-CH/1-CH

    General

    CompatibilityONVIF, API

    Advanced FunctionANR

    Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting

    Keyboard ControlMilesight Keyboard(MS-K01)

    Power SupplyDC 12V 50Hz∼60Hz

    Consumption≤3W(Without HDD)

    Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%

    Dimensions380mm(W)X317.6mm(D)X51.8mm(H), Rack Mountable Chassis(1.0U Standard)

    Weight1.9Kg

    Warranty3/5 Years

  • Input

    Network Video Input8-CH

    Bandwidth Requirement80Mbps (Incoming)
    80Mbps (Outgoing)

    Output

    HDMI Output1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)

    VGA Output1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.

    Dual StreamSupport

    Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF

    Synchronous Playback2*(30fps @8MP), 2*(30fps@6MP), 3*(30fps@5MP), 4*(30fps @4MP), 5*(30fps @3MP), 8*(30fps@1080P), 8*(30fps @720P)

    Format

    Video CompressionH.265+/H.265(HEVC)/H.264+/H.264

    Audio FormatG.711/AAC/G.722/G.726

    Storage

    SATA2*SATA HDD (3.5”)

    CapacityUp to 10TB capacity for each HDD

    Record

    Synchronous Recording8*5MP

    Recording TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)

    Snapshot TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)

    Playback TypeGeneral Playback, Event Playback, Tag Playback, Split Playback, Picture Playback

    BackupVideo backup, Image Backup

    Network

    Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS

    Interface

    Network Interface1*RJ45 10/100/1000Mbps

    USB Interface1*USB 3.0; 2*USB 2.0

    Audio Input/Output-/1*RCA

    Alarm Input/Output4-CH/1-CH

    General

    CompatibilityONVIF

    Advanced FunctionANR

    Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting

    Keyboard ControlMilesight Keyboard(MS-K01)

    Power SupplyDC 12V 50Hz∼60Hz

    Consumption≤10W(Without HDD)

    Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%

    Dimensions440mm(W)X251mm(D)X44.4mm(H), Rack Mountable Chassis(1.0U Standard)

    Weight2.6Kg

    Warranty3/5 Years

  • Input

    Network Video Input16-CH

    Bandwidth Requirement160Mbps (Incoming)
    160Mbps (Outgoing)

    Output

    HDMI Output1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)

    VGA Output1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.

    Dual StreamSupport

    Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF

    Synchronous Playback2*(30fps @8MP), 2*(30fps@6MP), 3*(30fps@5MP), 4*(30fps @4MP), 5*(30fps @3MP), 8*(30fps@1080P), 16*(30fps @720P)

    Format

    Video CompressionH.265+/H.265(HEVC)/H.264+/H.264

    Audio FormatG.711/AAC/G.722/G.726

    Storage

    SATA2*SATA HDD (3.5”)

    CapacityUp to 10TB capacity for each HDD

    Record

    Synchronous Recording16*5MP

    Recording TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)

    Snapshot TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)

    Playback TypeGeneral Playback, Event Playback, Tag Playback, Split Playback, Picture Playback

    BackupVideo backup, Image Backup

    Network

    Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS

    Interface

    Network Interface1*RJ45 10/100/1000Mbps

    USB Interface1*USB 3.0; 2*USB 2.0

    Audio Input/Output-/1*RCA

    Alarm Input/Output4-CH/1-CH

    General

    CompatibilityONVIF

    Advanced FunctionANR

    Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting

    Keyboard ControlMilesight Keyboard(MS-K01)

    Power SupplyDC 12V 50Hz∼60Hz

    Consumption≤10W(Without HDD)

    Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%

    Dimensions440mm(W)X251mm(D)X44.4mm(H), Rack Mountable Chassis(1.0U Standard)

    Weight2.6Kg

    Warranty3/5 Years

  • * Naming Convention

      U - 4K

      C/T - H.265 Compression
