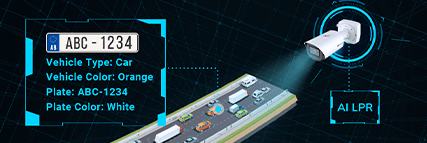

AI-powered LPR Algorithm
Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.

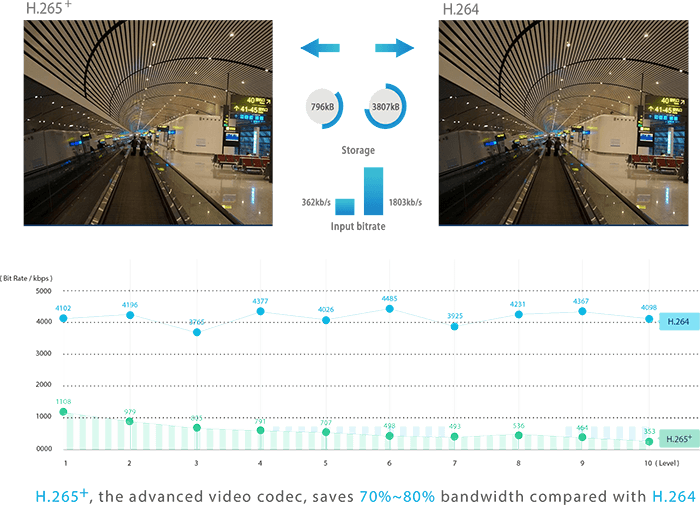

Leading-edge H.265+ Compression
P-Iris Control
Adopting P-Iris control technology, Milesight AI LPR Motorized Pro Bullet Plus Network Camera is able to optimize the iris opening under all lighting conditions, offering images with better contrast, clarity, resolution and depth of field.

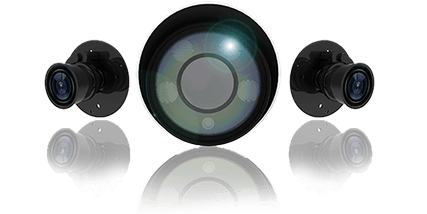

Motorized Zoom Lens
Equipped with motorized zoom & focus lens, Milesight AI LPR Motorized Pro Bullet Plus Network Camera allows remote control of focal length, iris and focus through the use of a lens controller, which is perfect for long distance surveillance in areas such as parking lots, highways and ports.
3 in 1 Super WDR Pro - 140dB
Milesight upgraded 3 in 1 Super WDR Pro outputs three frames each line, which is able to bring more details especially moving subjects. What’s more, it greatly improves image quality for reducing smear and noisy points. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.
100fps High Frame Rate
With the industry leading frame rate reaching 100fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

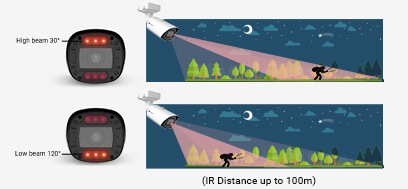

Smart IR II Technology
The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 100m. Three LEDs on the top work as High Beam, while the other three on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.

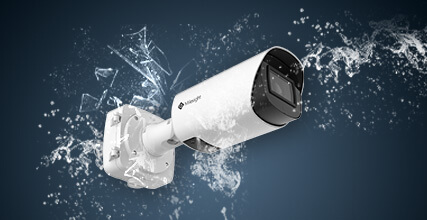

IP67&IK10
Sharply contrasting to the mini size, the AI LPR Motorized Pro Bullet Plus Network Camera features the industry leading IP67-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.

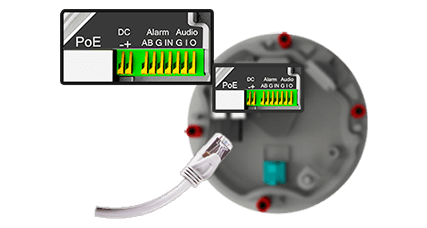

Integrated Cable Management Bracket
In the base, there are power interface, PoE port and other interfaces. Thanks to integrated cable management, it takes no effort in installation.

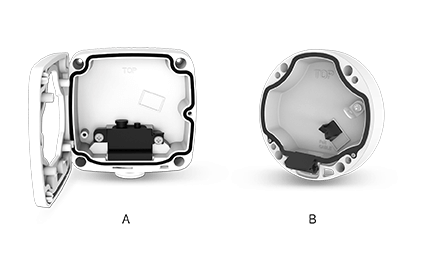

Integrated Junction Box
A: The creative clamshell design minimizes the installation troubles and enlarges the space to
make cable connection a piece of cake.
B: The round design of the junction box conceals the
cables inside, making it look more neat and clear.
-
Camera Camera Name 2MP AI LPR Motorized Pro Bullet Plus Network Camera Image Sensor 1/2.8" Progressive Scan CMOS Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on WDR 140dB Super WDR Pro(Super WDR Pro is optional for T Series) Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 65m(3.0~10.5mm/2.7~13.5mm), Up to 100m(7~22mm) S/N >55dB Lens Lens Lens Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional) Field of View H113°~H33°/D130°~D38° /V60°~V18° (2.7~13.5mm) H104°~H34°/D120°~D39° /V57°~V19° (3.0~10.5mm) H45°~H17°/D53°~D20° /V25°~V9° (7~22mm) Mount Φ14 Focus Control Auto/Manual Iris Control Auto/Manual(Optional for I Series) LPR LPR Max. Vehicle Speed 200km/h Recognition Accuracy >95% Coverage Support simultaneous detection of 4 regions White/Black List Up to 1000 records inside the camera Smart Traffic Detection License Plate Recognition, Plate Type Classification, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition, Vehicle Direction Detection Video Video Max. Image Resolution 1920x1080 Primary Stream 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable) Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas) ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O 1/1 Alarm I/O 1/1 Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/44.1/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3af)/DC 12V±10% Power Consumption 8W MAX, 16W MAX (With IR on) Weather Proof Up to IP67-rated for Weather-resistant Performance Housing Vandal-proof IK10-rated Metal Housing Surge Protection 4KV Weight 1630g Dimensions 301mmX108mmX98mm Warranty 3/5 Years -
Camera Camera Name 2MP AI LPR Motorized Pro Bullet Plus Network Camera Image Sensor 1/2.8" Progressive Scan CMOS Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on WDR 120dB Super WDR Pro Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 65m(3.0~10.5mm/2.7~13.5mm), Up to 100m(7~22mm) S/N >55dB Lens Lens Lens Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional) Field of View H113°~H33°/D130°~D38° /V60°~V18° (2.7~13.5mm) H104°~H34°/D120°~D39° /V57°~V19° (3.0~10.5mm) H45°~H17°/D53°~D20° /V25°~V9° (7~22mm) Mount Φ14 Focus Control Auto/Manual Iris Control Auto/Manual(Optional for I Series) LPR LPR Max. Vehicle Speed 200km/h Recognition Accuracy >95% Coverage Support simultaneous detection of 4 regions White/Black List Up to 1000 records inside the camera Smart Traffic Detection License Plate Recognition, Plate Type Classification, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition, Vehicle Direction Detection Video Video Max. Image Resolution 1920x1080 Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) Secondary Stream 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) Tertiary Stream 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351c288, 320x240, 320x192) Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable) Privacy Masking Up to 24 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O 1/1 Alarm I/O 1/1 Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/44.1/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3af)/DC 12V±10% Power Consumption 7.5W MAX, 14W MAX (With IR on) Weather Proof Up to IP67-rated for Weather-resistant Performance Housing Vandal-proof IK10-rated Metal Housing Surge Protection 4KV Weight 1630g Dimensions 301mmX108mmX98mm Warranty 3/5 Years -
* Naming Convention
X4/X12 - 4X/12X Optical Zoom
R - High Frame Rate (60fps)
T - High Frame Rate (100fps)
L - License Plate Recognition (LPR)
V - Radar
P - PoE Supported
C - AI Series
