AI Video Analytics
Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.
-
People Counting
Milesight People Counting Technology provides high accuracy and real-time data based on AI algorithm, with statistic reports for further analysis. It is a reliable and efficient way to understand the flow movement and make fast decision on security management. By analyzing the data and trend, you can also identify the peak of occupancy and increase the operational efficiency of the business.
-

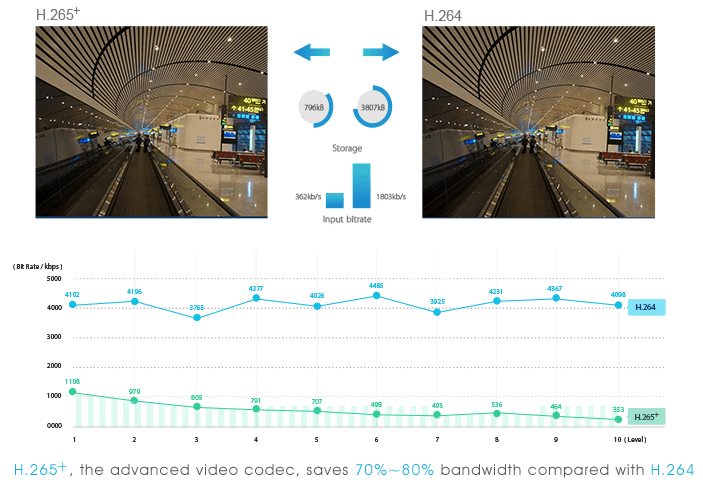

Leading-edge H.265+ Compression
-

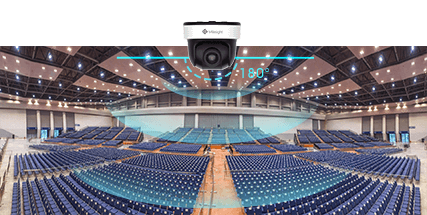

180° Panoramic View
As a dome-shaped camera, Milesight AI 180° Panoramic Mini Dome Network Camera is perfect for ultra-wide area monitoring, especially because it can great merge itself into surroundings. It catches 180° horizontal and 95° vertical coverage, achieving extra wide angle viewing with only one single sensor.
-

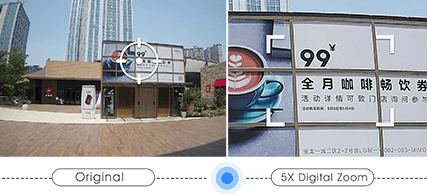

4K Ultra High Definition
The AI 180° Panoramic Mini Dome Network Camera features 4K ultra high resolution to guarantee superb image quality of 3840x2160. Introducing 180° ultra-wide angle lens, the camera realizes the whole scene monitoring without any details missing.
-

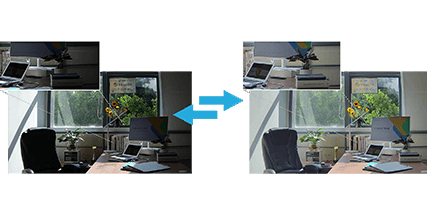

120dB Super WDR
Milesight’s sensor-based WDR technology allows the AI 180° Panoramic Mini Dome Network Camera to record greater scene details with true color reproduction even under the extreme backlight and high contrast conditions. The ratio that the brightest light signal values to the darkest light signal values is up to 120dB.
-

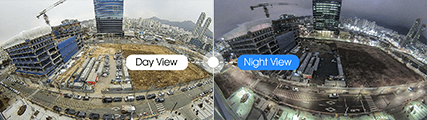

0.005Lux Ultra Low-light
The AI 180° Panoramic Mini Dome Network Camera is able to deliver high detailed color images even in extremely low light environments reaching 0.005Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
-

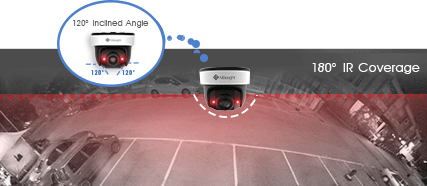

New Generation Panoramic IR Technology
Tailored for Milesight panoramic network camera, the new generation panoramic IR technology adopts the original structure design to achieve the best IR anti-reflection effect. With the adjustable illumination intensity, two well-designed IR LEDs truly realize the 180° IR coverage.
-

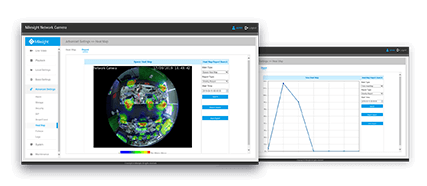

Advanced Heat Map
The built-in Milesight Advanced Heat Map analyzes customers’ behavior to reveal insights for better business management. Supporting scenario-adaptable and flexible configurations, it can automatically export the intuitive statistical reports in time or space pattern as needed.
-
IP67 & IK10
Supporting IP67-rated weather proofing and IK10-rated vandal proofing which are the leading level of the industry, the AI 180° Panoramic Mini Dome Network Camera is well protected against adverse impacts to ensure the robust performance.
-

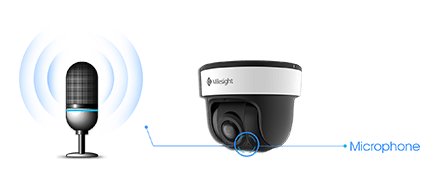

Advanced Built-in Microphone
Adopting the advanced codec in microphone, the AI 180° Panoramic Mini Dome Network Camera is able to provide a clearer voice. It’s worth mentioning that Milesight uses PTFE Membrane to protect the built-in mic, ensuring IP67-rated weather-proof capability for reliable performance.
-

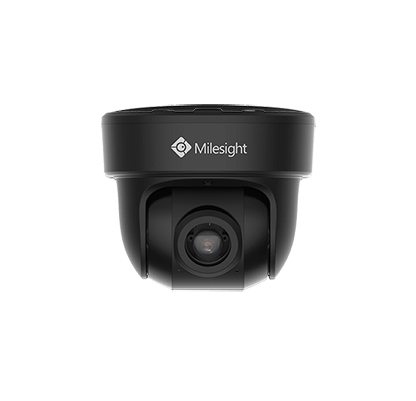

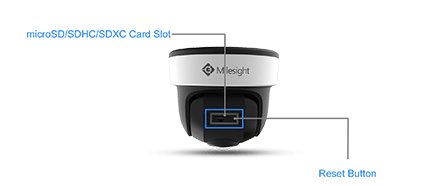

Exquisite Design
The inherited Milesight style makes the AI 180° Panoramic Mini Dome Network Camera a piece of art. The dome shape design offers a wide range of surveillance and blends well in any environment. The considerate structure ensures the network camera’s best ease of use, realizing the greatest user experience.
-

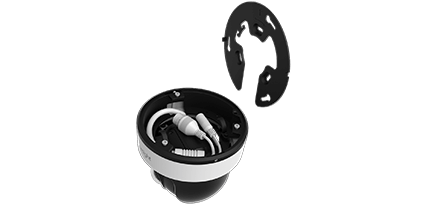

Integrated Junction Box
Coming with the concealed cable winding design, the integrated junction box not only ensures the AI 180° Panoramic Mini Dome Network Camera a simplified installation with better aesthetics and professional look of the video surveillance system, but also provides higher operation stability.
-
Camera
Name5MP AI 180° Panoramic Mini Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, Color: 0.008Lux @F2.0, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens1.68mm @F2.0
MountM12
Field of ViewH180°/V95°
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR Distance180° IR Illumination Up to 15m
S/N>55dB
Video
Max. Image Resolution2592x1944(Original)
Primary Stream60Hz: 30fps@(2592x1944)(Original), 30fps@(2560x1440, 1920x1080, 1280x720)
50Hz: 25fps@(2592x1944)(Original), 25fps@(2560x1440, 1920x1080, 1280x720)Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240, 320x192)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240, 320x192)Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio InterfaceBuilt-in Microphone
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioN/A
Intelligent
AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark

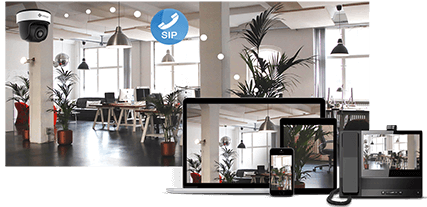

SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption5W MAX, 8W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ127mmX107mm
Weight853g
Warranty3/5 Years
-
Camera
Name4K AI 180° Panoramic Mini Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @F1.2, Color: 0.012Lux @F2.0, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens1.68mm @F2.0
MountM12
Field of ViewH180°/V86°
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR Distance180° IR Illumination Up to 15m
S/N>55dB
Video
Max. Image Resolution3840x2160
Primary Stream60Hz: 30fps@(3840x2160), 30fps@(3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720)
50Hz: 25fps@(3840x2160), 25fps@(3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720)Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240, 320x192)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240, 320x192)Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio InterfaceBuilt-in Microphone
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioN/A
Intelligent
AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption6W MAX, 9W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ127mmX107mm
Weight853g
Warranty3/5 Years
-
* Naming Convention
P - PoE Supported
B - H.265 Compression
