Milesight-Troubleshooting-How to Retrieve and backup files in new firmware(7X.9.0.1 or above)

Milesight-Troubleshooting-How to Retrieve and backup files in new firmware(7X.9.0.1 or above).pdf

1. What is Retrieve function ?

In NVR’s new firmware(used from 7X.9.0.X), there is a new-added Retrieve interface, which is different from Playback interface.

In Playback interface, the main function is to view the searched video files, and you can clip and backup the video files in one day.

In Retrieve interface, you can search and backup video files or picture files across days and events via different conditions. There are Common Backup, Event Backup and Picture Backup.

In Common Backup interface, you can search for all types of video files set in record schedule interface.

In Event Backup interface, you can search for different event types of video files as long as an alarm action triggers the recording.

Please refer to the following steps about how to backup files in Playback interface and Retrieve interface.

2. How to Retrieve and backup files in new firmware ?

PartⅠ Backup on monitor

(1) Backup in Playback interface

In Playback interface, you can export clipped video, playback snapshot and locked file to various devices, including USB flash drives (USB flash disk, USB HDD) and eSATA, etc.

And in Playback interface you can only clip and backup the video files in one day.

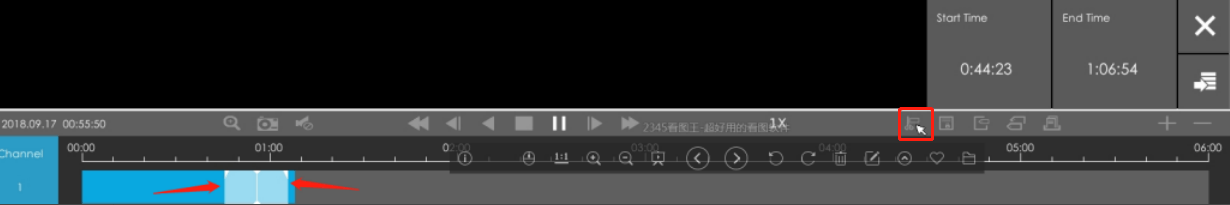

Step1. Go to Playback interface, select the channel and date you want to backup, then select the time at timeline and click "Cut" button, then drag the timeline to select the start time and end time of video.

Backup in Playback interface

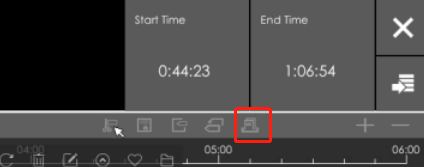

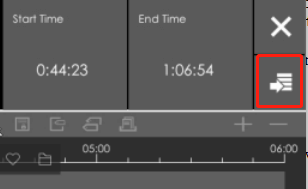

Step2. Click "Save" button to save the clipped video.

Backup in Playback interface

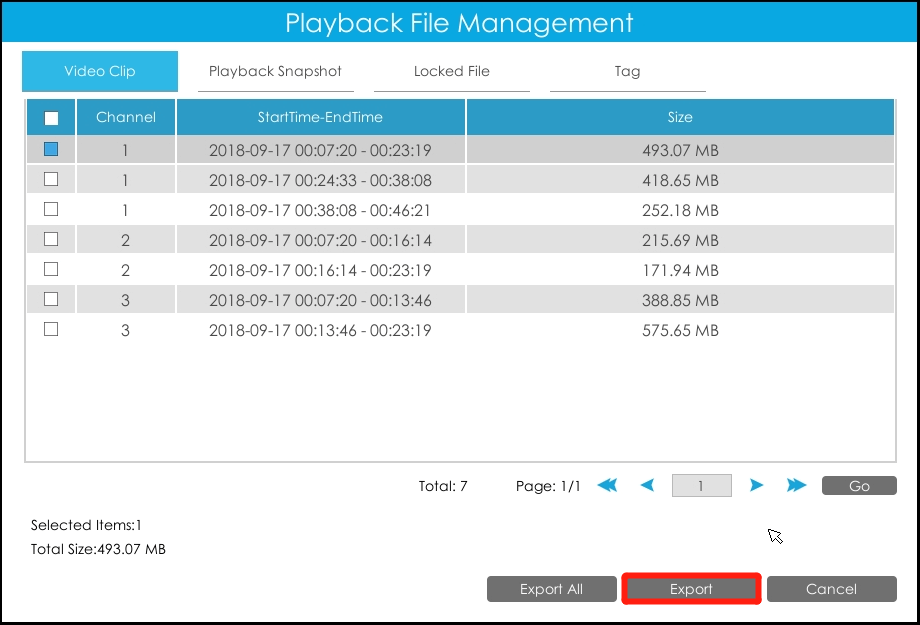

Step3. Click button to pop up File Management interface. Select the video you clipped, or you can select playback snapshot and locked file, and click "Export" to export video.

Backup in Playback interface
Backup in Playback interface

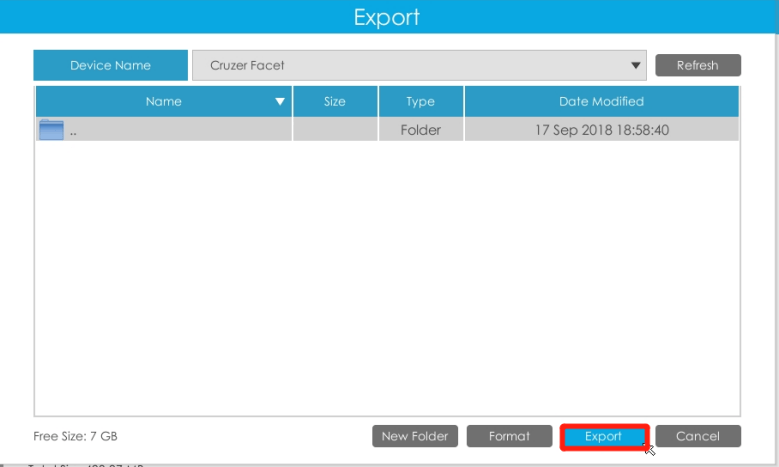

Step4. Select the device to storage exported video and then click "Export". You can also directly format and create new folder of storage device here.

Backup in Playback interface

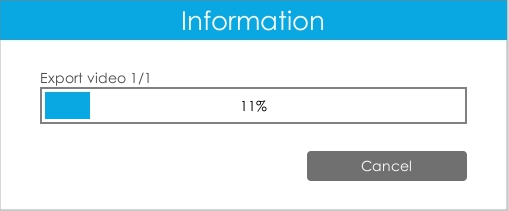

There is an information promoted showing the export progress.

Backup in Playback interface
Note:

a. The download time of files depends on the time length of video you want to backup.

b. In playback interface, all operations are one-time. Once you exit the playback interface, all clipped, locked and tagged marks will be erased.

(2) Backup files in Retrieve interface

In Retrieve interface, you can search for video files or picture files according to different conditions, and backup to various devices, including USB flash drives (USB flash disk, USB HDD) and eSATA, etc.

In Retrieve interface, you can search and backup files across days and events.

There are three backup methods: Common Backup, Event Backup and Picture Backup.

① Common Backup

In Common Backup interface, you can search for all types of video files set in record schedule interface. It supports to search out record file according to different stream type, record type and file type you set.

Common Backup in Retrieve interface

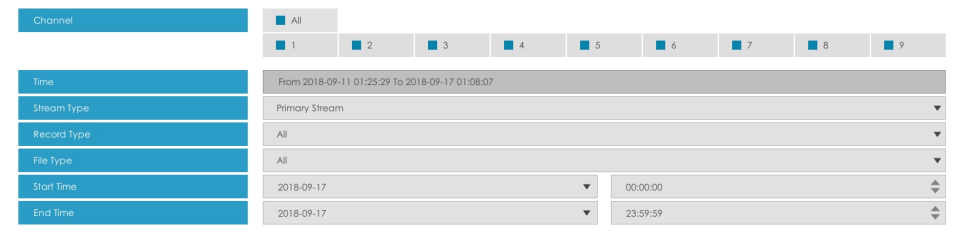

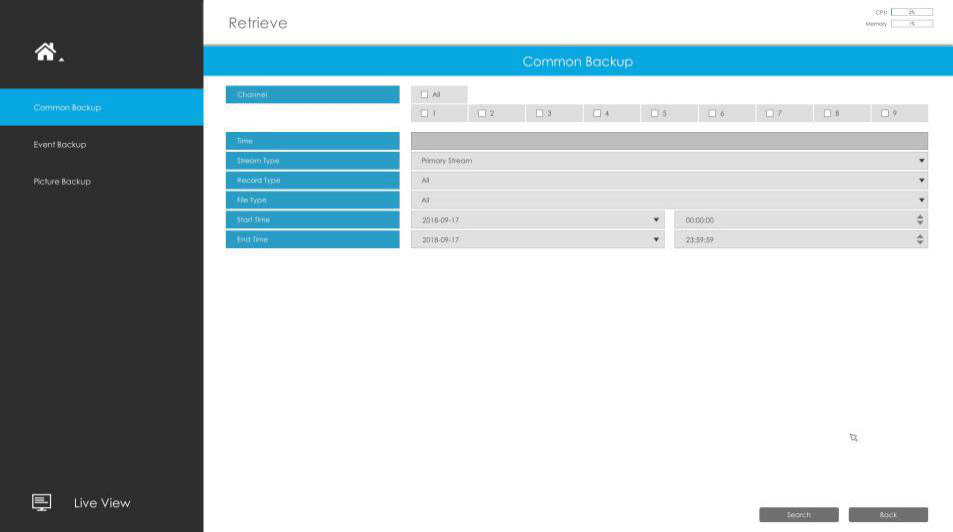

Step1: Set the search condition including Channel, Stream Type, Record Type, File Type, Start Time and Stop Time, and click "Search" to search video.

Backup files in Retrieve interface

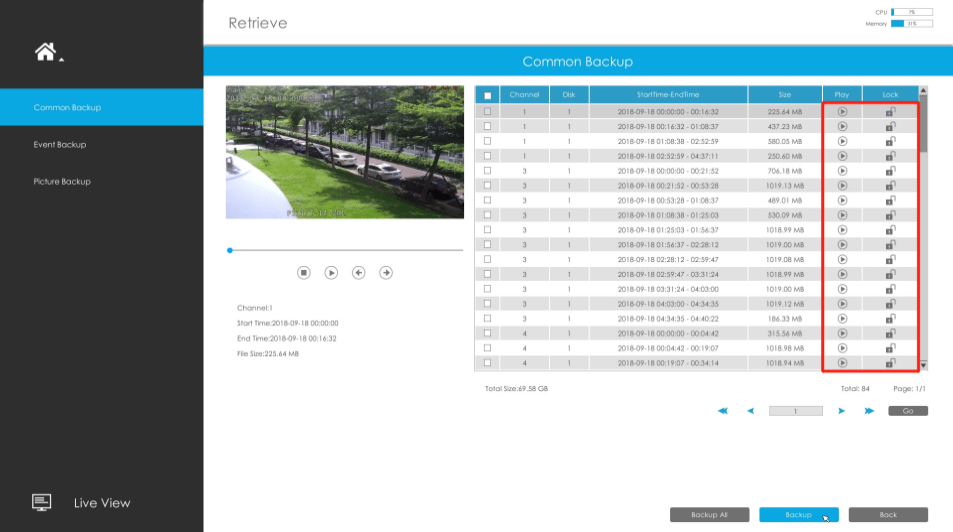

Step2: Select the file you want to backup and click "Backup". Also, you can click "Backup All" to backup all recorded videos.

In Common Backup interface, play, lock and unlock video are supported. Click "Play" button to play and "Lock" button to lock. Once the video is locked, the whole file where the video located won’t be overwritten.

Common Backup in Retrieve interface

② Event Backup

In Event Backup interface, you can search for different event types of video files as long as an alarm action triggers the recording.

The event type includes Motion Detection, Alarm Input and Smart Event.

Event Backup in Retrieve interface

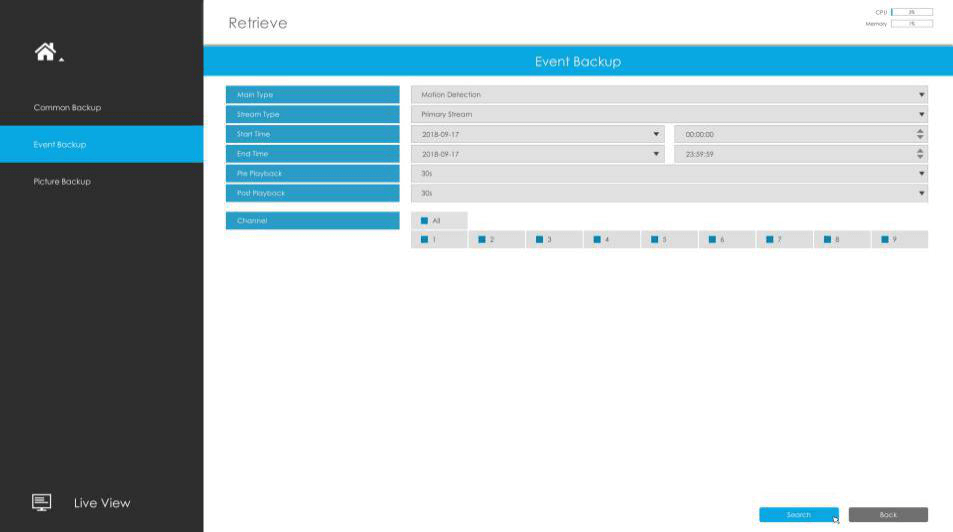

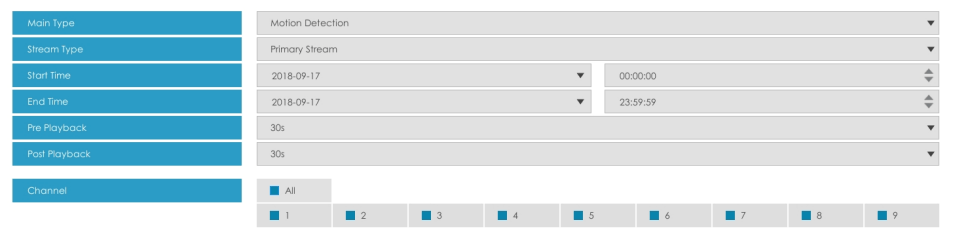

Step1: Set the search condition including Event type, Stream Type, Channel, Start Time, Stop Time, Pre Playback, Post Playback and Channel, and click "Search" to search video.

Event Backup in Retrieve interface

Step2: Select the file you want to backup and click "Backup". Also, you can click "Backup All" to backup all recorded video.

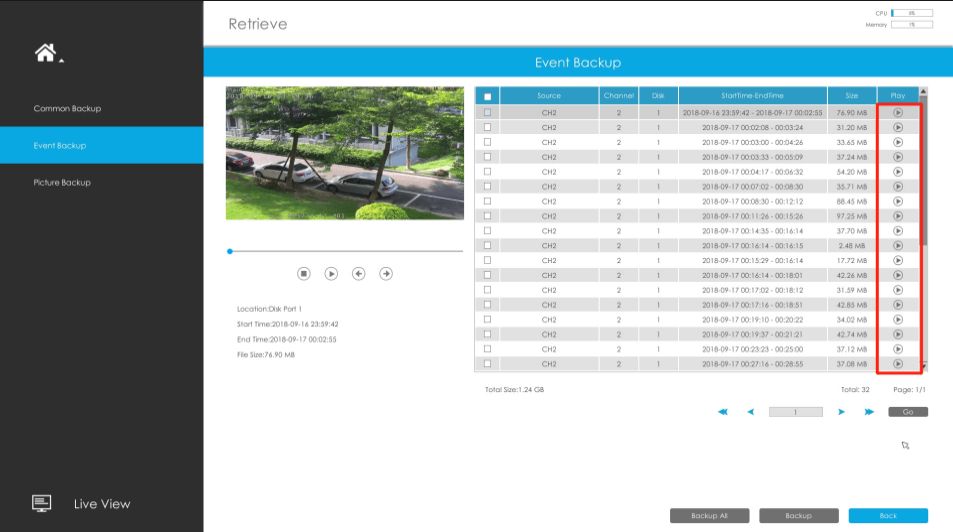

In Event Backup interface, you can click "Play" button to play the video.

Event Backup in Retrieve interface

③ Picture Backup

Support to search out and backup picture according to picture type. The picture type includes All, Live View Snapshot and Playback Snapshot.

Picture Backup in Retrieve interface

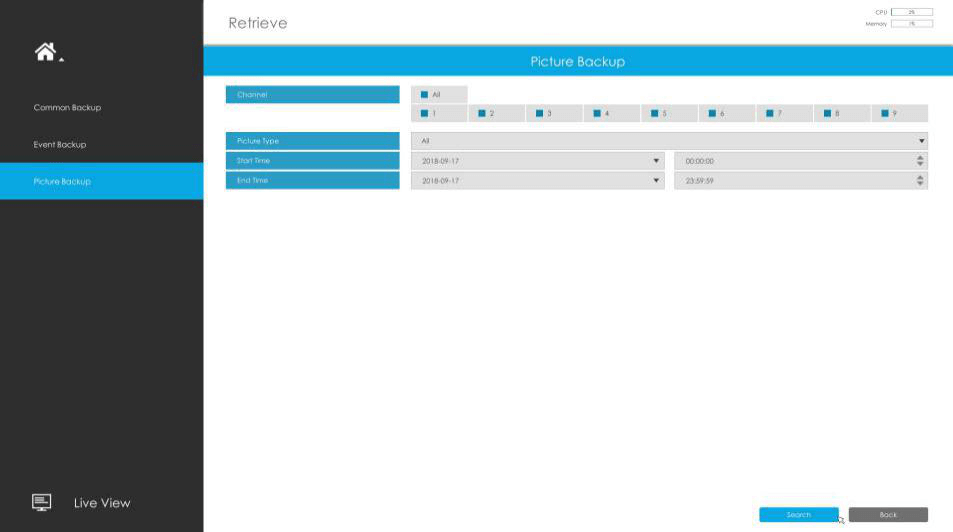

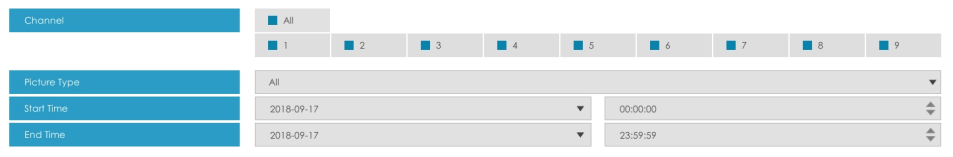

Step1: Set the search condition including Channel, Picture Type, Start Time and Stop Time, and click "Search" to search snapshot.

Picture Backup in Retrieve interface

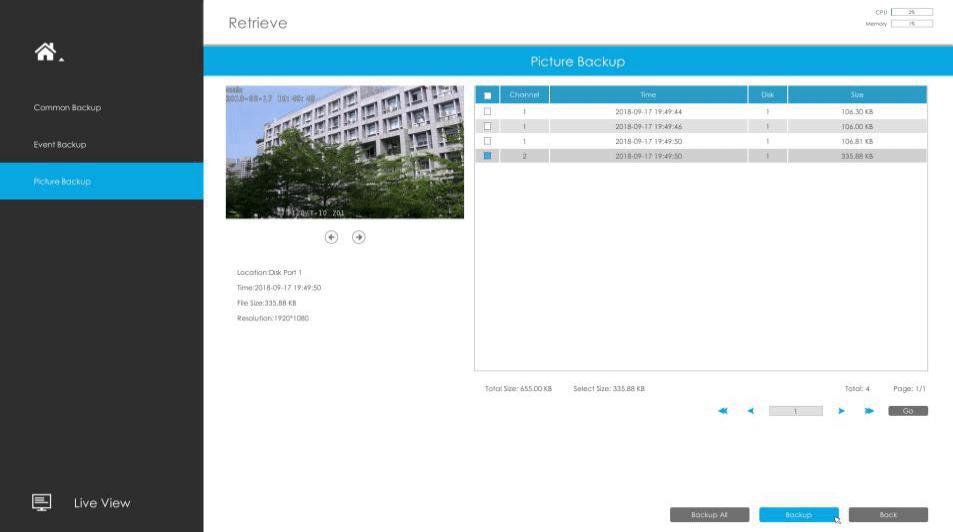

Step2: Select the file you want to backup and click "Backup". Also, you can click "Backup All" to backup all recorded videos.

Picture Backup in Retrieve interface

PartⅡ Backup on web

(1) Backup video files

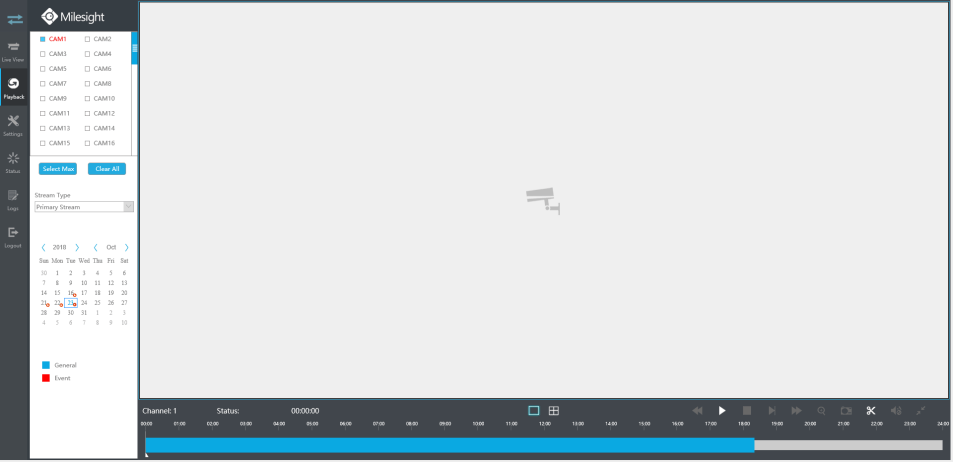

Step1: In playback interface, select camera, the date and time to playback.

Backup video files on web

Step2: Select Recorded files for Backup.

Click "Cut" button, then select start time and end time by dragging the vertical line on the time bar.

Backup video files on web

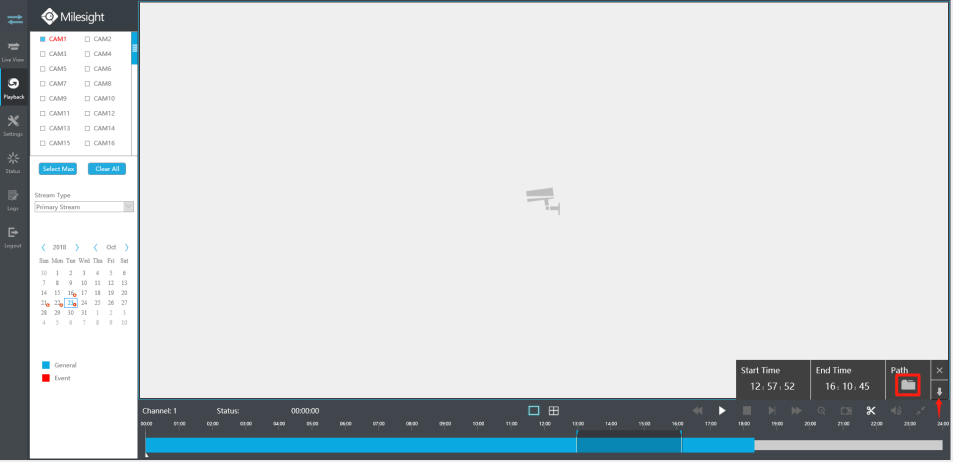

Step3: Backup the recorded files.

Select file path, then click "Download" button to back up recorded files.

Backup video files on web

(2) Backup picture files

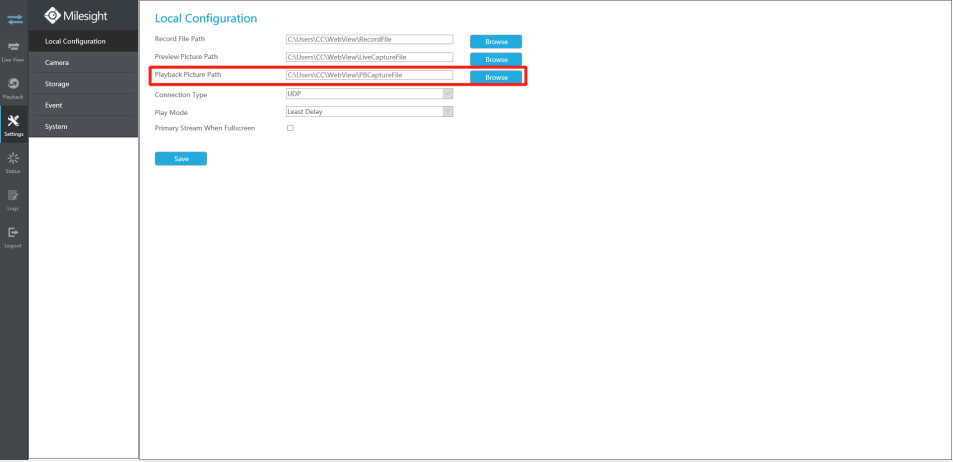

Step1: Browse a file path in Local Configuration interface.

Backup picture files on web

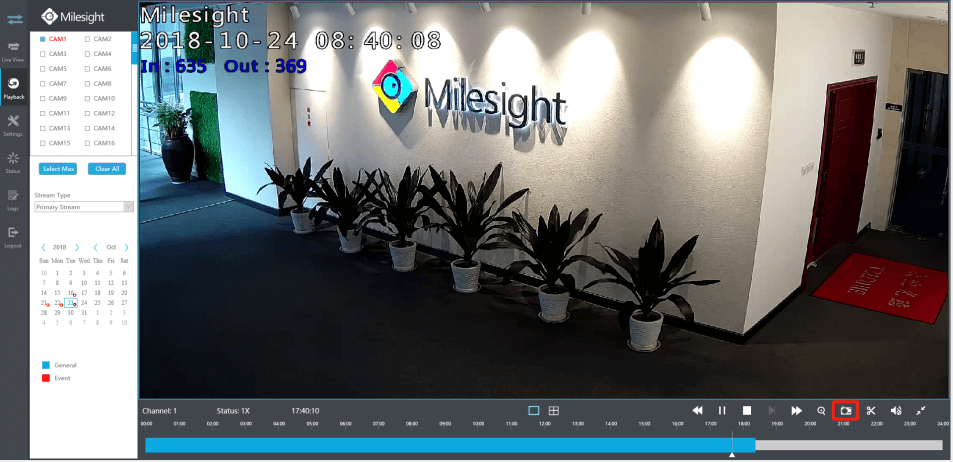

Step2: Click "Snapshot" button to save the picture during video playback. Then the backup picture can be found in the files path you set before.

Note:

It is recommended to run browser as administrator before getting playback snapshot.

Backup picture files on web
