Ⅰ. Introduction

MIP Milesight plugin is a software plugin developed by Milesight for using Milesight VCA on Milestone VMS. It provides you a better experience on security surveillance.

The plugin allows you to configure your Milesight Network Cameras and Milesight VCA from Management Client.

On Smart Client, the plugin allows you to receive the real-time VCA alarms, view the event and alarm details, and search for the triggered VCA alarms and events.

Ⅱ. Milesight Video Content Analysis

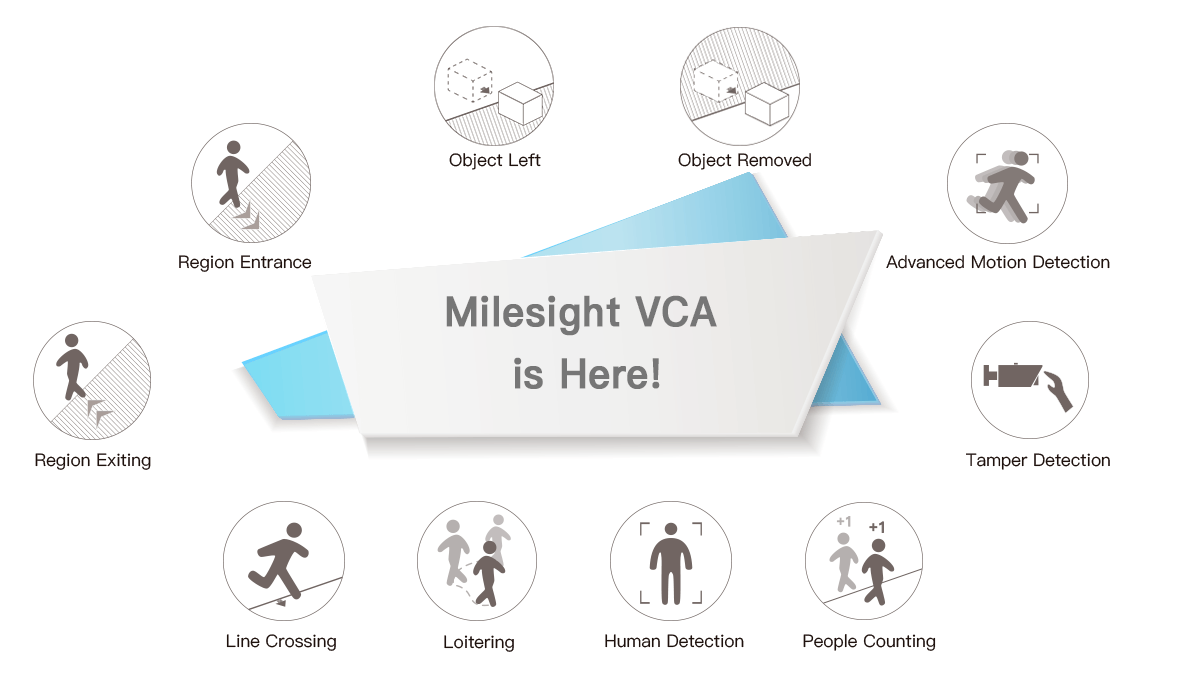

Milesight VCA provides advanced video analysis for Milesight Network Cameras. It enhances the performance of network cameras through 10 detection modes, enabling the comprehensive surveillance function and quicker response of the whole VCA solution to different monitoring scenes. In addition, Milesight Network Cameras support independent function settings for convenient user experience. The Milesight VCA solution ensures that video surveillance is more accurate and cost-effective.

MIP Plugin

Ⅲ. How to Install Plugin

Precondition

Make sure you have stopped Event Server service and Management Server service.

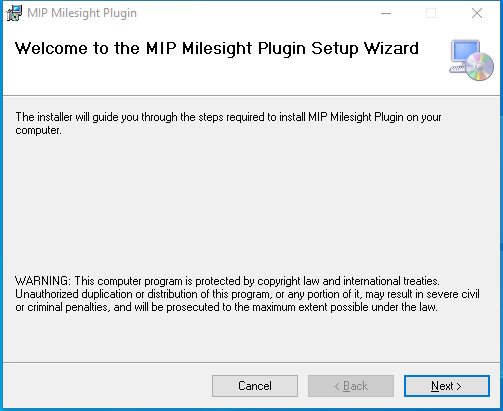

Step 1: Double click MIP_Milesight_Plugin_X64_en.msi to enter the welcome page of the Setup Wizard.

MIP Plugin

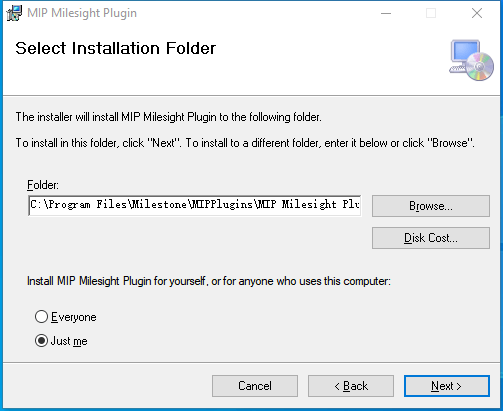

Step 2: Click "Next" to select the installation folder.

MIP Plugin
Note:

By default, the plugin is installed in C:\Program Files\Milestone\MIPPlugins\MIP Milesight Plugin\ (It must be on Disk C, and you can set the folder you want.)

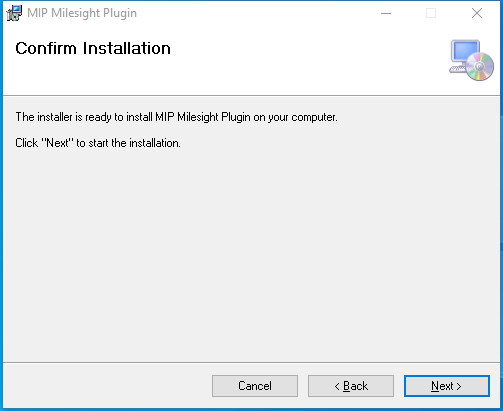

Step 3: Click "Next" to start the installation.

MIP Plugin

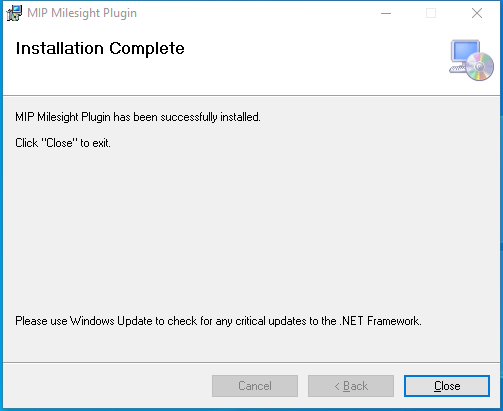

Step 4: The installation complete. Click "Close" to exit.

MIP Plugin

Start Event Server service and Management Server service, then you can use the plugin.

Ⅳ. How to Add Milesight Network Cameras to the Milestone XProtect

Step 1: Log in to Milestone XProtect Management Client.

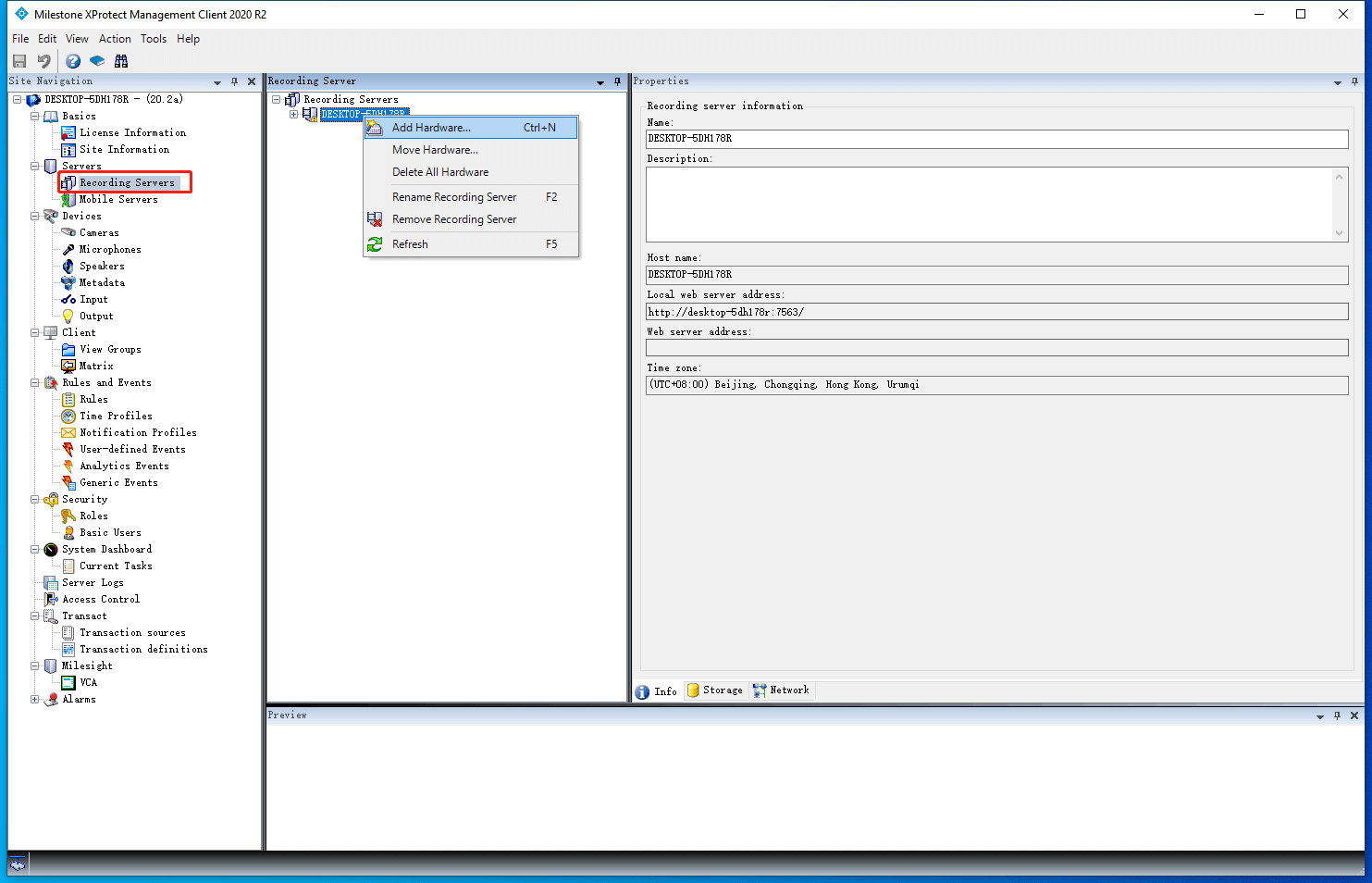

Step 2: Click "Servers" -> "Recording Servers" in the Site Navigation panel to show the list of Recording Server. Right click a server and click "Add Hardware..." .

MIP Plugin

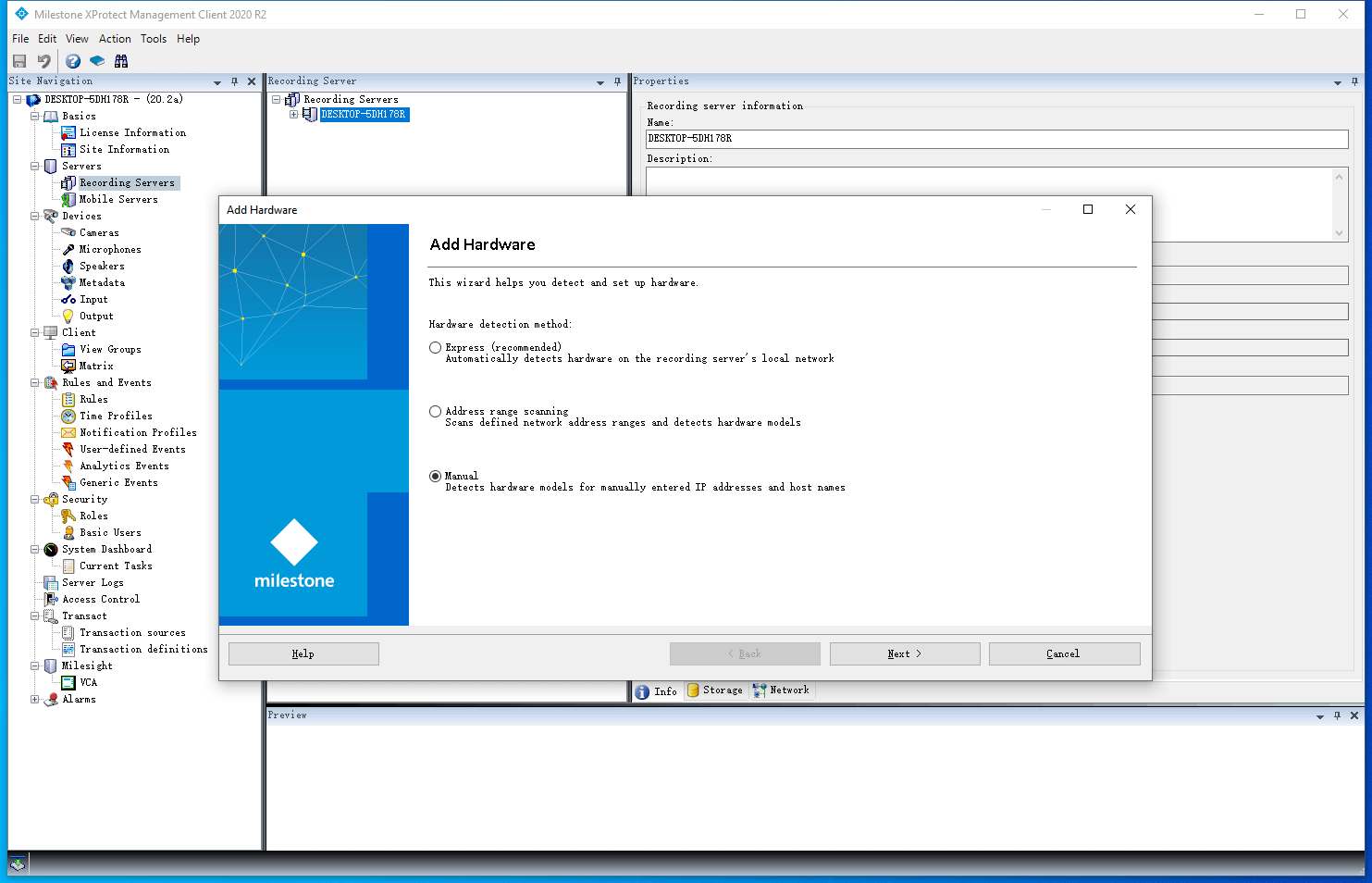

Step 3: Select "Manual" and click "Next" .

MIP Plugin

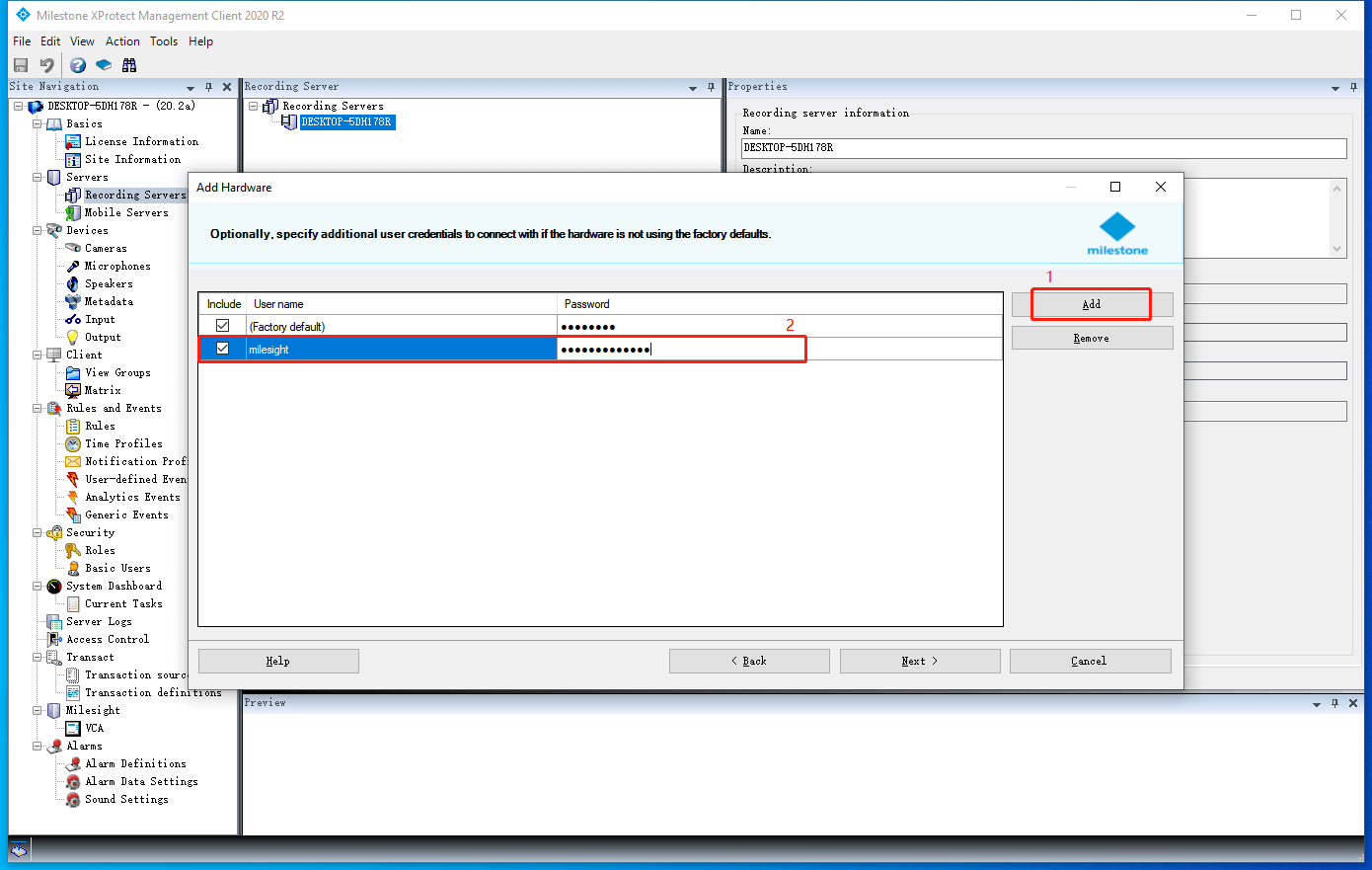

Step 4: Click "Add" , input user name and password of the camera, and click "Next" .

MIP Plugin

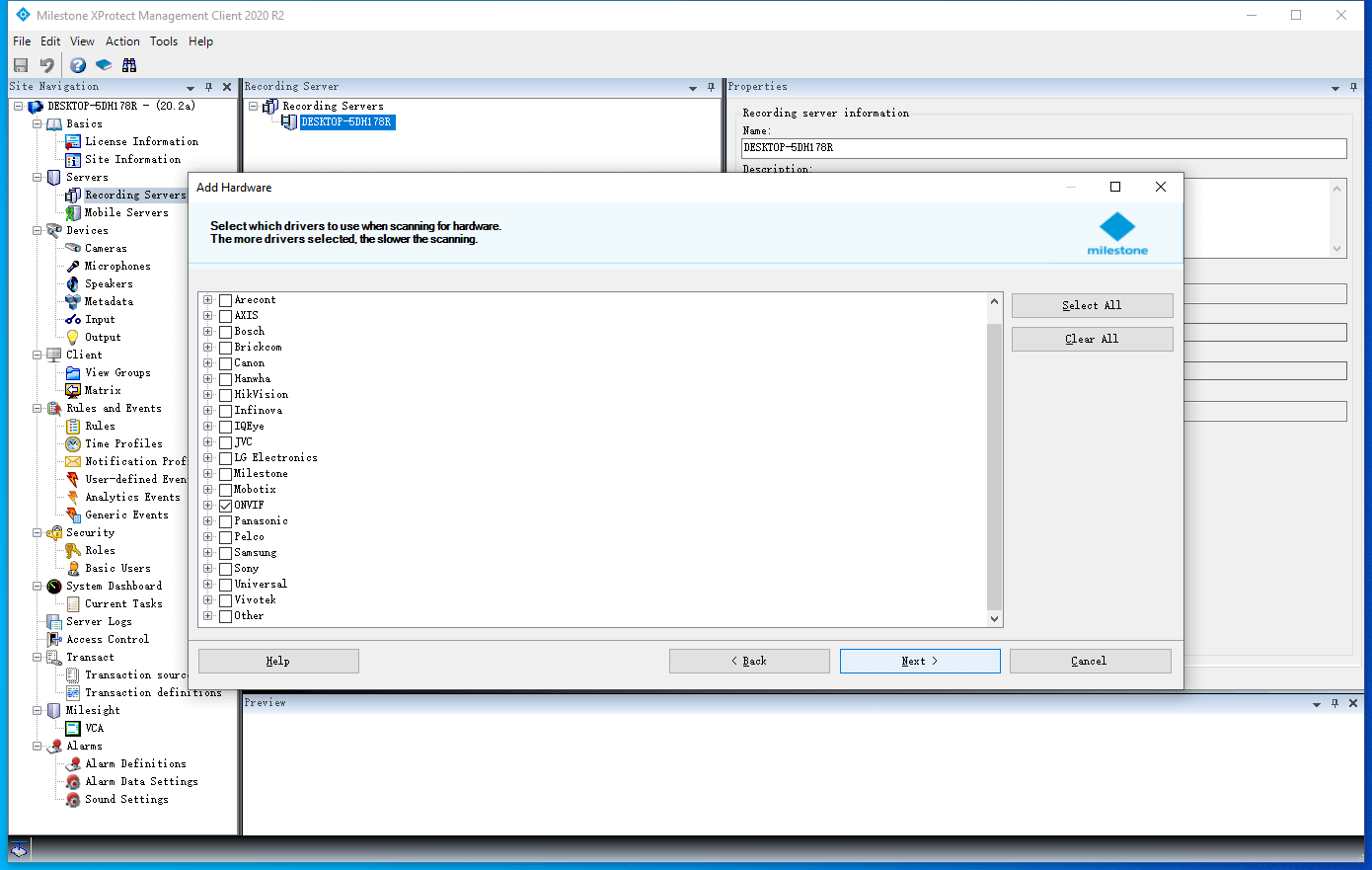

Step 5: Select "ONVIF" and click "Next" .

MIP Plugin

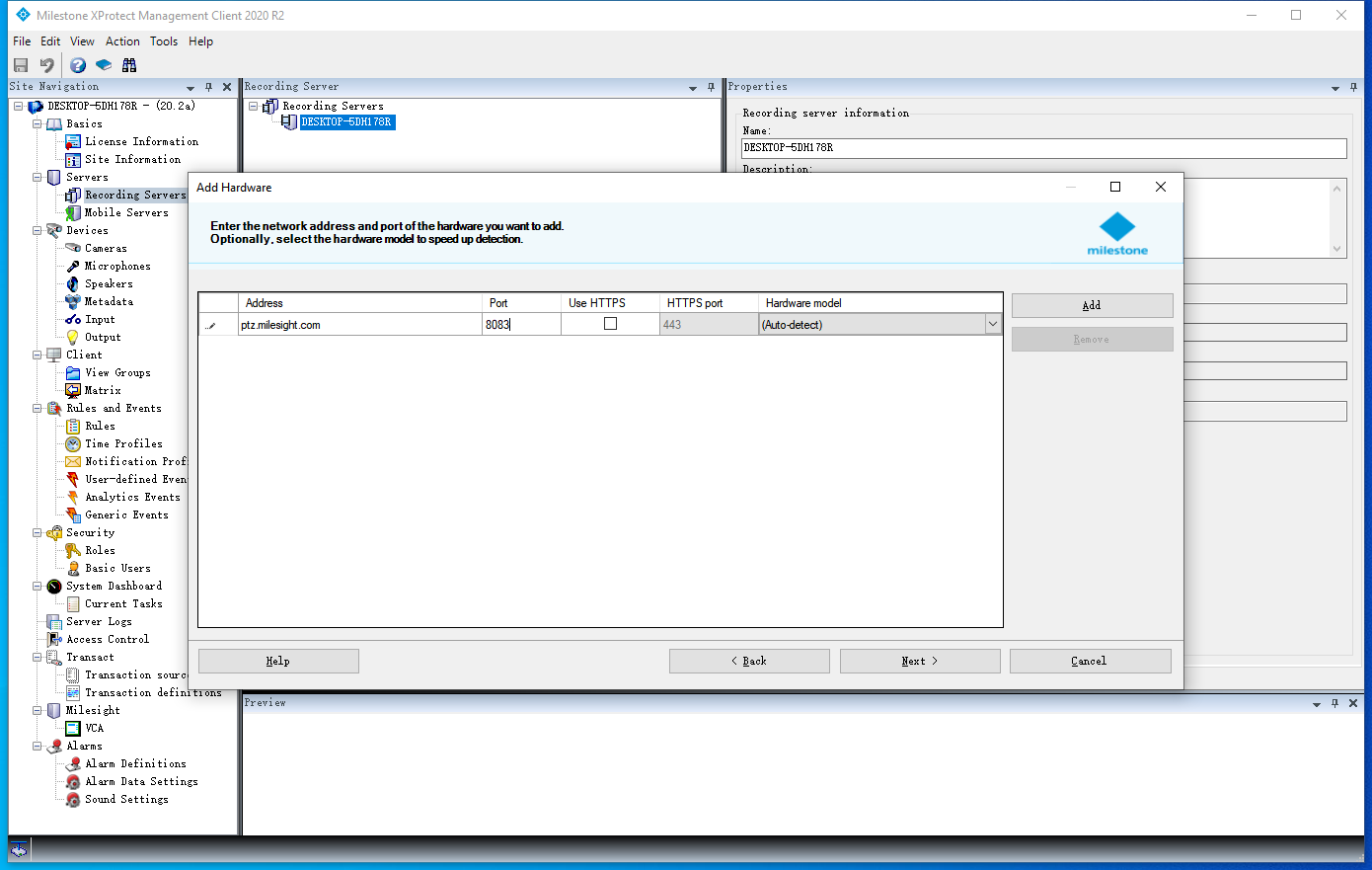

Step 6: Input address and port of the camera and click "Next" .

MIP Plugin

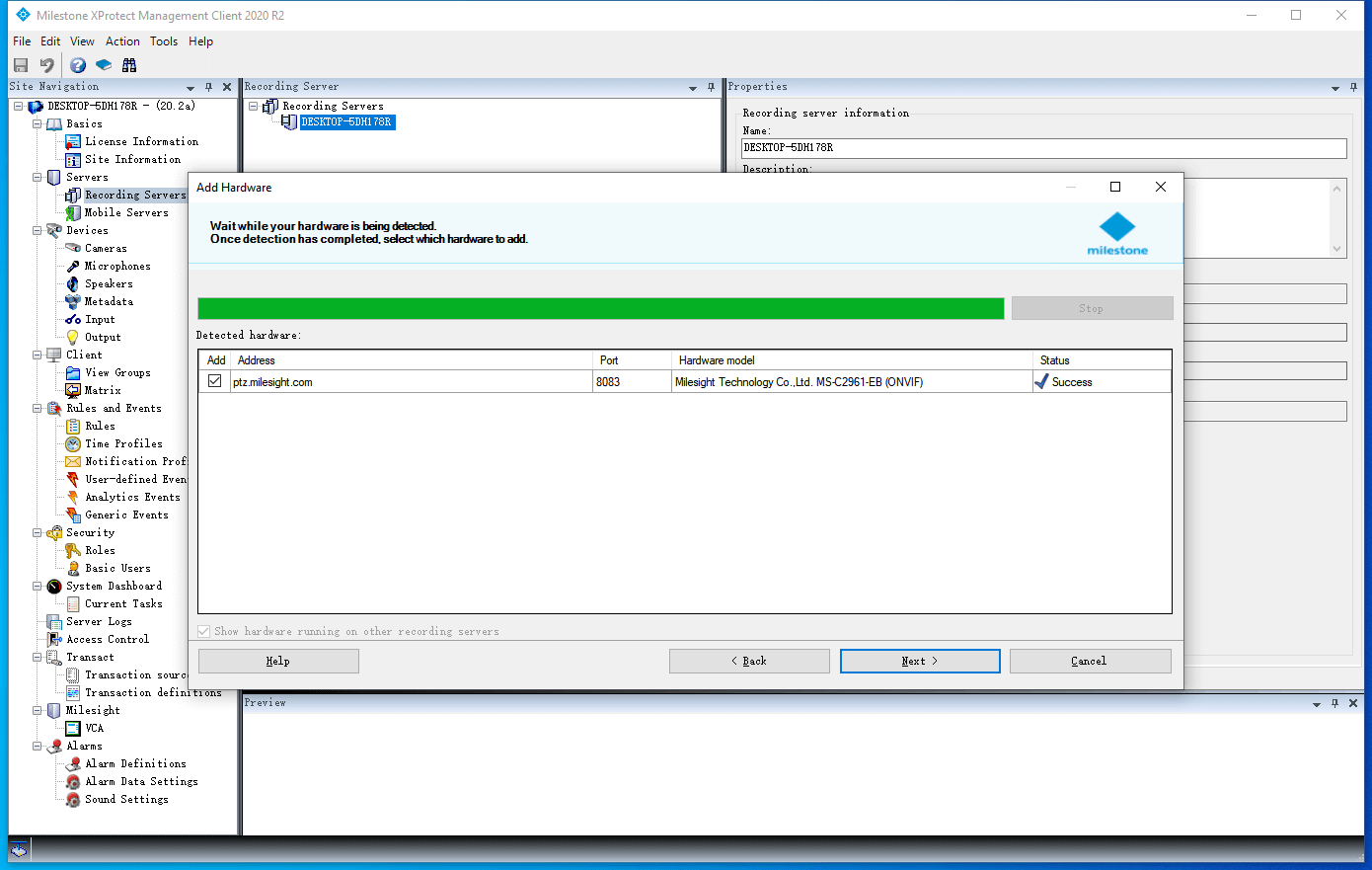

Step 7: Select cameras that you want to add and click "Next" .

MIP Plugin

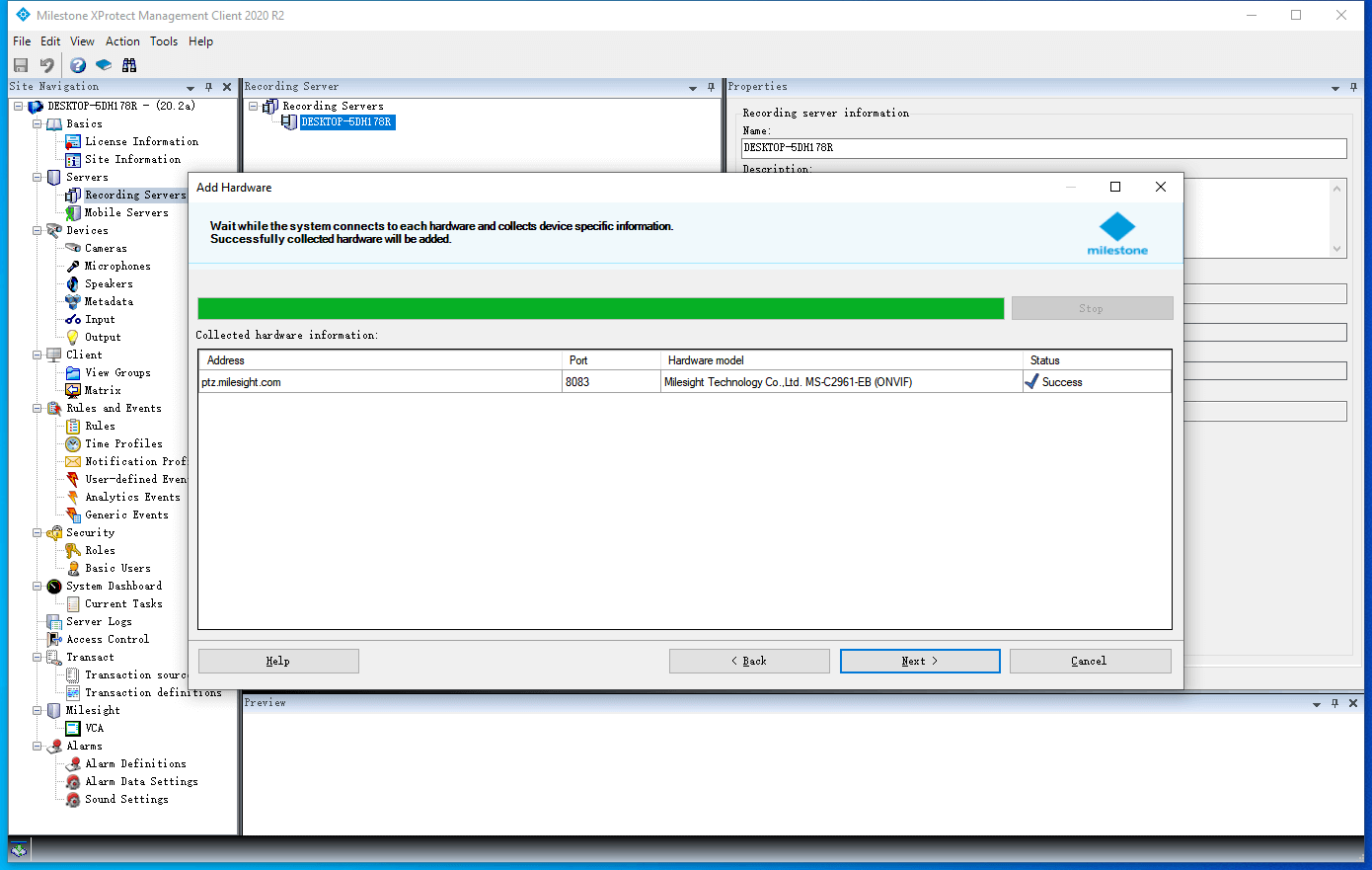

Step 8: Click "Next" .

MIP Plugin

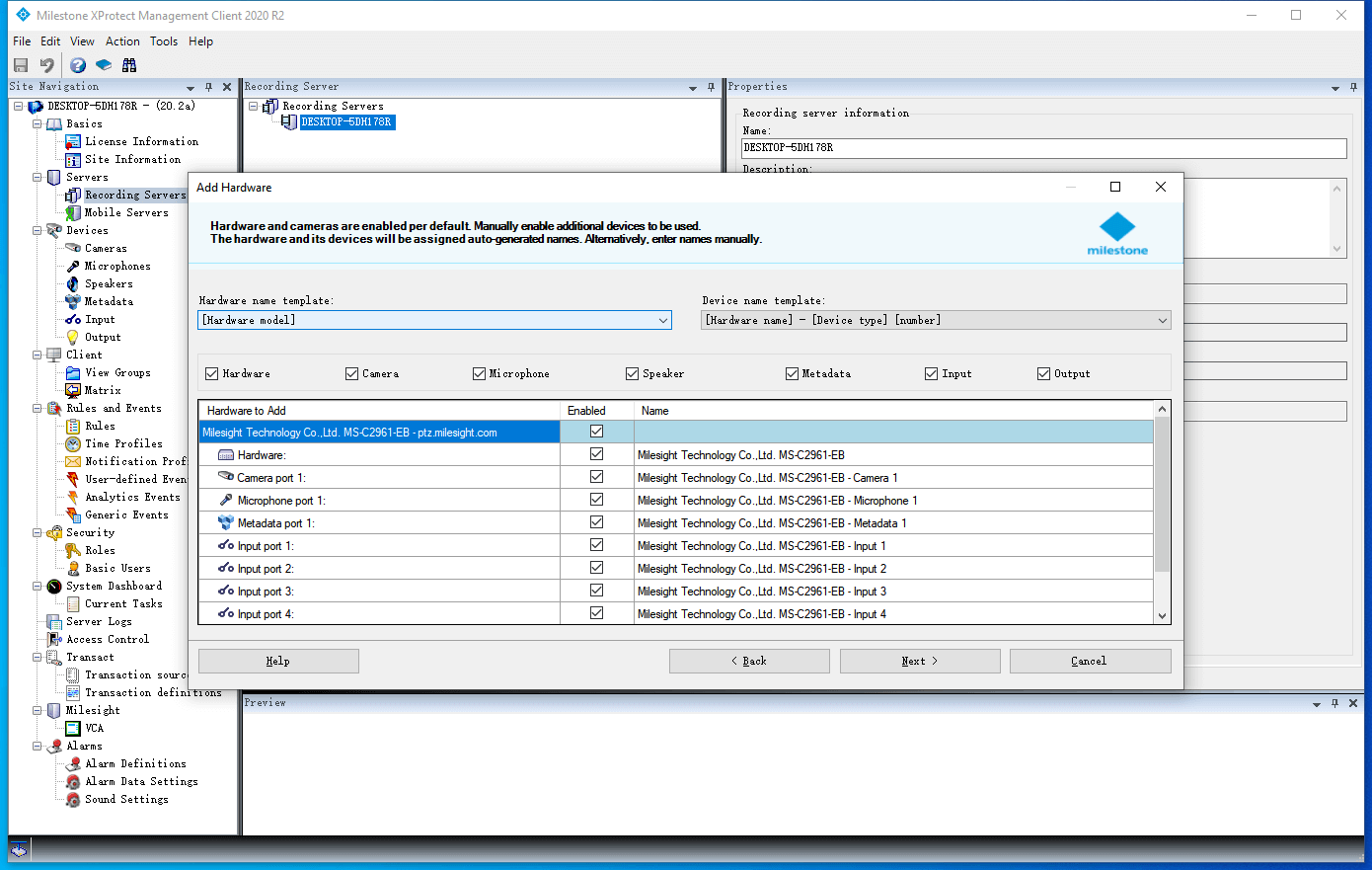

Step 9: Select the devices to enable, set the name template, and click "Next" .

MIP Plugin

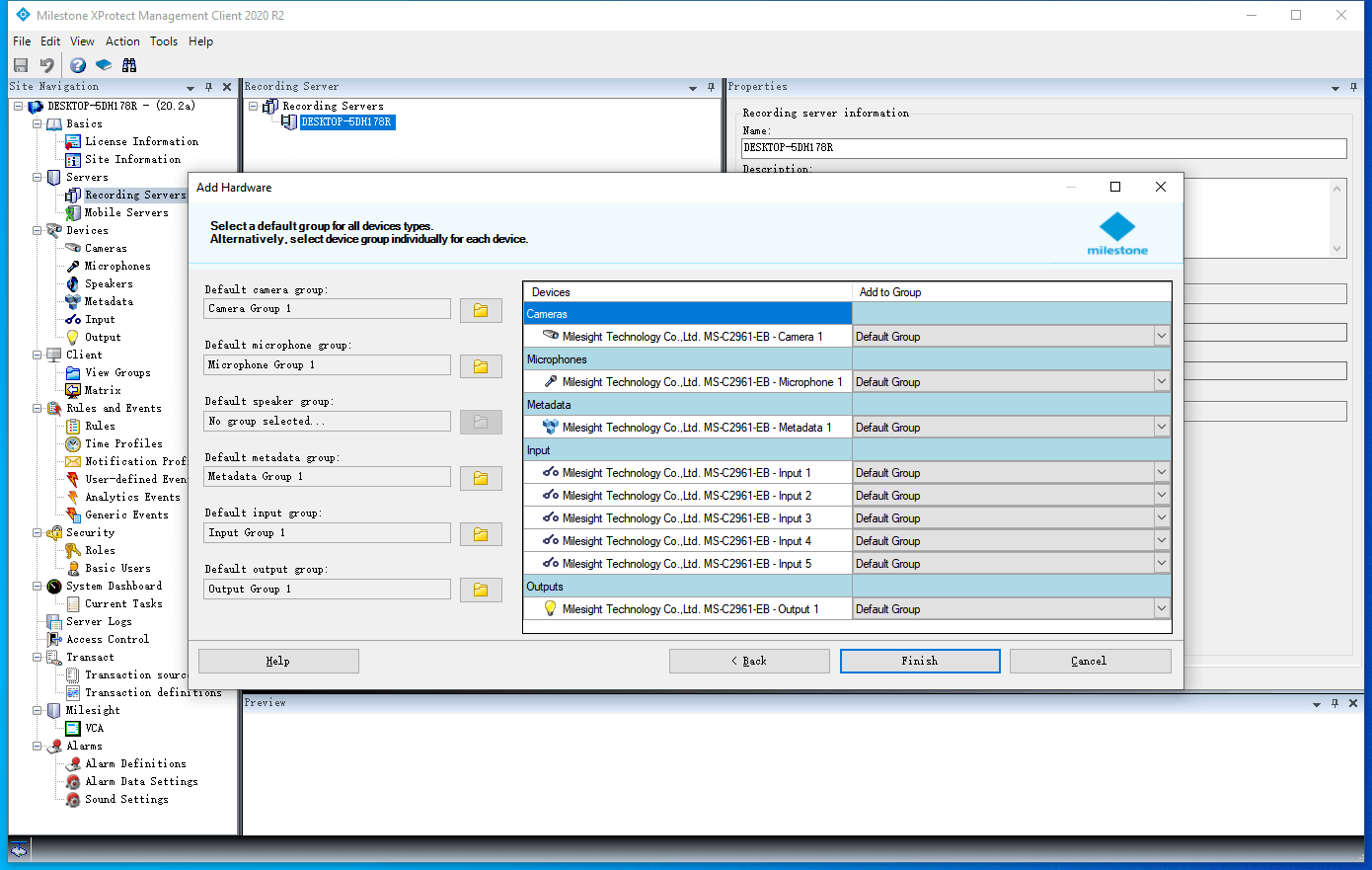

Step 10: Select a group for each added devices, and click "Finish" .

MIP Plugin

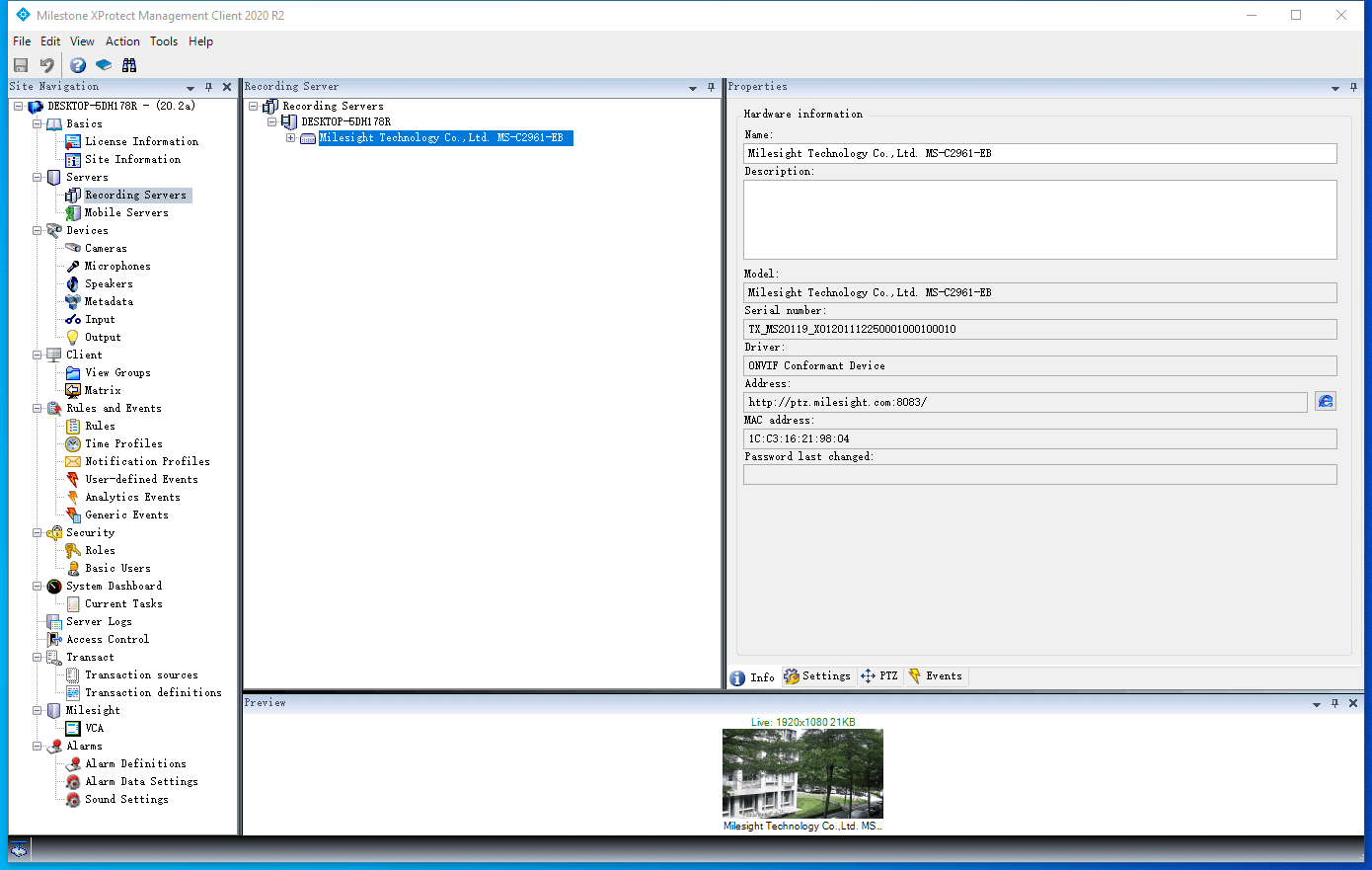

The added devices will be listed in the recording server list. You can view the properties and preview of the cameras.

MIP Plugin

Ⅴ. How to Use Plugin on Management Client

Precondition

Make sure you have added a camera, If not, please add a camera first.

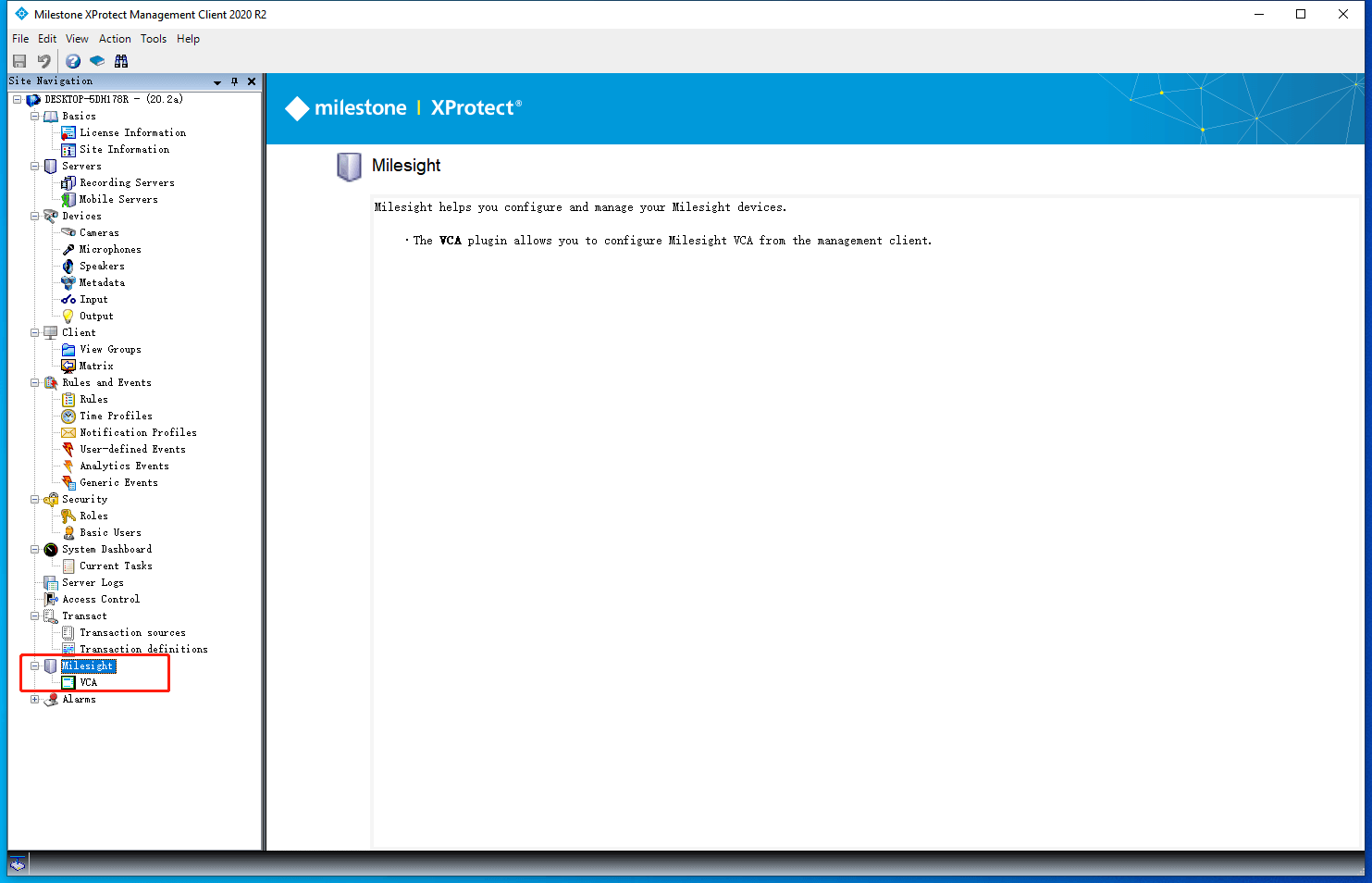

The plugin is marked in red box. "Milesight" is the instruction about the plugin. "VCA" is the plugin for using VCA.

MIP Plugin
Note:

You need to click "VCA" after you add or delete cameras, so the plugin can take the updates.

Display of the VCA Plugin is as Below:

MIP Plugin

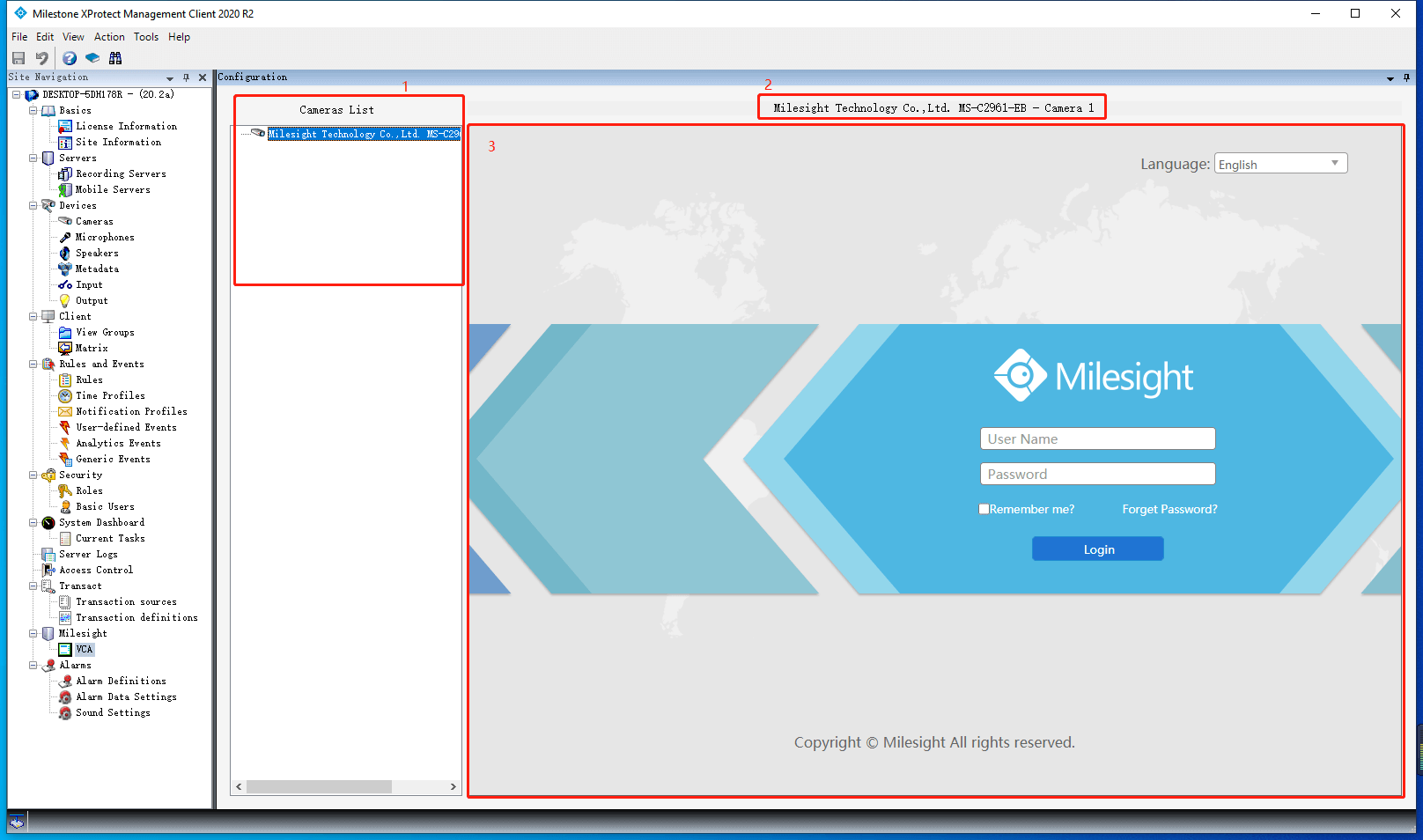

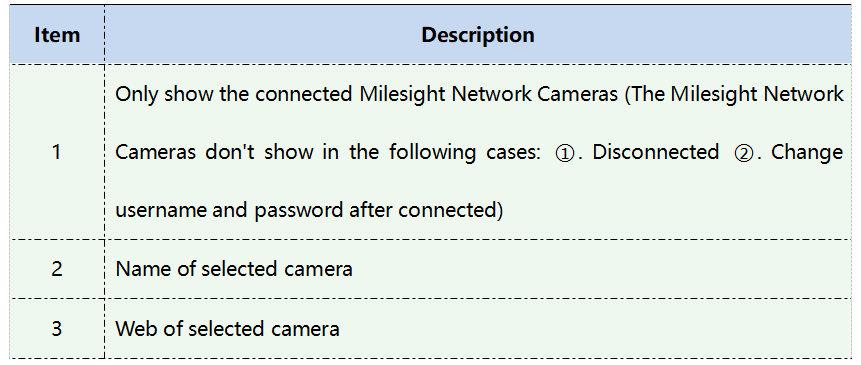

Interface Description:

MIP Plugin

How to Set "Rule" and "Alarm" about VCA Event

Set "Rule" (Take Advanced Motion Detection for example)

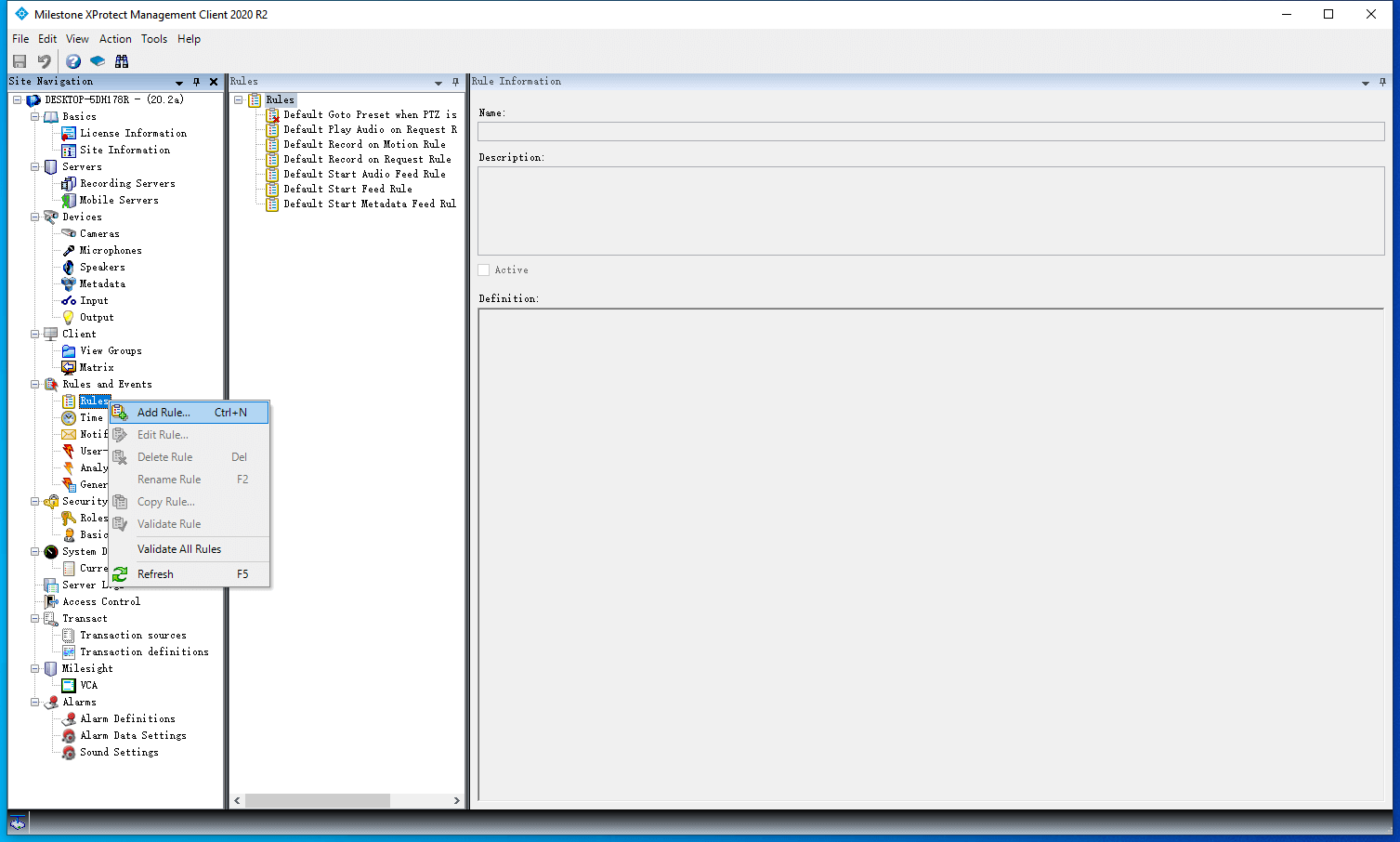

Step 1: Right click "Rules and Events" -> "Rules" in the Site Navigation Panel and click "Add rule..." .

MIP Plugin

Step 2: Set type of rule.

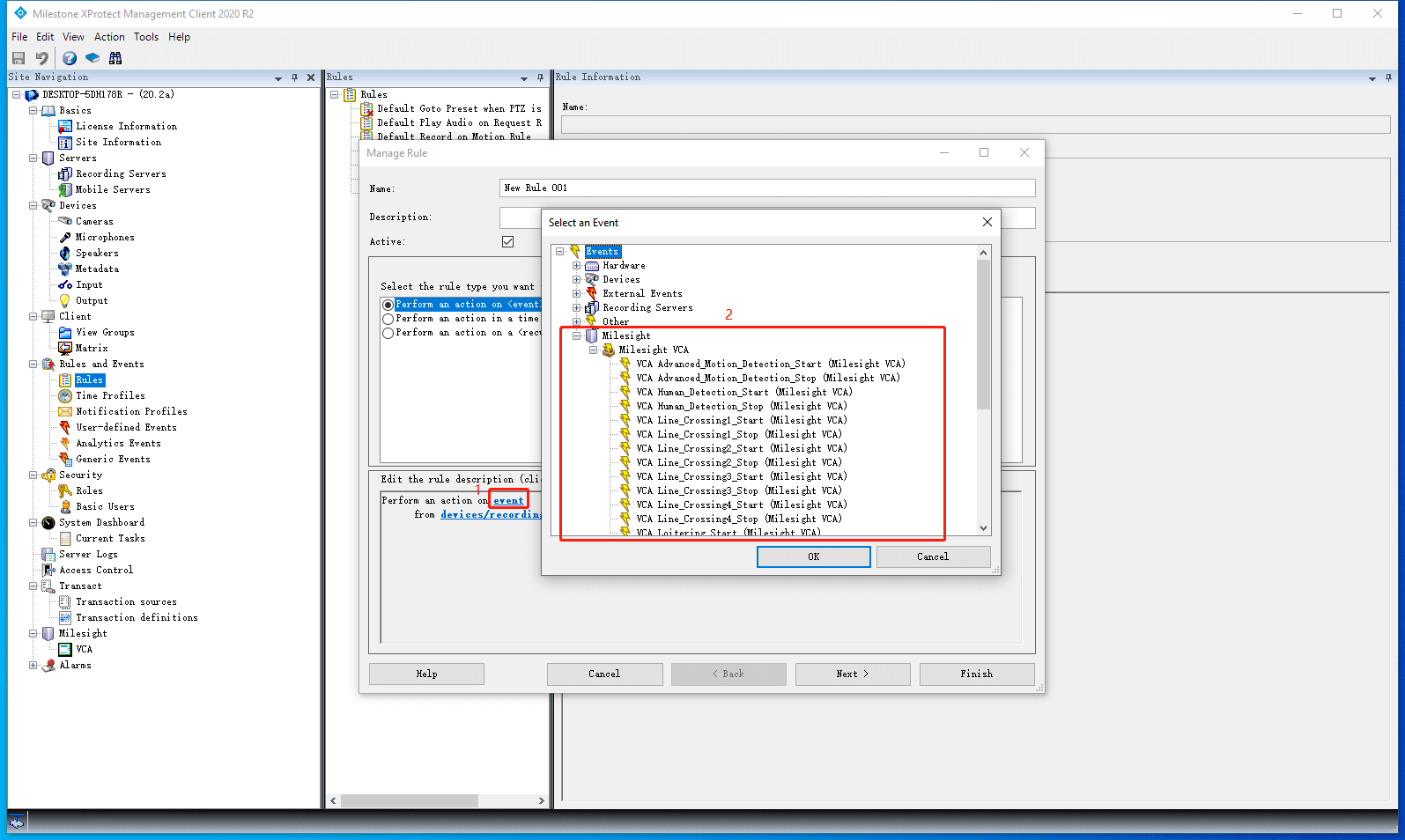

① Click "event" to open the Select an Event dialog, click "Milesight" --> "Milesight VCA" and select one of VCA events, click "OK" to save selection and close the dialog.

MIP Plugin

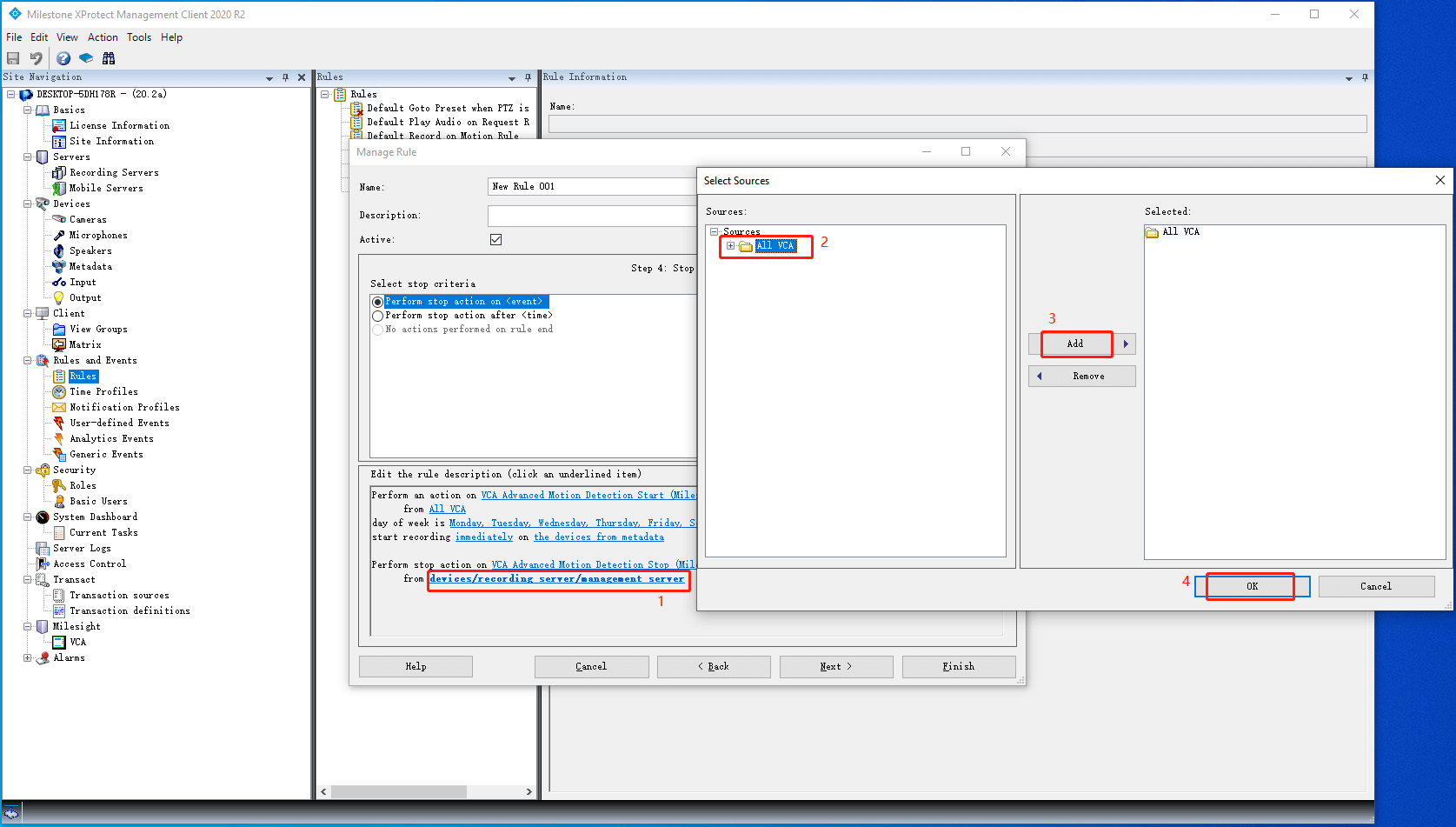

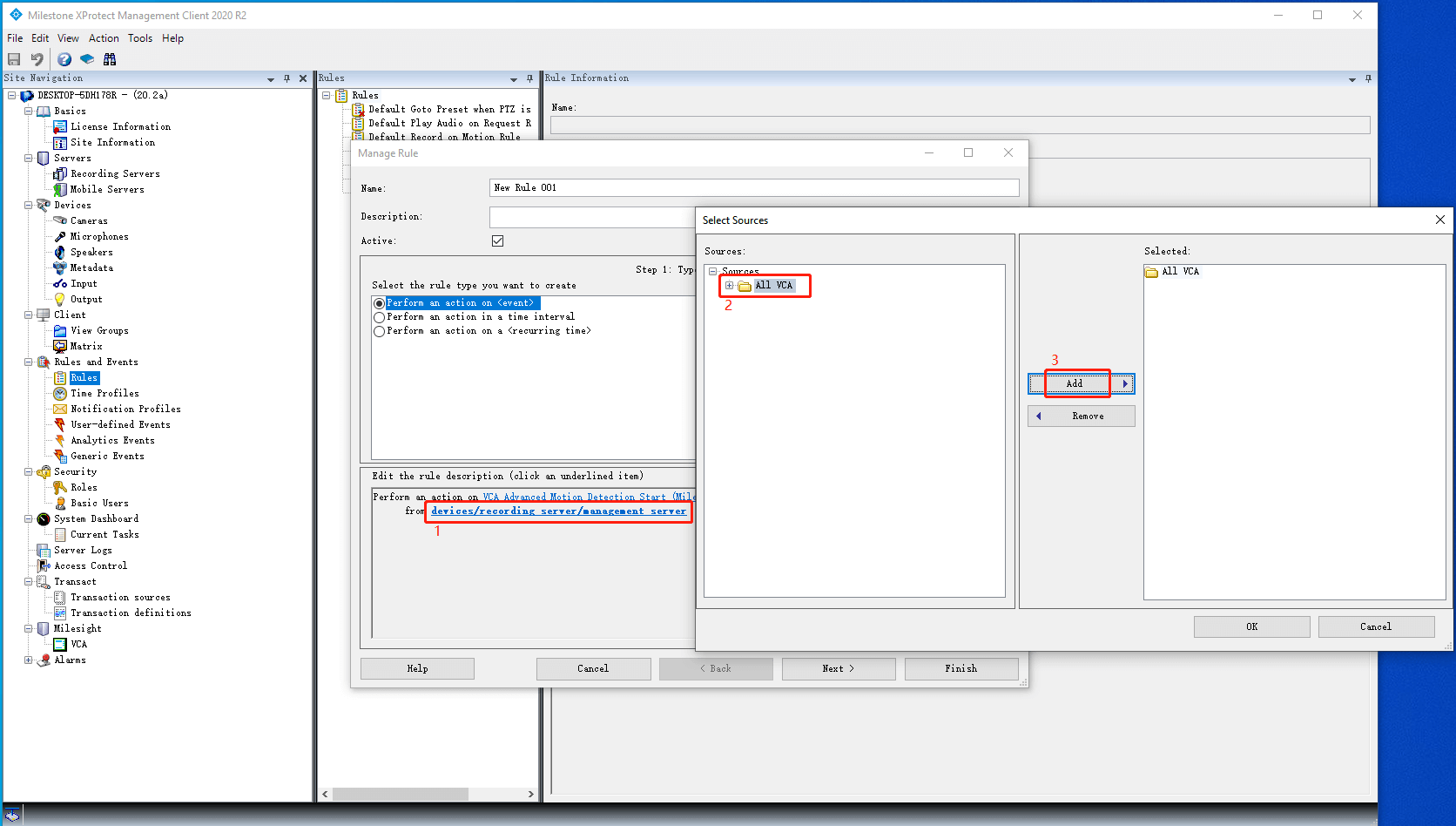

② Click "devices/recording server/management server" to open the Select Sources dialog, select "All VCA" and click "Add" to add the selected option to the right panel, click "OK" to save the selection and close the dialog.

MIP Plugin

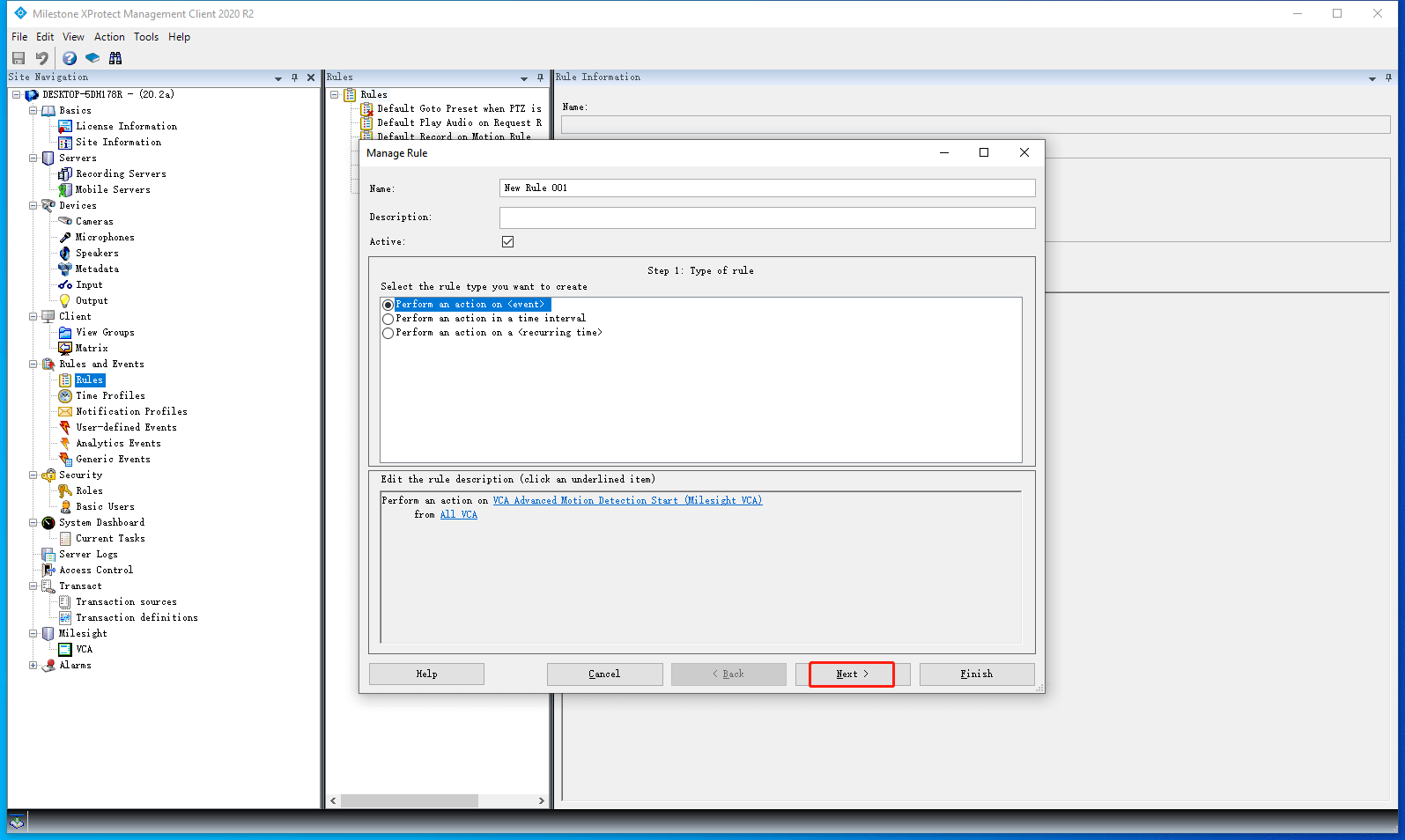

③ Click "Next" .

MIP Plugin

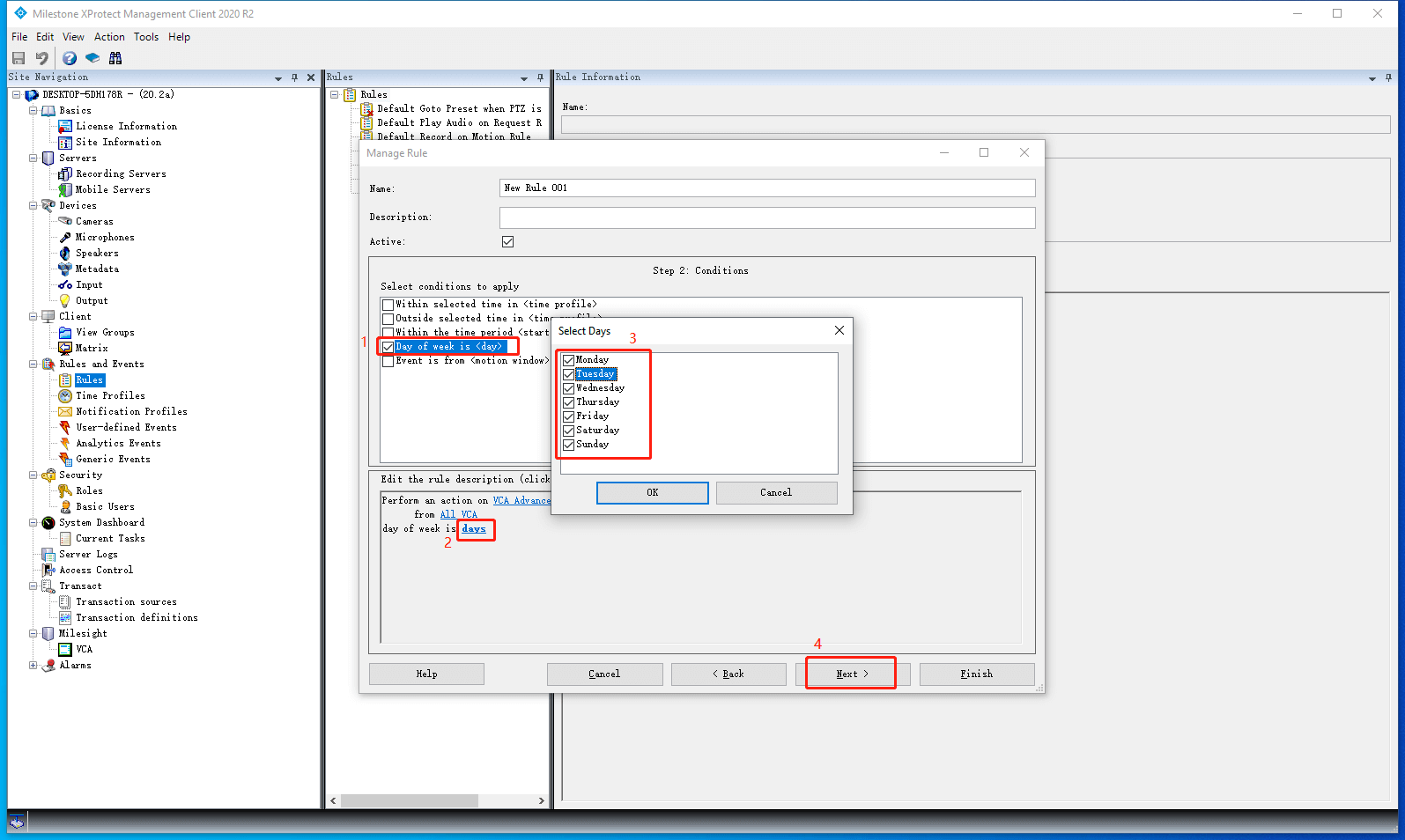

Step 3: Set conditions.

MIP Plugin

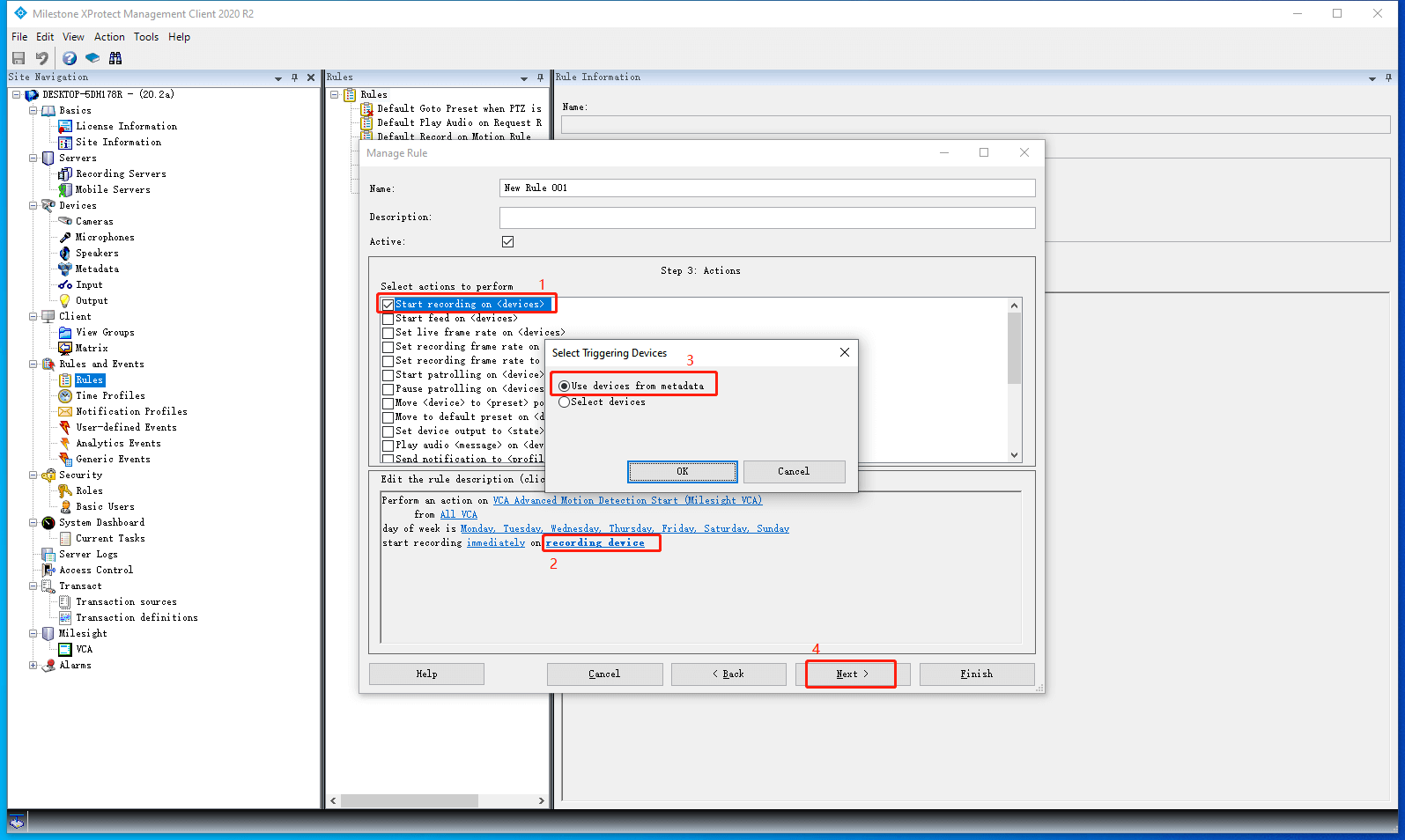

Step 4: Set actions.

MIP Plugin

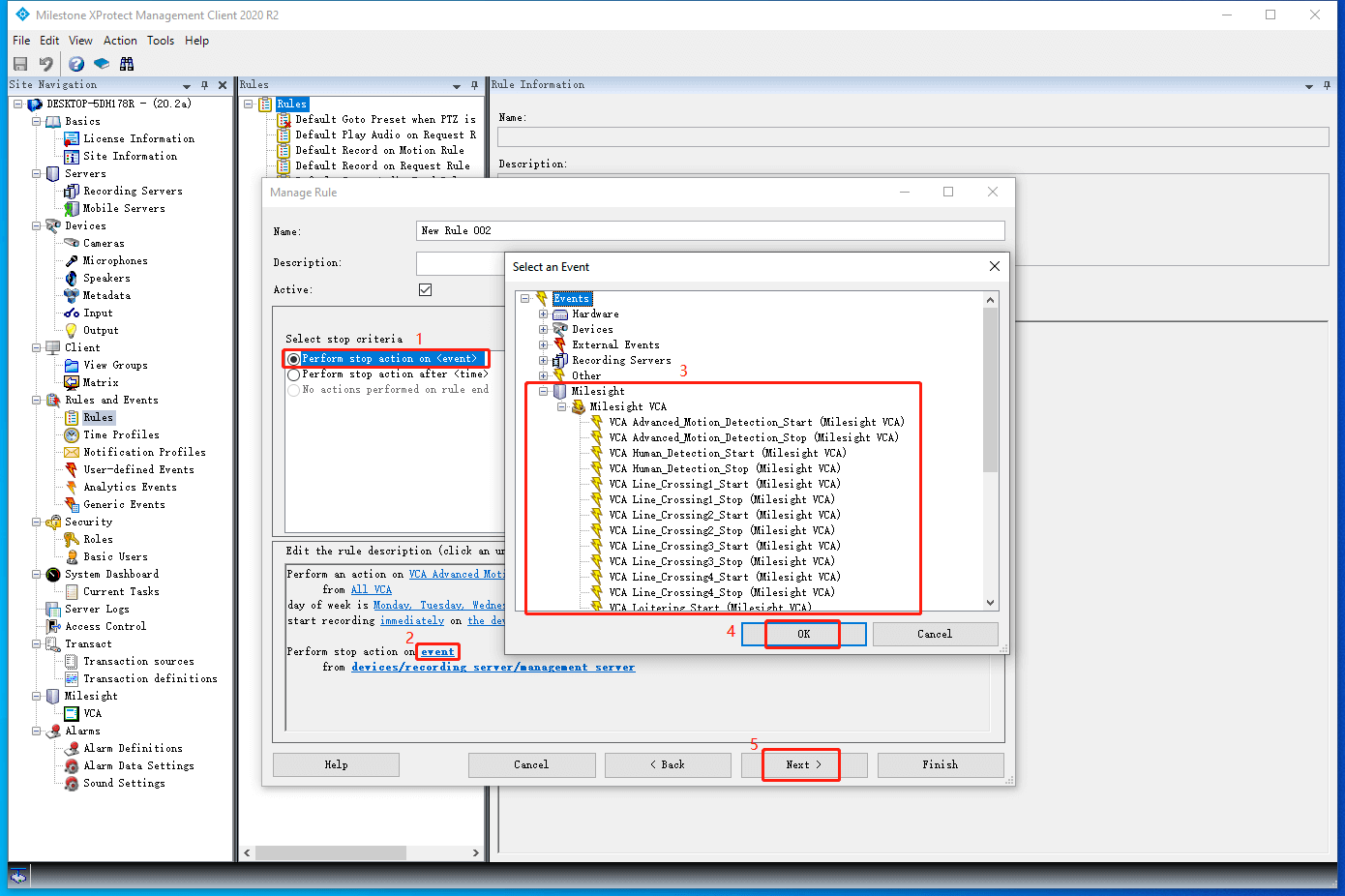

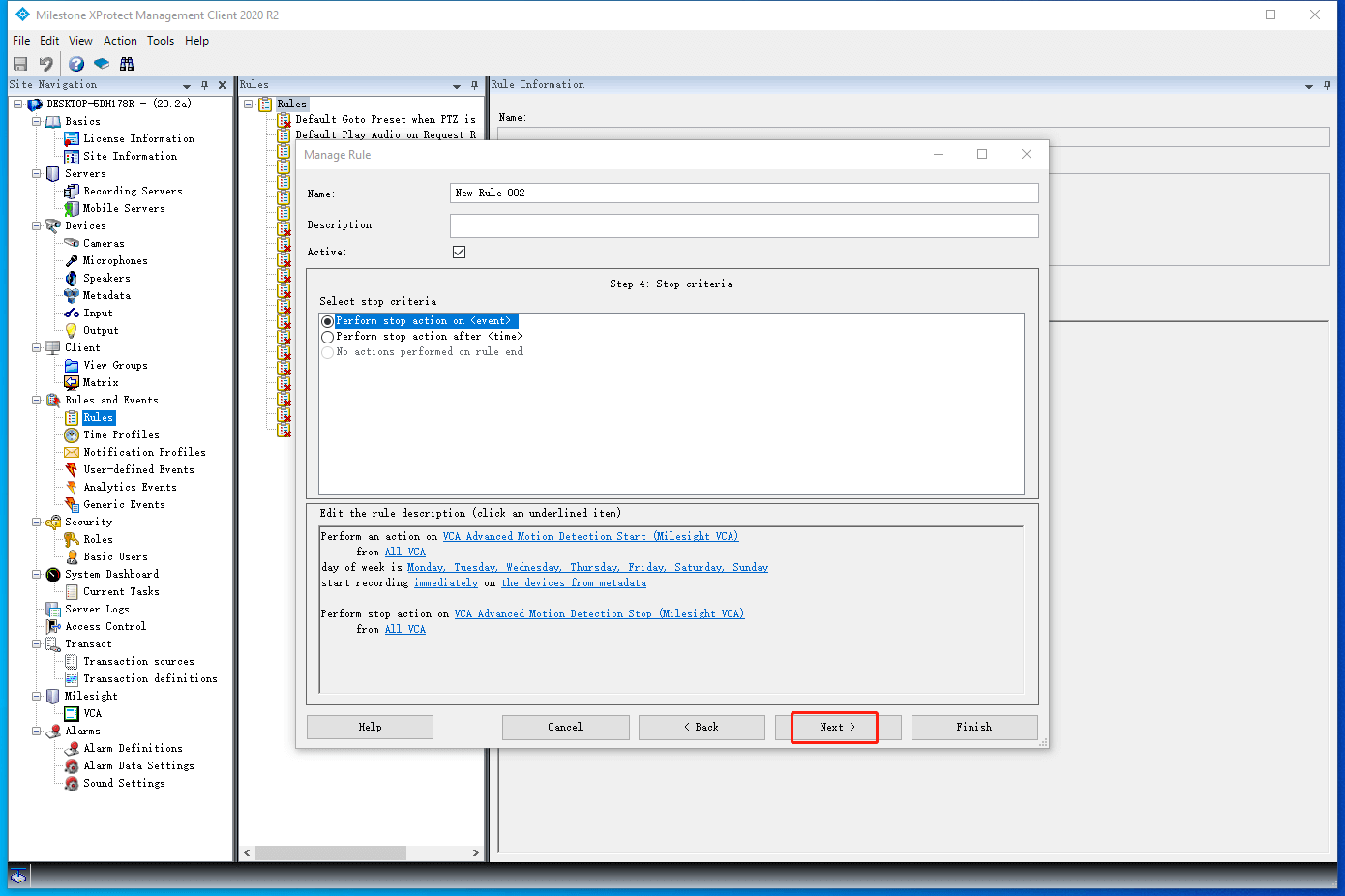

Step 5: Set stop criteria.

MIP Plugin
MIP Plugin
MIP Plugin

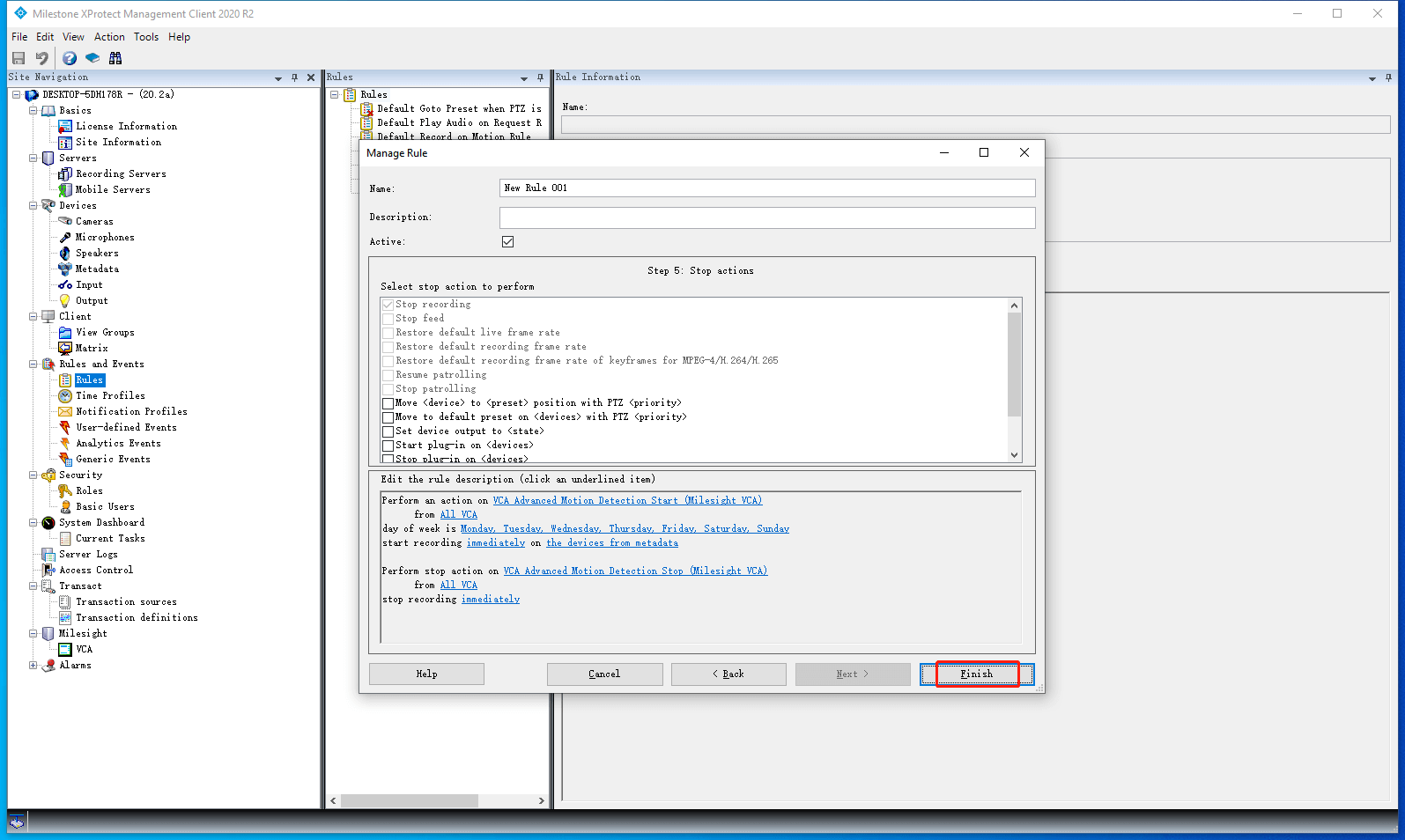

Step 6: Set stop actions. After all is done, click "Finish" .

MIP Plugin

2.Set "Alarm Definitions"

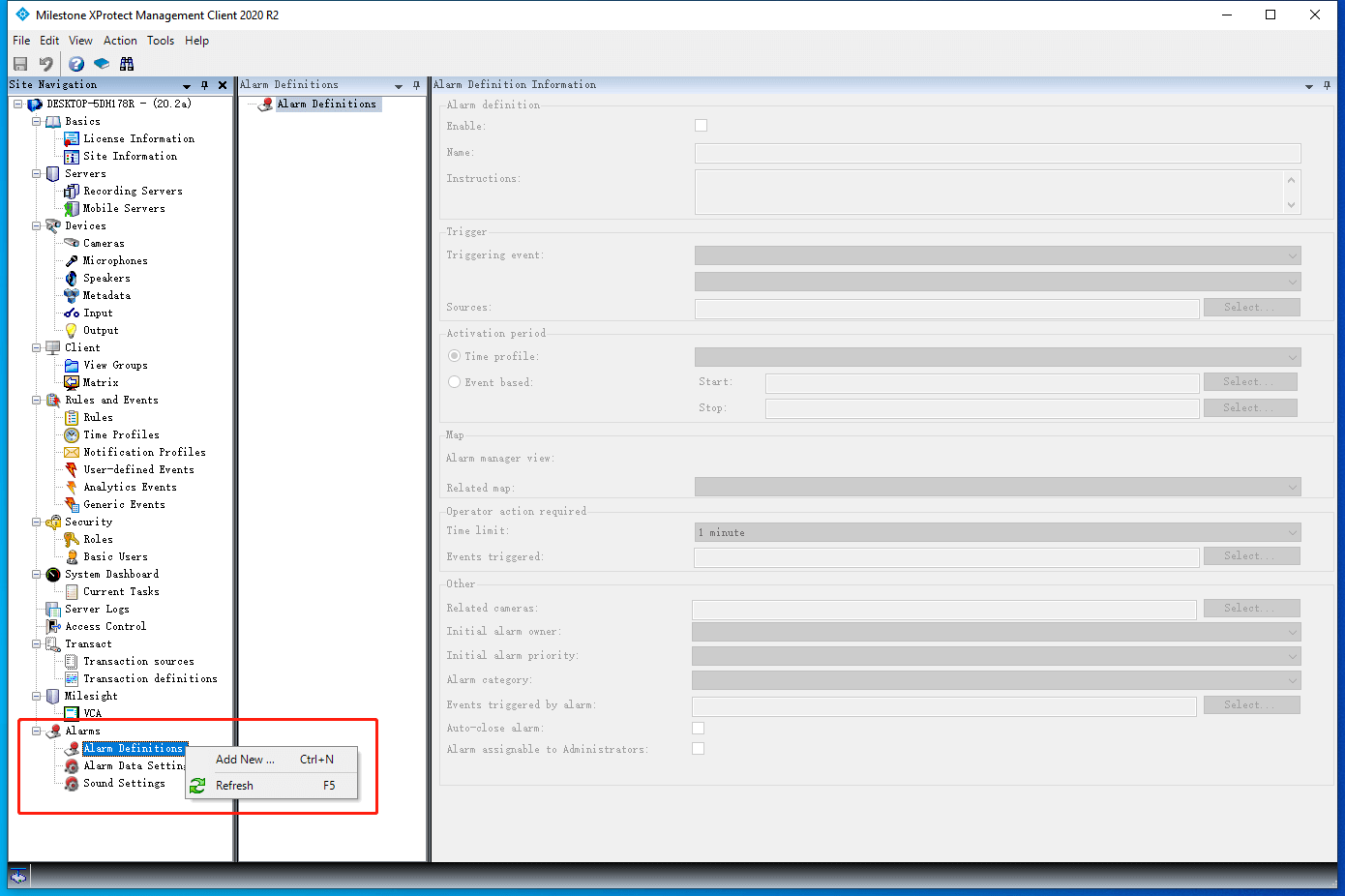

Step 1: Right click "Alarms" -> "Alarm Definitions" , click "Add New..." .

MIP Plugin

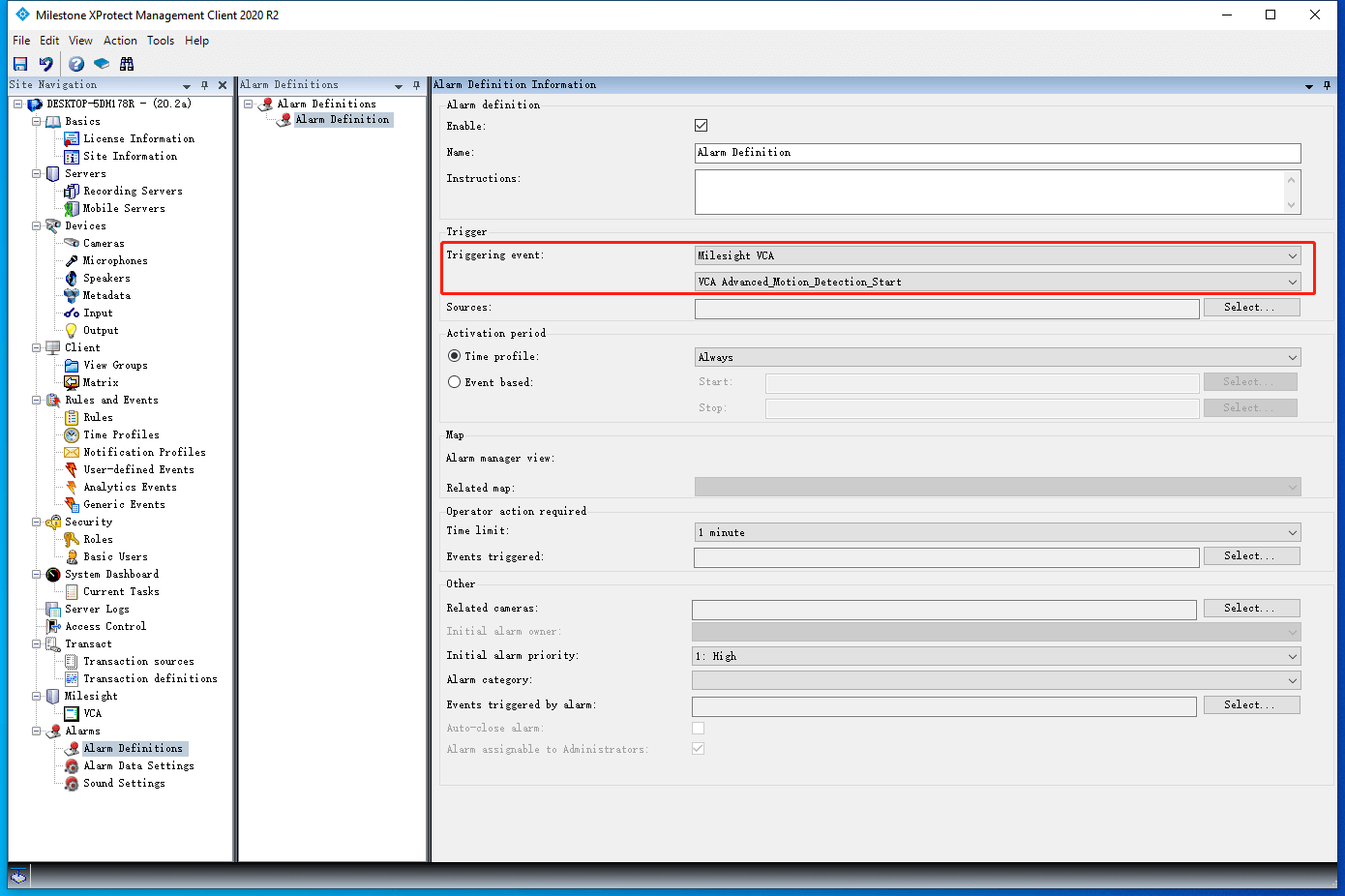

Step 2: Select "Milesight VCA" and one of VCA events in the "Triggering event" field.

MIP Plugin

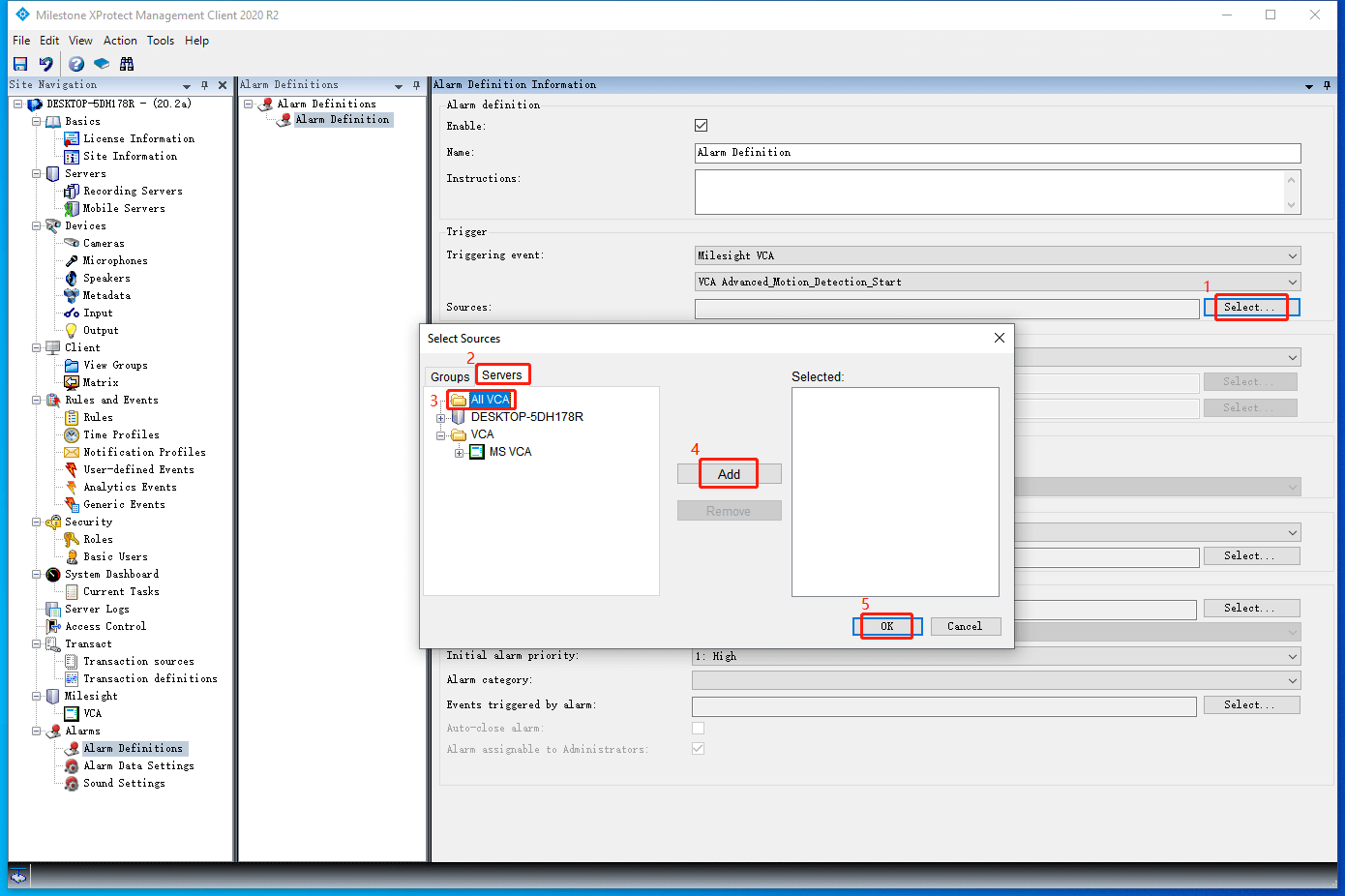

Step 3: Click "select..." to open the Select Sources dialog, select "All VCA" or "MS VCA" and click "Add" to add the selected option to the right panel, click "OK" to save the selection and close the dialog.

MIP Plugin

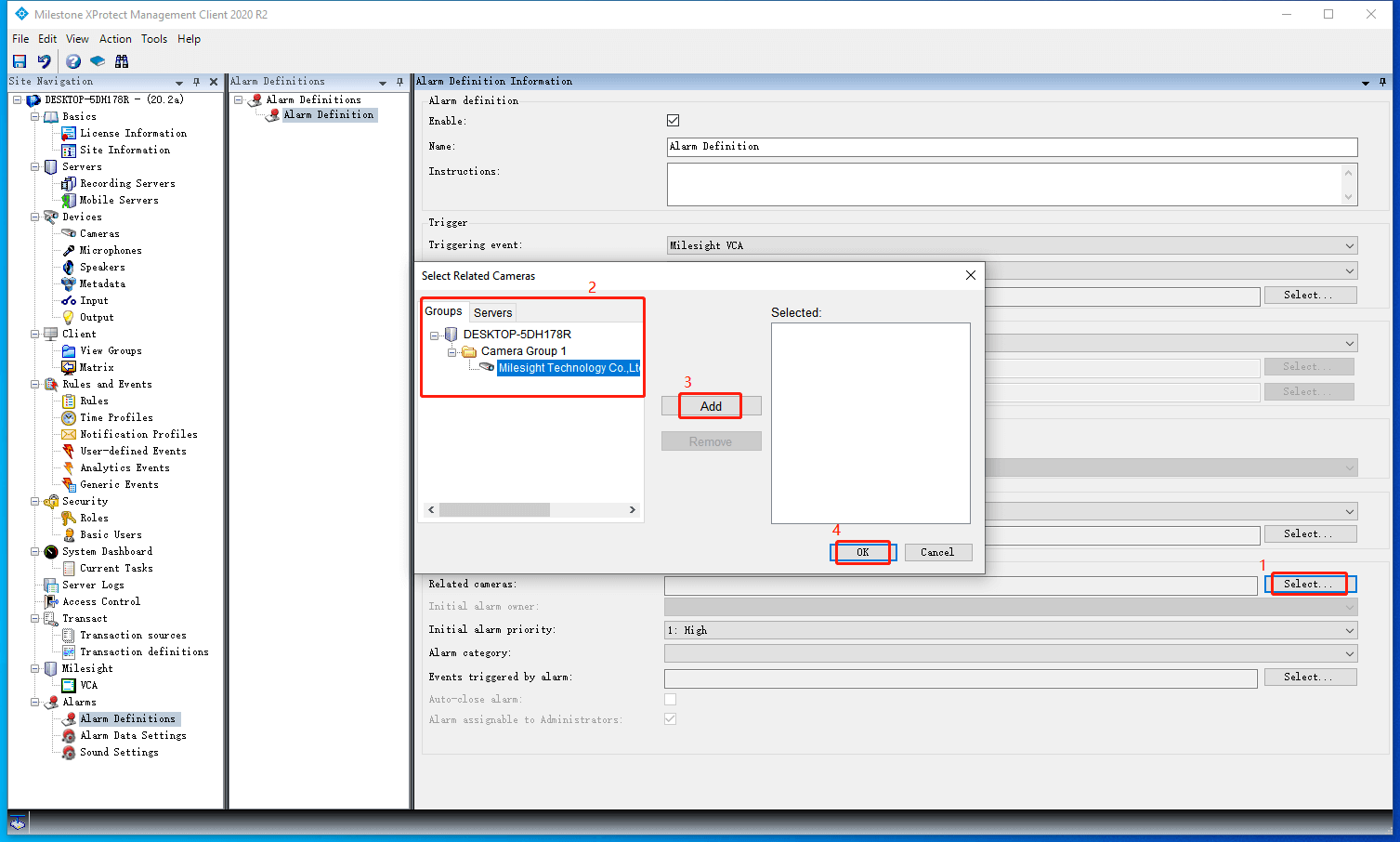

Step 4: Click "select..." to open the Select Related Cameras dialog, select an added camera in the list and click "Add" to add the selected camera to the right panel, click "OK" to save the selection and close the dialog.

MIP Plugin

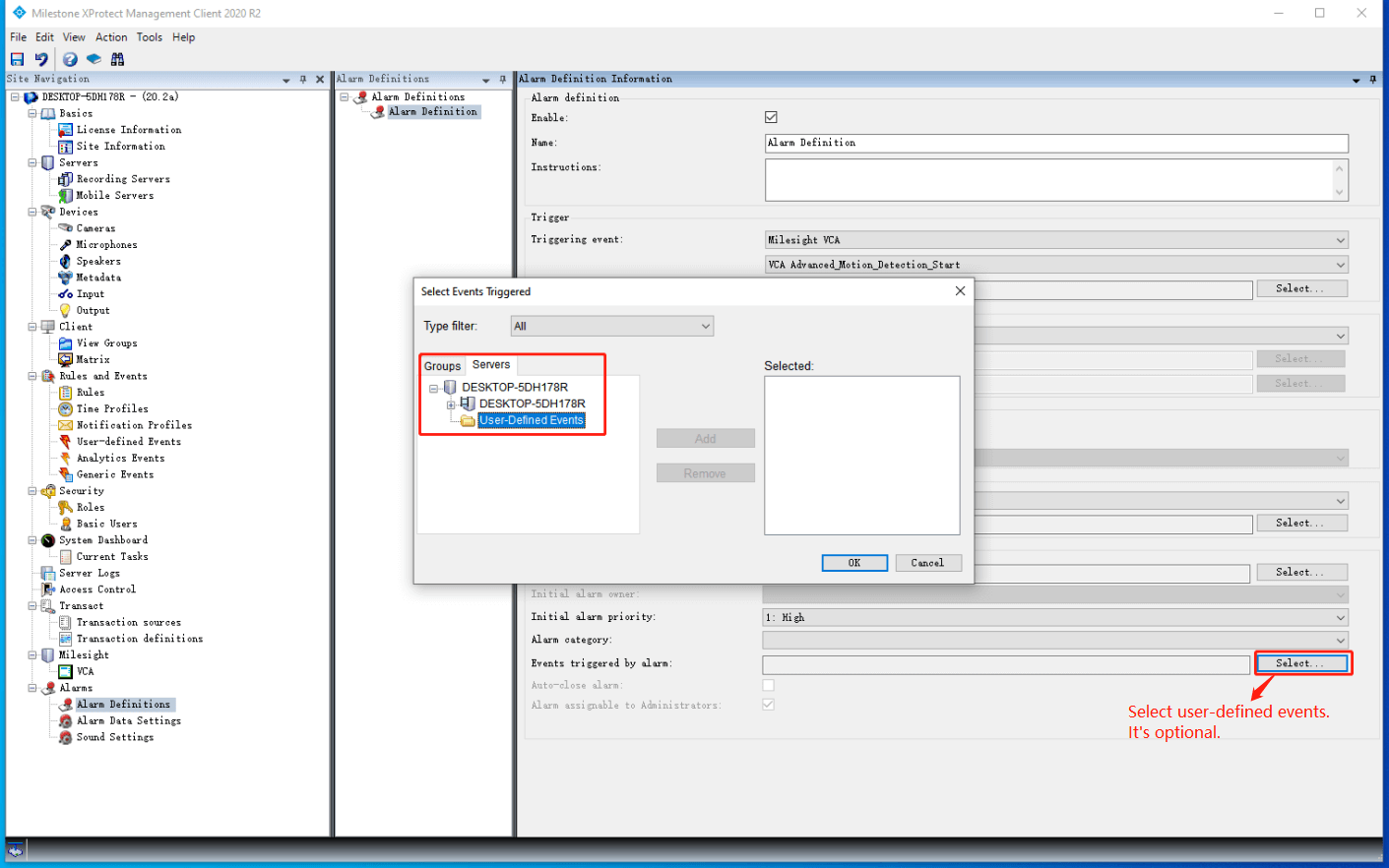

Step5(Optional): Click "select..." to open the Select Events Triggered dialog, select "User-Defined Events" and click "Add" to add the selected option to the right panel, click "OK" to save the selection and close the dialog.

MIP Plugin

Step 6: Click "save" button at the top of the Site Navigation panel to save the settings.

Ⅵ. How to Use Plugin on Smart Client

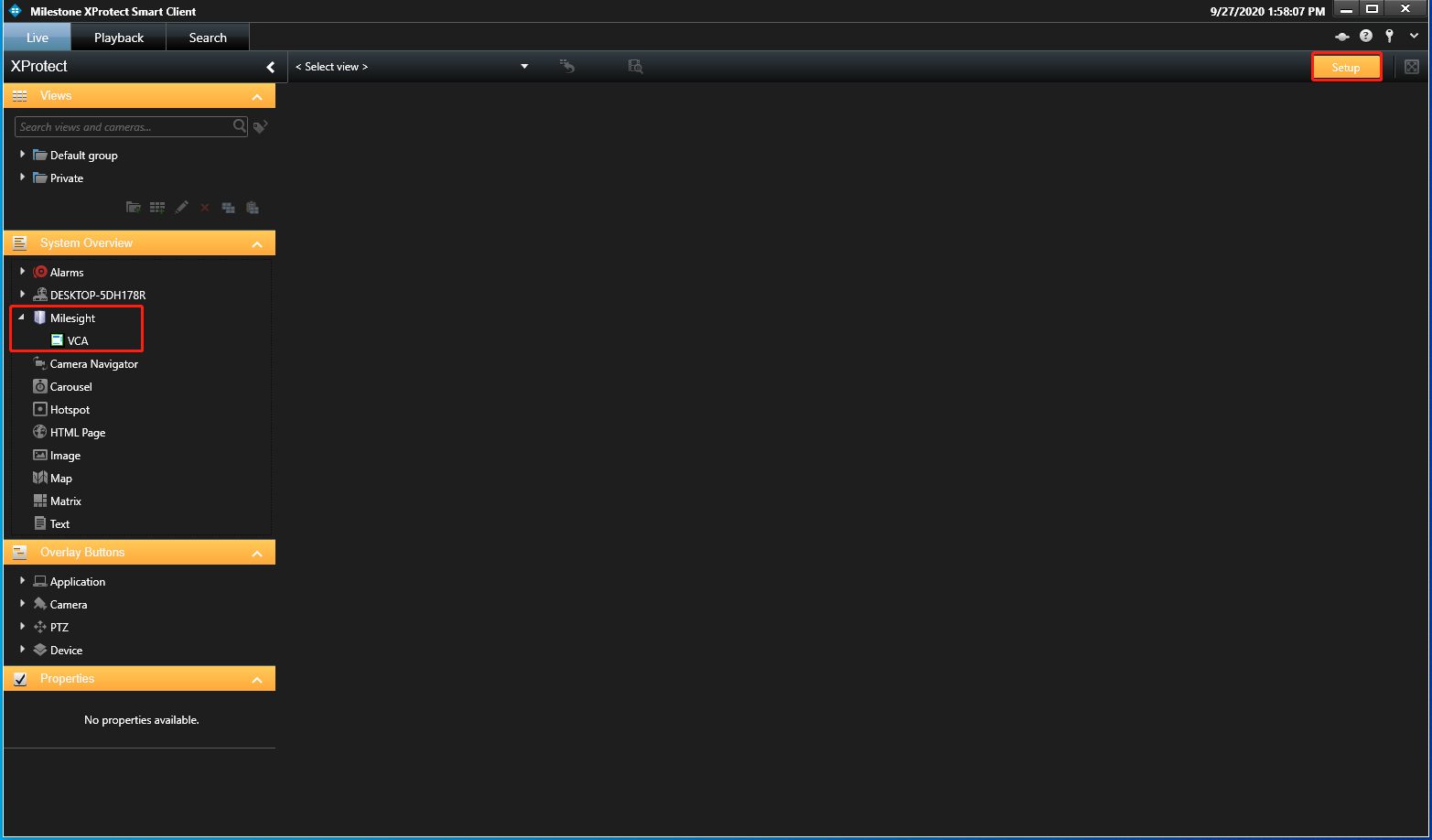

Step 1: Click "Setup" at the top right of homepage, in setup mode, the plugin is under the System Overview menu.

MIP Plugin

Step 2: Click and drag "VCA" to the selected view. It can be displayed in multiple views.

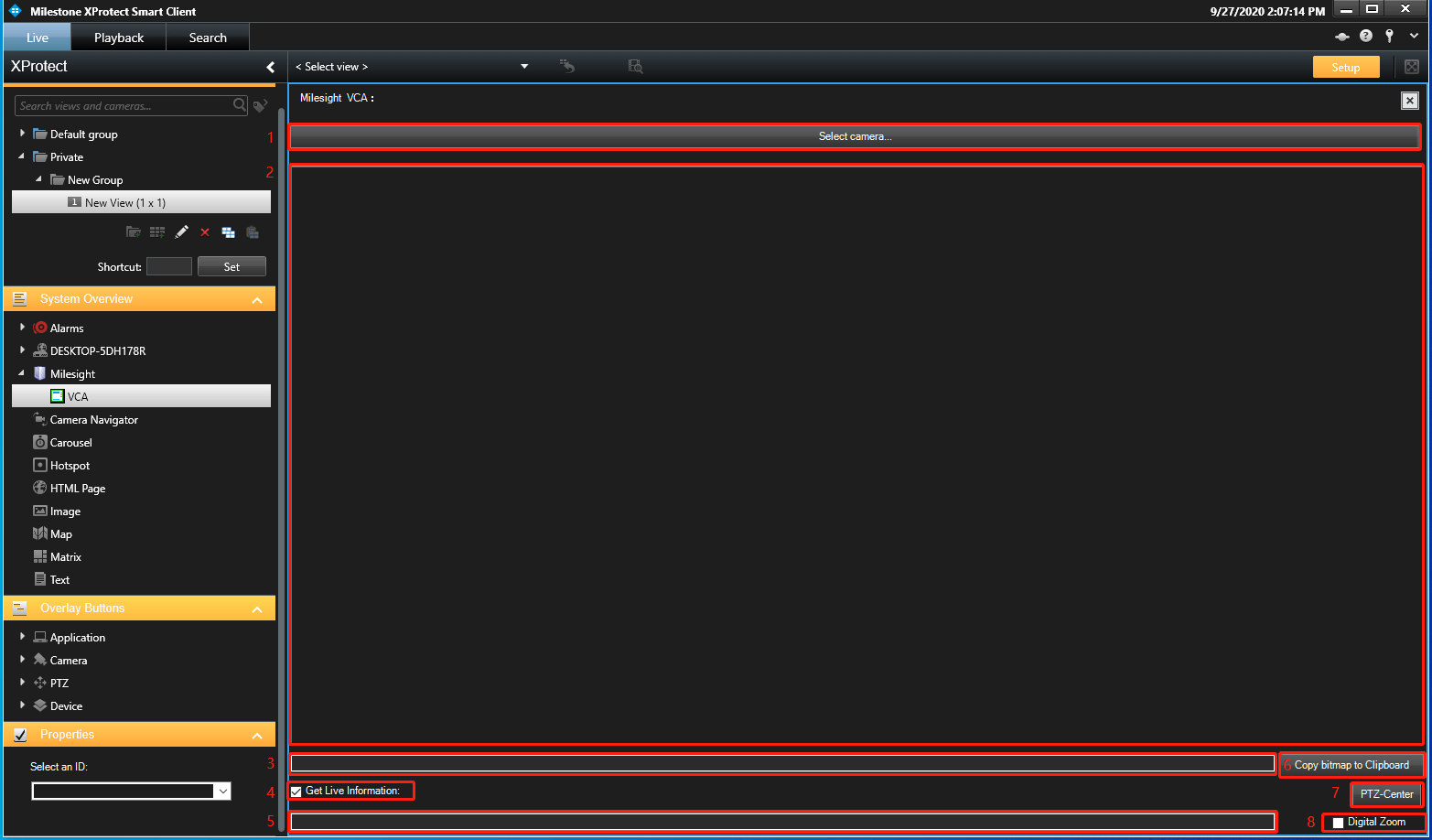

Display of the VCA Plugin is as Below:

MIP Plugin

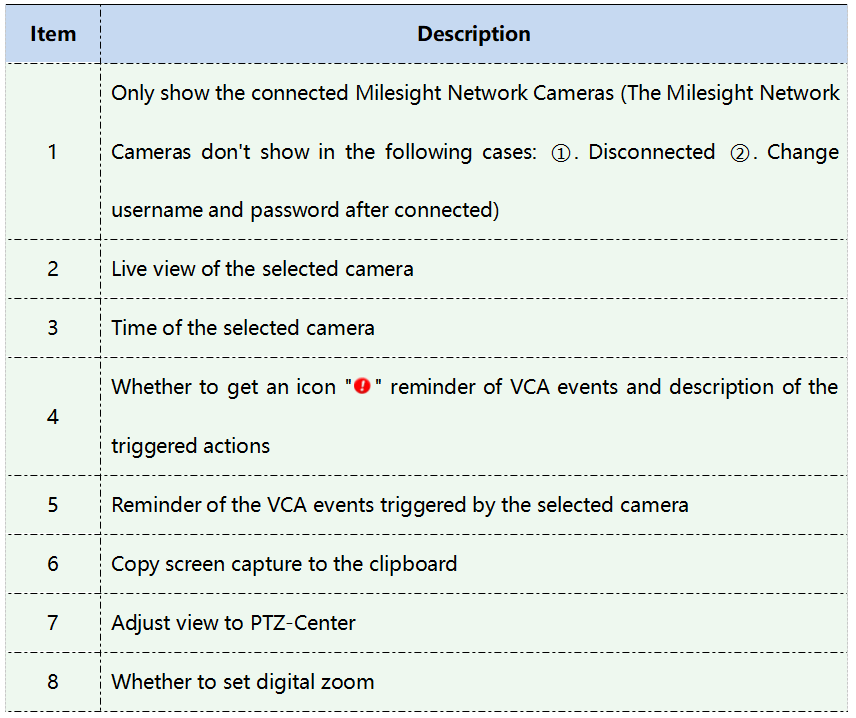

Interface Description:

MIP Plugin
Note:

After you add or delete cameras on Management Client, you need to click "VCA" and then reopen Smart Client, so the Smart Client can synchronize the updates.

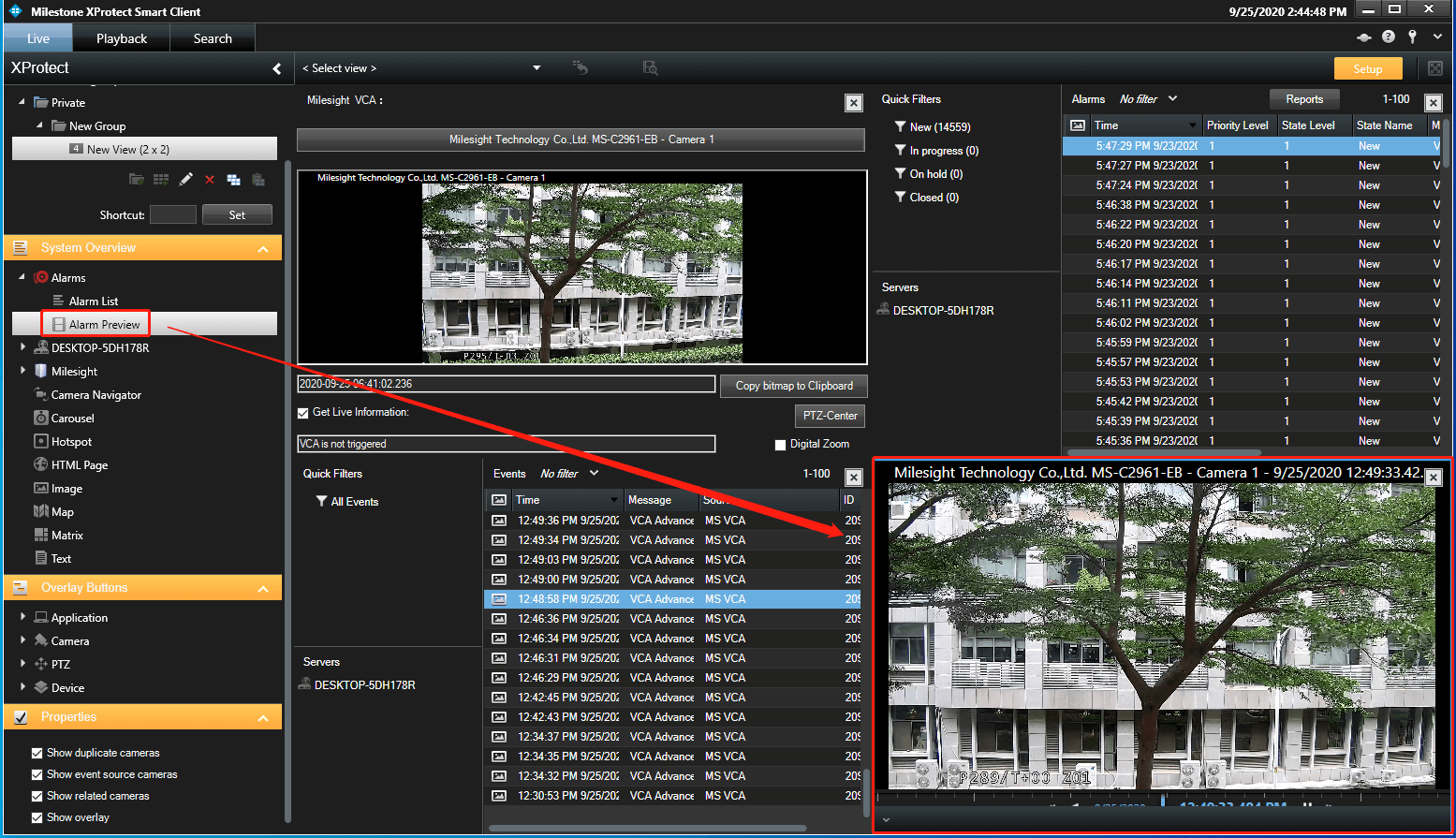

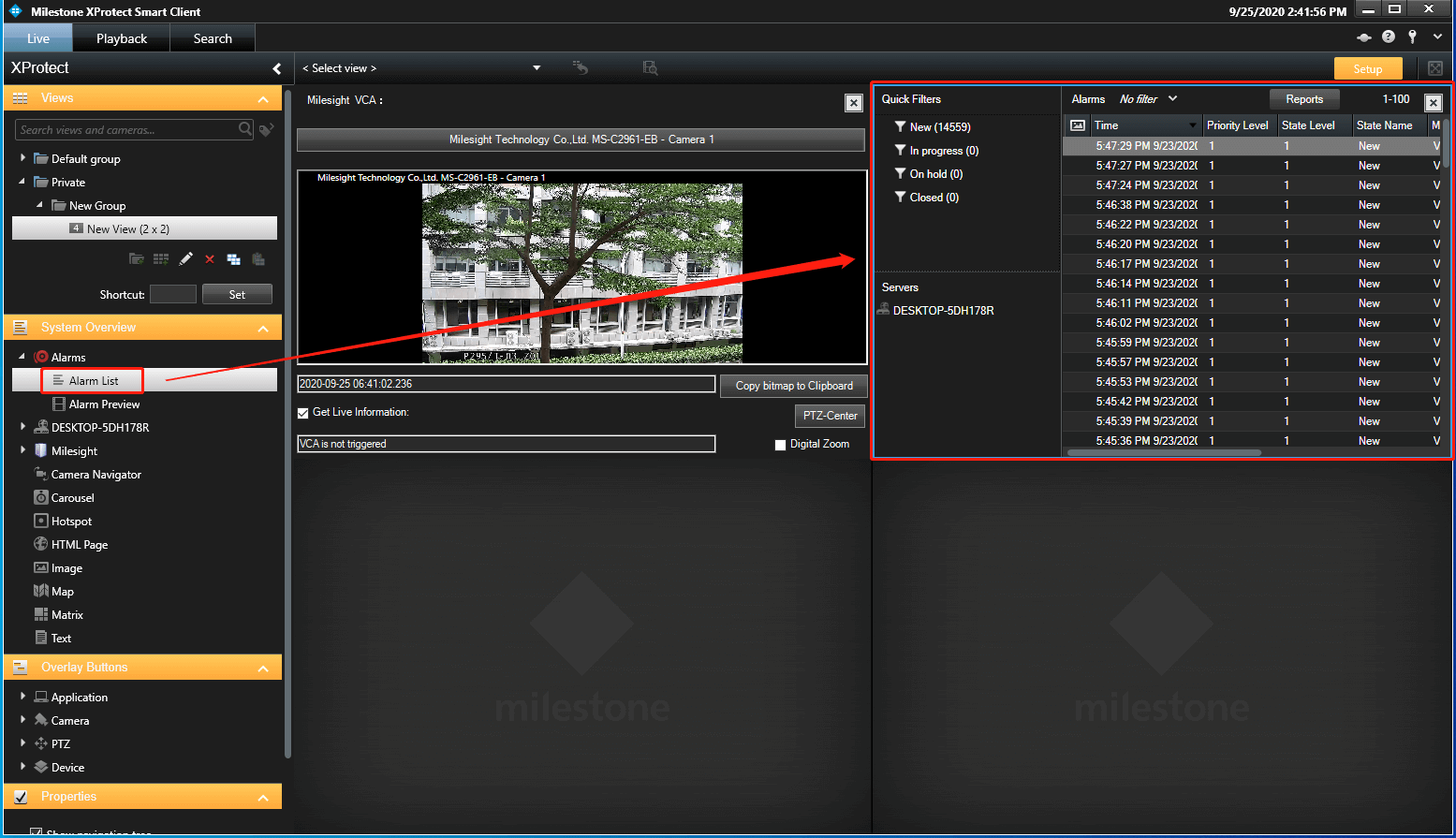

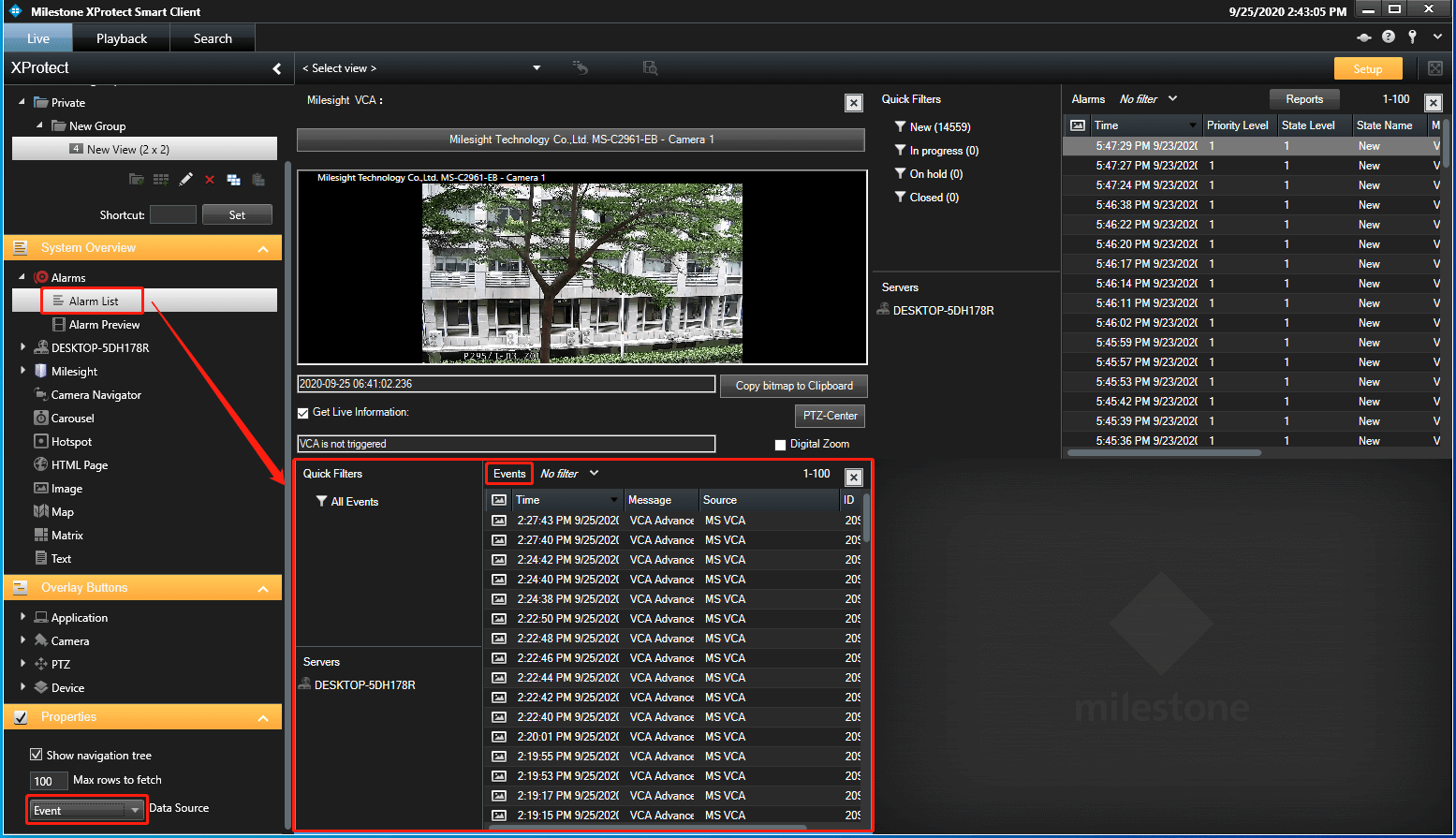

Step 3: Alarm List, Event List and Alarm Preview can be also dragged to views.

MIP Plugin
MIP Plugin
MIP Plugin

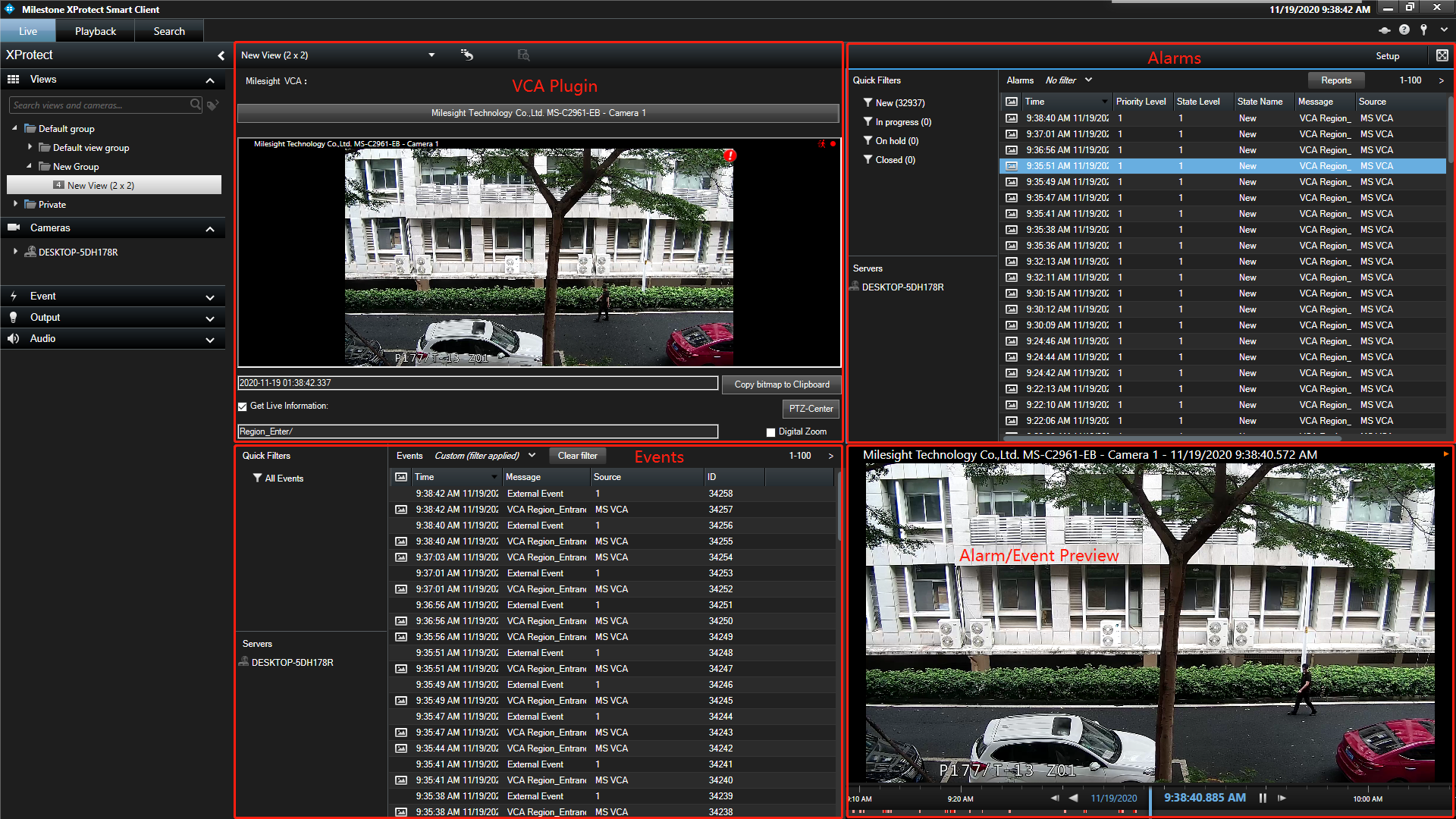

Ⅶ. Example

Camera: Milesight Technology Co.,Ltd. MS-C2961-EB - Camera 1

Event: VCA Region_Entrance_Start

Alarm: Trigger External Event 1

MIP Plugin

Description:

Region Entrance function is enabled. When Region Entrance event happens in the Camera:

The red icon reminds and the text box shows "Region_Enter/" in "VCA plugin" view .

The corresponding event-- "VCA Region_Entrance_Start" shows in "Events" view.

In "Alarm Definition" , the event is set to trigger the external event 1 when happens. The corresponding alarm shows in "Alarms" view. Right click one of records, you can do "confirm" and so on.

Details of the alarm or event shows in "Alarm/Event Preview" view.
