1. What is FTP

The File Transfer Protocol (FTP) is a standard network protocol used for transfer computer files from one host to another host over a TCP-based network, such as the Internet. FTP is built on a client-server architecture and uses separate control and data connections between the client and the server.

2. How to Use FTP on Milesight Camera

In order to use the FTP on the camera, we need to use the FTP server. (FTP server provides services based on FTP protocol. When it is running, users can connect to the server to download files, also can upload files to the FTP server.)

The following takes Serv-U software for example.

Step1: Download and install the Serv-U software.

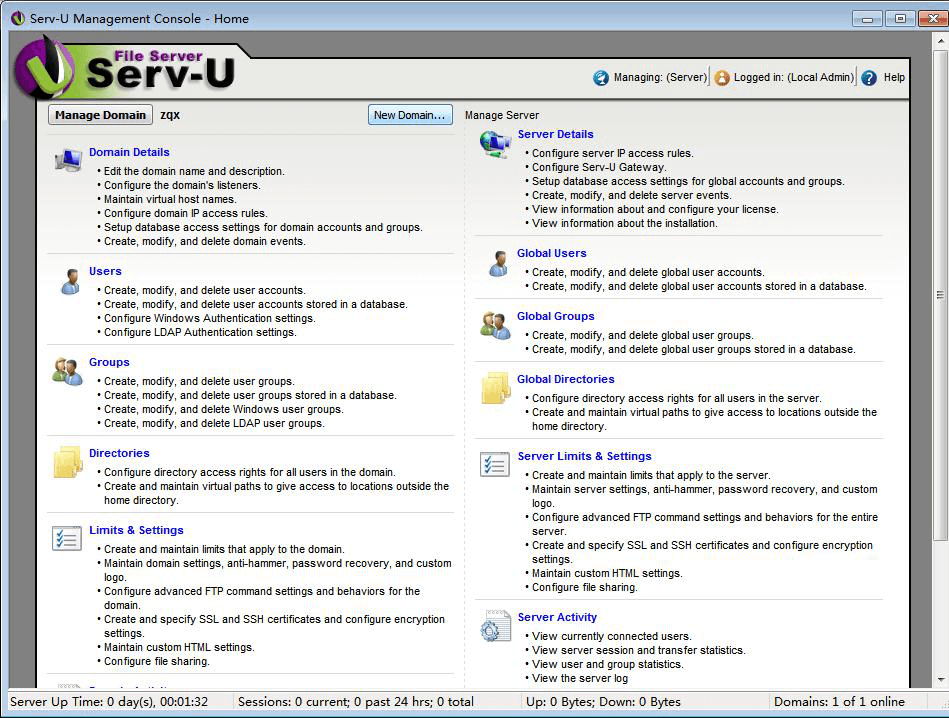

Step2: Start the Serv-U software.

Serv-U software

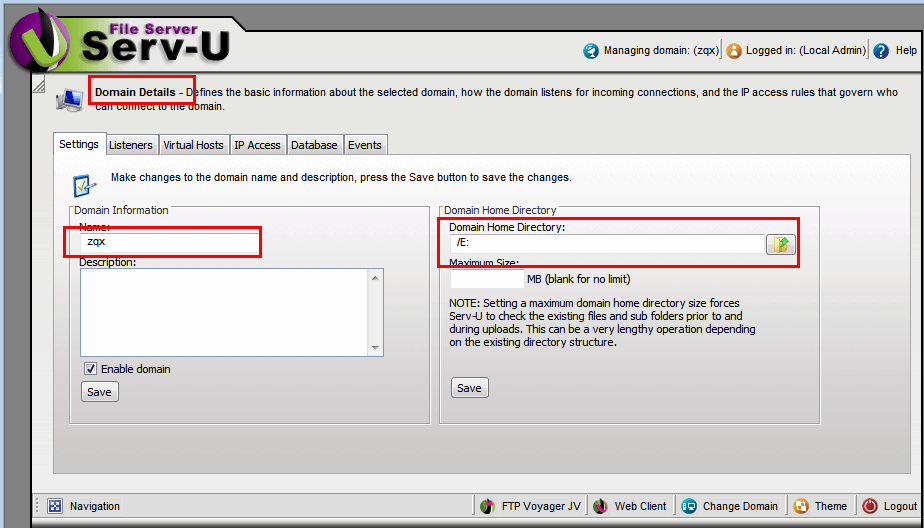

Step3: Click “Domain Details”, input “Name” and “Domain Home Directory”.

Serv-U software

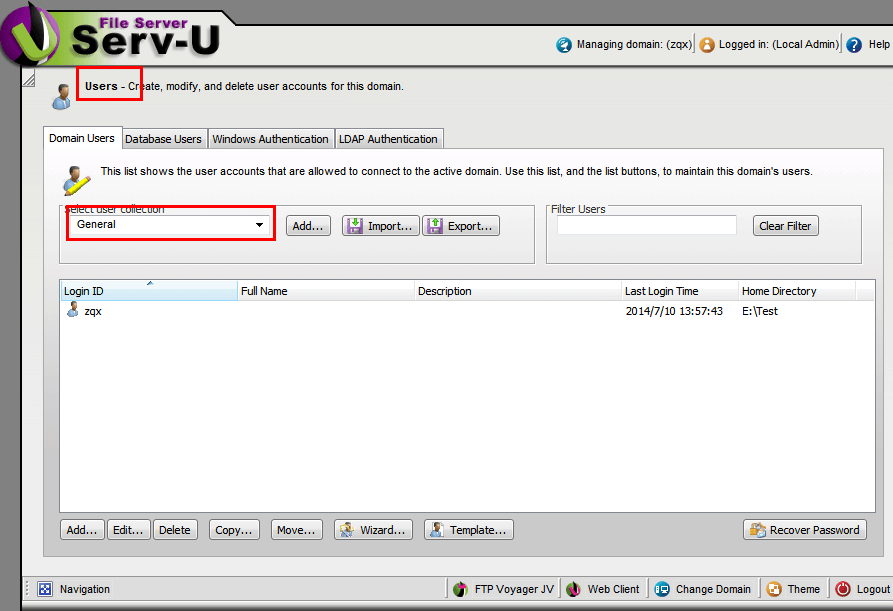

Step4: Back to the home page, click on the “Users” to create the user information.

Serv-U software

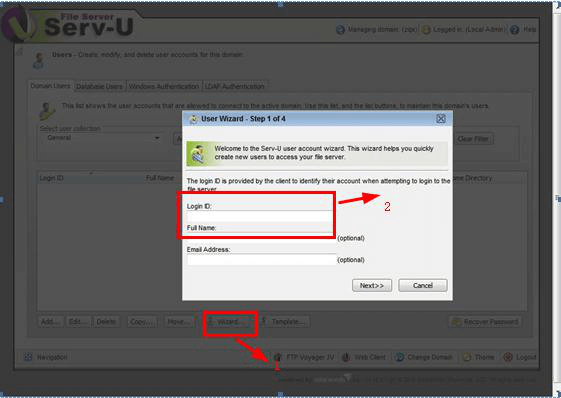

Step5: Click the “Wizard” to create a user, set the user name (figure 4).

Serv-U software

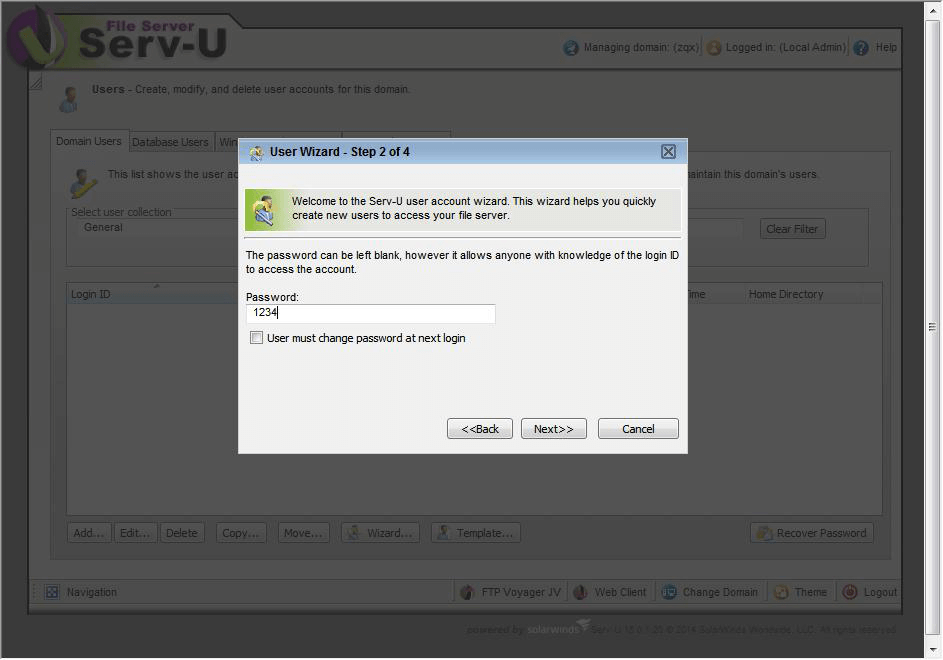

Step6: Set password.

Serv-U software

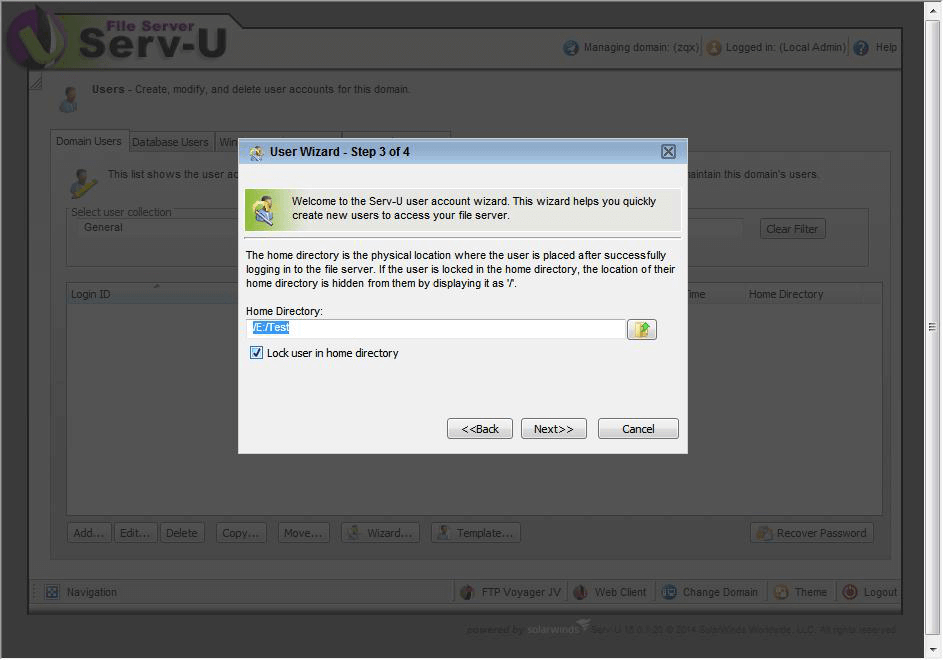

Step7: Select the root directory: E:\Test, click “Lock to the root directory”.

Serv-U software

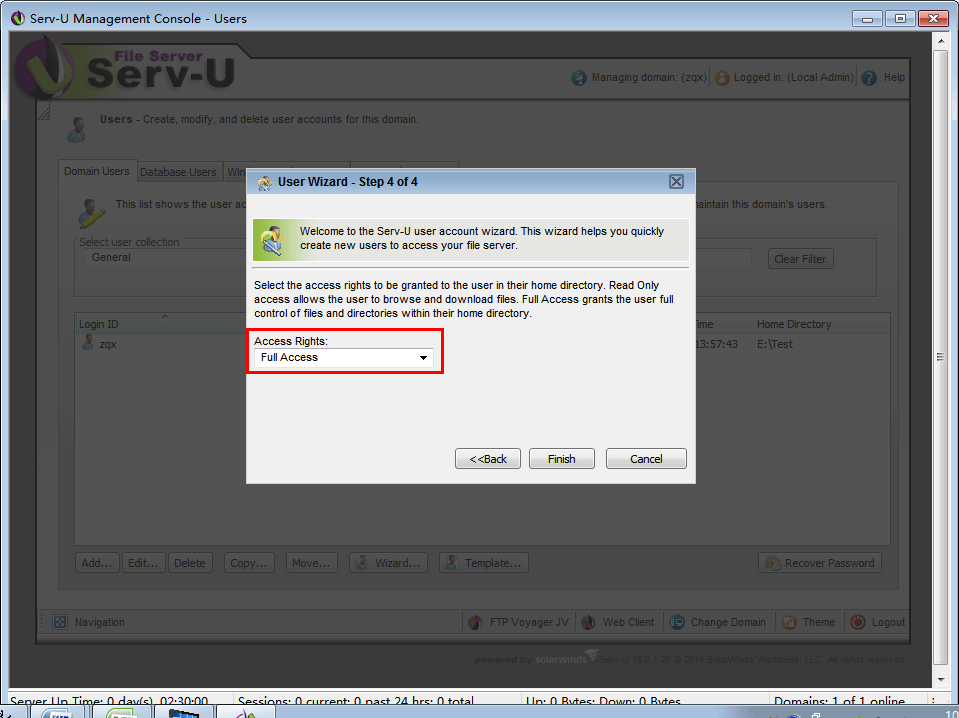

Step8: Click “Next”, choose “Full Access” and click “Finish”.You can follow the same steps to create different users.

Serv-U software

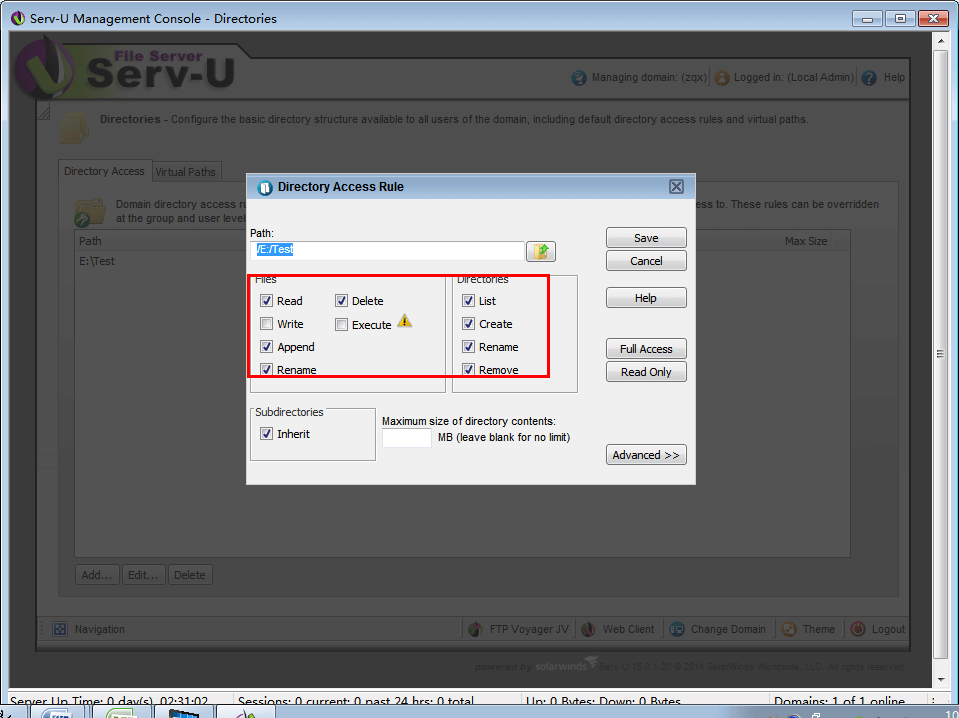

Step9: Back to home page, set “Directory Access Rules”.

Serv-U software

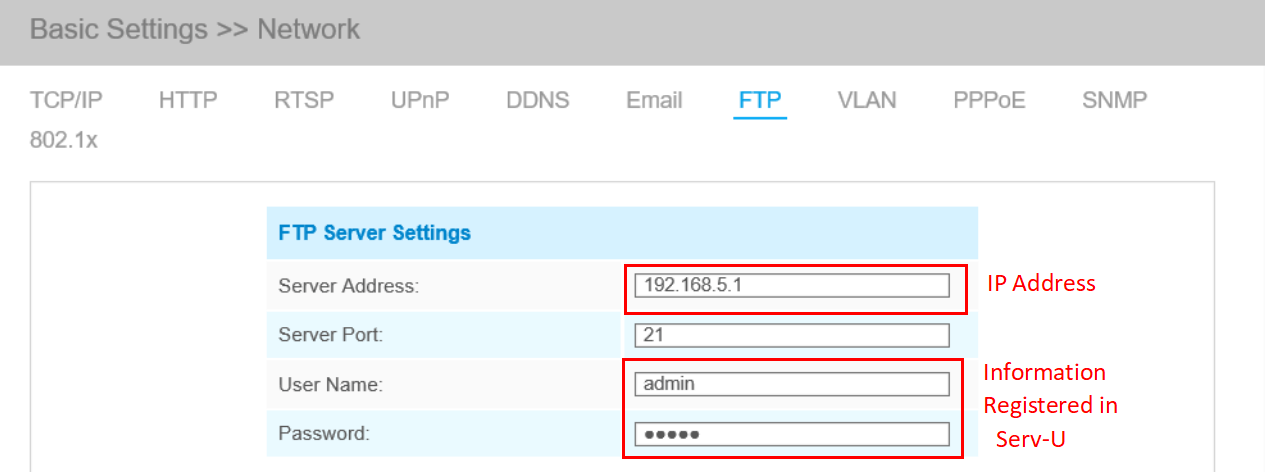

Step10: Log in camera web site, enter the FTP information.

FTP settings on camera

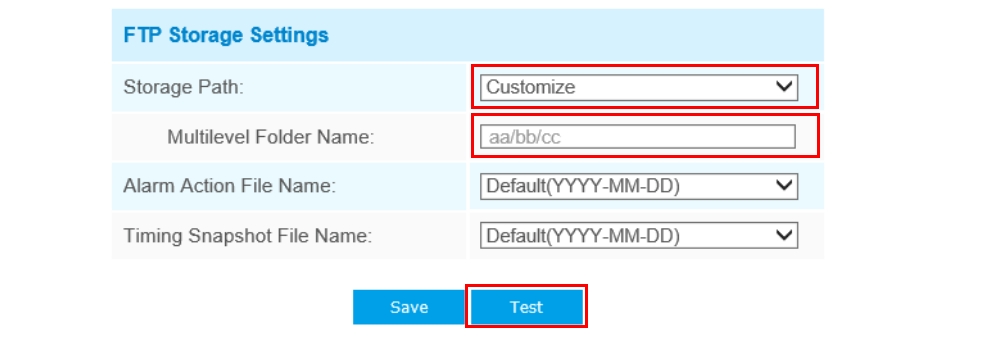

Step11: You can customize Multilevel Folder in FTP Storage Settings interface.

FTP settings on camera

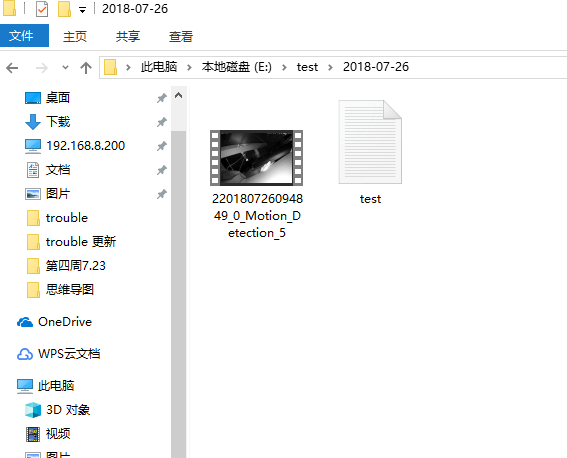

Step12: Click “Test”, you can see the text file in :E:\Test\2018-07-26.

FTP settings on camera

At this point, it means that FTP server has been built successfully.

3. FTP Application in Alarm

In order to guarantee that video recording files can be uploaded to the FTP serer when the alarm is triggered, we need to make sure that the FTP server settings are correct.

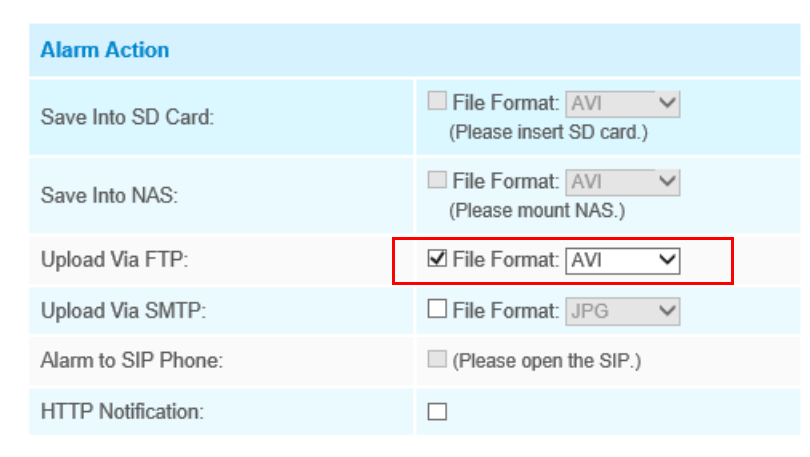

Step1: Log in web side: “Advanced Settings”→“Alarm”→““Alarm Action”, check “Upload Via FTP”. Choose a different file format for videos or photos to be uploaded.

FTP Application in Alarm

Step2: Set alarm. After the alarm has been triggered, you can see video files in route: E:\Test\2018\07

FTP Application in Alarm

4. Access FTP

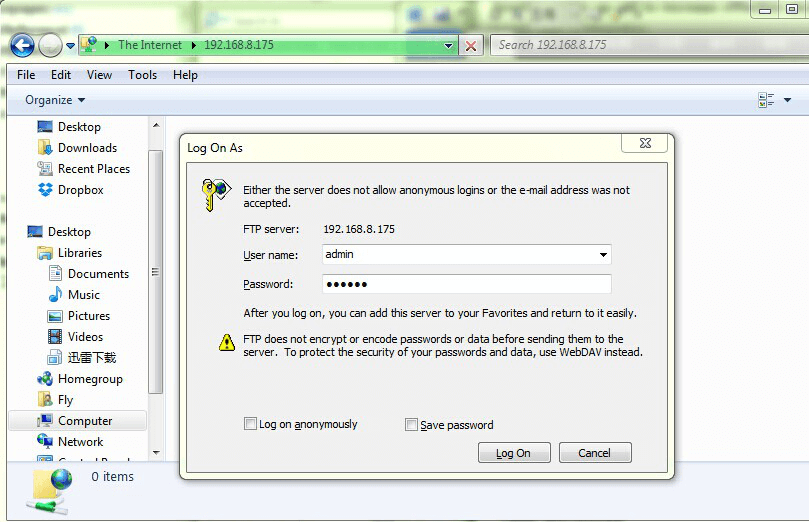

Enter the ftp://192.168.8.175, than fill in the user name and password.

Access FTP

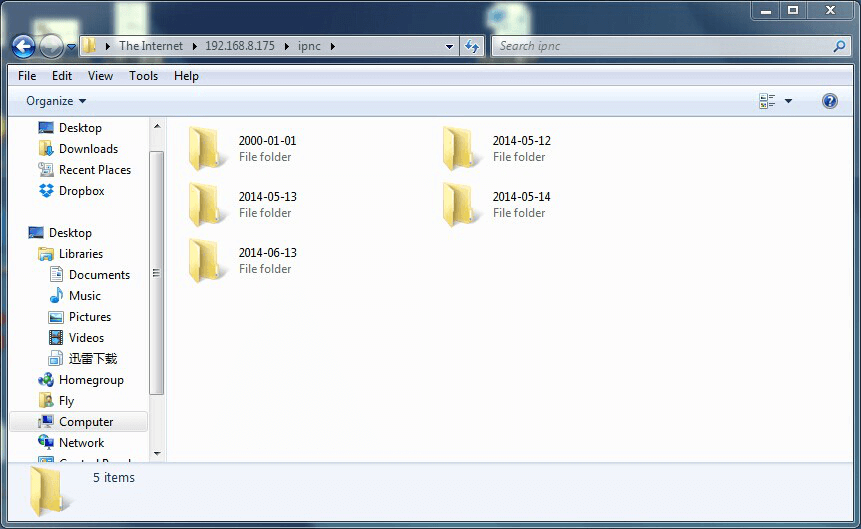

All the files will be listed according to the different dates when they were recorded:

Access FTP
