H.265+ Compresión de Vanguardia
-
Video Analítico (VCA)
Milesight VCA con 10 modos de detección proporciona un análisis de video inteligente avanzado y preciso para cámaras de red Milesight, lo que permite la función de vigilancia integral y una respuesta más rápida a diferentes escenas de monitoreo.
-
Experiencia de Visualización de Video de 4K
Milesight H.265+ Cámara de Red Mini Domo Antivandálica ofrece una resolución de hasta 4K (3840*2160, cuatro veces mayor que Full HD), brindando a los usuarios una experiencia de visualización de video de ultra alta definición.
-
0.002Lux Ultra Luz Baja
La Starlight Cámara es capaz de entregar imágenes de colores con gran detalles incluso en entornos con poca luz que alcanzan 0.002Lux (Color) o 0Lux (B/W), y entornos de luz infrarroja cercana sin ninguna iluminación adicional.
-
140dB Super WDR
La tecnología WDR basada en sensores de Milesight permite que la cámara registre mayores detalles de la escena con reproducción de color verdadero incluso bajas condiciones extremas de luz de fondo y alto contraste. La relación entre los valores de señal de luz más brillante divididos por los valores de señal de luz más oscura es de hasta 140dB.
-
60fps Cuadros por Segundo Elevado
Milesight Cámara de Red ofrece cuadros por segundo elevado incluyendo 2MP@60fps y 5MP@30fps, que permite la cámara a capturar imagenes fácilmente sin latencia a pesar del movimiento de alta velocidad.
-
Rendimiento antivibraciones confiable
Cumpliendo con las regulaciones de la industria del transporte de norama EN50155, H.265+ Cámara de Red Mini Domo Antivandálica puede ofrecer características resistentes específicas del tren para proteger el sistema contra factores ambientales tales como alta/baja temperatura, golpes, vibraciones y sobretensiones.
-
IP67&IK10
Con un fuerte contraste con el tamaño mini, H.265+ Cámara de Red Mini Domo Antivandálica presenta la prueba de intemperie líder en la industria con clasificación IP67 y prueba de vandalismo con clasificación IK10, que permiten proteger la cámara contra impactos adversos para garantizar un rendimiento robusto.
-
La última tecnología LED IR
Equipada con LED de última generación, H.265+ Cámara de Red Mini Domo Antivandálica proporciona imágenes nocturnas superiores y ofrece un rendimiento absoluto en la vigilancia de visión nocturna.
-

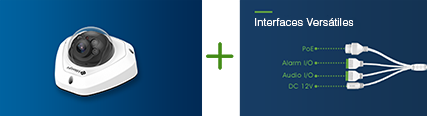

Interfaces Versátiles
Varias interfaces como PoE, DC, E/S de Audio y E/S de Alarma están disponibles en la versión de interfaz múltiple, que ofrecen más opciones para una administración fácil y diversas necesidades.
-
Diseño Único para una Fácil Instalación
El nuevo modelo está diseñado para una instalación fácil y rápida. El diseño mecánico de 3 ejes, la ranura para tarjeta microSD/SDHC/SDXC incorporada y el módulo PoE lo hacen realmente fácil de instalar.
-
Dos Colores Disponibles
Disponible en blanco y negro, la nueva H.265+ Cámara de Red Mini Domo Antivandálica ofrece más opciones para su preferencia.
-
SIP/VoIP Soportado
Milesight H.265+ Cámara de Red Mini Domo Antivandálica presenta la función SIP/VoIP líder en la industria y transmisión de video para teléfonos móviles y teléfonos de video.
-
Camera
Name2MP H.265 Vandal-proof Mini Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F2.0/F2.2, B/W: 0Lux with IR on
WDR140dB Super WDR
Lens2.8mm @F2.0/ 3.2mm @F2.2/ 3.6mm @F2.2
MountM12
Field of ViewH123°/D142°/V68°(2.8mm), H105°/D123°/V58°(3.2mm), H94°/D111°/50°(3.6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 30m
S/N>55dB
Video
Max. Image Resolution1920x1080
Frame Rate60fps@(1920x1080)(Optional for R Series)30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/OBuilt-in Microphone; 1/1(Multi-interface Version)
Alarm I/O1/1(Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af); PoE(802.3af)/DC 12V±10%(Multi-interface Version)
Power Consumption2.5W MAX, 5W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
EN50155Support
Dimensions118.5mmX110.8mmX65mm
Weight500g
Warranty3/5 Years
-
Camera
Name5MP H.265 Vandal-proof Mini Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, Color: 0.008Lux @F2.0/F2.2, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens2.8mm @F2.0/ 3.2mm @F2.2/ 3.6mm @F2.2
MountM12
Field of ViewH111°/D141°/V82°(2.8mm), H96°/D123°/V71°(3.2mm), H80°/D102°/V59°(3.6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 30m
S/N>55dB
Video
Max. Image Resolution2592x1944
Frame Rate30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080)(Optional for H Series)20fps@(2592x1944), 30fps@(2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz(32KHz and 48KHz are available for H Series)
Audio Bit Rate16~96kbps, 16~256kbps(Optional for H Series)
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/OBuilt-in Microphone; 1/1(Multi-interface Version)
Alarm I/O1/1(Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af); PoE(802.3af)/DC 12V±10%(Multi-interface Version)
Power Consumption2.5W MAX, 5.5W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
EN50155Support
Dimensions118.5mmX110.8mmX65mm
Weight500g
Warranty3/5 Years
-
Camera
Name4K H.265 Vandal-proof Mini Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @F1.2, Color: 0.012Lux @F2.0/F2.2, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens2.8mm @F2.0/ 3.6mm @F2.2
MountM12
Field of ViewH124°/D140°/V69°(2.8mm), H89°/D103°/V49°(3.6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 30m
S/N>55dB
Video
Max. Image Resolution3840x2160
Frame Rate15fps@(3840x2160), 30fps@(3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/OBuilt-in Microphone; 1/1(Multi-interface Version)
Alarm I/O1/1(Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af); PoE(802.3af)/DC 12V±10%(Multi-interface Version)
Power Consumption5.2W MAX, 6.6W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
EN50155Support
Dimensions118.5mmX110.8mmX65mm
Weight500g
Warranty3/5 Years
-
* Naming Convention
P - PoE Supported
B - H.265 Compression
