H.265+ Compresión de Vanguardia
-
Video Analítico (VCA)
Milesight VCA con 10 modos de detección proporciona un análisis de video inteligente avanzado y preciso para cámaras de red Milesight, lo que permite la función de vigilancia integral y una respuesta más rápida a diferentes escenas de monitoreo.
-
Experiencia de Visualización de Video 4K
Milesight 4K H.265+ Cámara de Red Pro Domo Motorizada ofrece una resolución de hasta 4K (3840*2160, efectivamente cuatro veces mayor que Full HD) a 30 cuadros por segundo (fps), brindando a los usuarios una experiencia de visualización de video de ultra alta definición.
-
1/1.8" STARVIS Starlight Sensor
Equipada con el sensor STARVIS de 1/1.8" líder en la industria, la Cámara de Red Milesight, que soporta 2MP/4K, mejora todos los aspectos de la calidad de imagen, incluyendo una Mejor Sensibilidad con poca luz.
-
0.001Lux Ultra Luz Baja
La Starlight Cámara es capaz de entregar imágenes de colores con gran detalles incluso en entornos con poca luz que alcanzan 0.001Lux (Color) o 0Lux (B/W), y entornos de luz infrarroja cercana sin ninguna iluminación adicional.
-
Inteligente IR II
La tecnología LED IR se ha actualizado para proporcionar videos con un rango de visualización de hasta 50m(90m). Un LED en la parte superior funcionan como High Beam, mientras que los otros dos en la parte inferior como Low Beam para una mejor claridad y calidad de imagen, independientemente de la distancia al objeto. Además, el brillo del haz bajo y del haz alto se puede ajustar de forma manual o automática en función de la relación de zoom.
-
3 en 1 Super WDR Pro - 140dB
Milesight actualizó 3 en 1 Super WDR Pro emite tres cuadros por línea, lo que puede brindar más detalles, especialmente sujetos en movimiento. Además, mejora enormemente la calidad de la imagen para reducir manchas y puntos ruidosos. La relación entre los valores de señal de luz más brillante divididos por los valores de señal de luz más oscura es de hasta 140dB.
-
120fps
Con una velocidad de fotogramas líder en la industria que alcanza los 120fps, Milesight cámara de red puede capturar fácilmente imágenes sin latencia a pesar del movimiento de alta velocidad.
-
Zoom Lentes Motorizadas
Equipada con zoom & enfoque lentes motorizadas, H.265+ Cámara de Red Pro Domo Motorizada permite el control remoto de la distancia focal, el iris y el enfoque mediante el uso de un controlador de lente, que es perfecto para la vigilancia a larga distancia en áreas como estacionamientos, autopistas y puertos.
-
3ra Generación de Dot Matrix LEDs IR
Con el fin de proporcionar una visibilidad nocturna superior, H.265+ Cámara de Red Pro Domo Motorizada emplea la 3ra Generación de Dot Matrix LEDs IR, garantizando esencialmente una excelente calidad de imagen, larga vida útil y eficiencia energética.
-

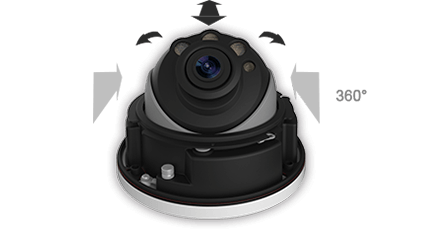

Diseño Mecánico de 3 Ejes
H.265+ Cámara de Red Pro Domo Motorizada presenta un diseño mecánico de 3 ejes para un ajuste rápido y fácil del ángulo de visión de la cámara, lo que le permite colocar la cámara con precisión.
-
Diseño Clamshell
Con el objetivo de reducir al mínimo los problemas de instalación, Milesight presenta de manera creativa el diseño de concha a la base del domo. Esta innovación revolucionaria amplía el espacio para hacer que la conexión de cables sea pan comido, lo que ahorra mucho esfuerzos para los instaladores.
-
Gestión de Cables Integrada
En la base, hay interfaz de alimentación, puerto PoE, E/S de alarma y salida de audio. Gracias a la gestión de cables integrada, no requiere esfuerzo en la instalación.
-
Control P-Iris
Al adoptar la tecnología de control P-Iris, H.265+ Cámara de Red Pro Domo Motorizada es capaz de optimizar la apertura del iris en todas las condiciones de iluminación, ofreciendo imágenes con mejor contraste, claridad, resolución y profundidad de campo.
-
Cubierta Ahumada de Domo
Milesight H.265+ Cámara de Red Pro Domo Motorizada admite la Cubierta Ahumada de Domo, que puede ocultar la dirección de la cámara para no permitir que la gente vea hacia dónde apunta la cámara.
-
Soporte de Montaje
Para los instaladores, sostener el cuerpo de la cámara para asegurar los tornillos en la pared es un trabajo agotador. Al estar orientado al cliente, Milesight optimizó la estructura del hardware para evitar que con un soporte de montaje ligero y delgado, los instaladores primero pudieran asegurar el soporte de montaje en la ubicación deseada y luego insertar el cuerpo de la cámara, por lo que no se desperdicia energía innecesaria.
-
Dos Colores Disponibles
Disponible en blanco y negro, H.265+ Cámara de Red Pro Domo Motorizada ofrece más opciones para su preferencia.
-
SIP/VoIP Soportado
Milesight H.265+ Cámara de Red Pro Domo Motorizada presenta la función SIP/VoIP líder en la industria y transmisión de video para teléfonos móviles y teléfonos de video.
-
Camera
Name2MP H.265 Motorized Pro Dome Network Camera
Image Sensor1/2" Progressive Scan CMOS
Min. IlluminationColor: 0.001Lux @F1.2, Color: 0.002Lux @F1.4, B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
Lens
LensMotorized 3.6∼10mm@F1.4, P-Iris(Optional)
Field of ViewH96°∼H42°/D111°∼D48°/V55°∼V23°
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution1920x1080
Frame Rate60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz(44.1KHz is available for all except R & T & Q Series)
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/OBuilt-in Microphone and 1 Audio Output interface
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, External Input, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption8W MAX, 12W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ143mmX108.4mm
Weight1100g
Warranty3/5 Years
-
Camera
Name2MP H.265 Motorized Pro Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR140dB Super WDR (Super WDR Pro is optional for Q & T Series)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m(3.0∼10.5mm/2.7∼13.5mm)/ 90m(7∼22mm)
S/N>55dB
Lens
LensMotorized 3∼10.5mm/2.7∼13.5mm/7∼22mm@F1.4, P-Iris(Optional)
Field of ViewH95°∼H33°/D107°∼D38°/V52°∼V18°(3∼10.5mm), H92°∼H32°/D107°∼D37°/V51°∼V18°(2.7∼13.5mm), H40°∼H16°/D46°∼D19°/V23°∼V9°(7∼22mm)
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution1920x1080
Frame Rate120fps@(1920x1080)(Optional for Q Series), 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz(44.1KHz is available for all except R & T & Q Series)
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/OBuilt-in Microphone and 1 Audio Output interface
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, External Input, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption8W MAX, 12W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ143mmX108.4mm
Weight1100g
Warranty3/5 Years
-
Camera
Name5MP H.265 Motorized Pro Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.003Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m(3.0∼10.5mm/2.7∼13.5mm)/ 90m(7∼22mm)
S/N>55dB
Lens
LensMotorized 3∼10.5mm/2.7∼13.5mm/7∼22mm@F1.4, P-Iris(Optional)
Field of ViewH90°∼H31°/D114°∼D38°/V67°∼V23°(3∼10.5mm), H89°∼H30°/D111°∼D37°/V66°∼V22°(2.7∼13.5mm), H37°∼H15°/D47°∼D19°/V28°∼V11°(7∼22mm)
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution2592x1944
Frame Rate30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080)(Optional for H Series), 20fps@(2592x1944), 30fps@(2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz(32KHz and 48KHz are available for H Series)
Audio Bit Rate16~96kbps, 16~256kbps(Optional for H Series)
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/OBuilt-in Microphone and 1 Audio Output interface
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, External Input, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption8W MAX, 12W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ143mmX108.4mm
Weight1100g
Warranty3/5 Years
-
Camera
Name4K H.265 Motorized Pro Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @F1.2, Color: 0.012Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
Lens
LensMotorized 2.7∼13.5mm@F1.4, P-Iris(Optional)
Field of ViewH96°∼H33°/D112°∼D37°/V53°∼V18°
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution3840x2160
Frame Rate30fps@(3840x2160)(Optional for H Series), 15fps@(3840x2160), 30fps@(3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/OBuilt-in Microphone and 1 Audio Output interface
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, External Input, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption5W MAX, 8.2W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ143mmX108.4mm
Weight1100g
Warranty3/5 Years
-
Camera
Name4K H.265 Motorized Pro Dome Network Camera
Image Sensor1/1.8" Progressive Scan CMOS
Min. IlluminationColor: 0.006Lux @F1.2, Color: 0.009Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
Lens
LensMotorized 3.6∼10mm@F1.4, P-Iris(Optional)
Field of ViewH110°∼H46°/D126°∼D54°/V61°∼V25°
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution3840x2160
Frame Rate30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/OBuilt-in Microphone and 1 Audio Output interface
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, External Input, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption6.2W MAX, 9.4W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ143mmX108.4mm
Weight1100g
Warranty3/5 Years
-
* Naming Convention
H - 30fps@5MP/4K Series
Q - High Frame Rate (120fps)
T - High Frame Rate (90fps)
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported (Optional)
P - PoE Supported
B - H.265 Compression
Milesight H.265 Motorized Pro Dome Network Camera Datasheet_es.pdf
A Milesight Technology Moment-Waterproofing Cable Management Design.pdf
Milesight Network Camera User Manual.pdf
Milesight Network Camera Quick Start Guide.pdf
