Avanzada Funcionalidad PTZ
Alcanzando una pano continua de 360°, -5°~90° de inclinación automática y zoom óptico 12X, que son la funcionalidad principal de la cámara domo PTZ, la H.265+ Cámara de Red 12X Mini Domo PTZ puede moverse para monitoreo omnidireccional y de largo alcance. Para obtener un rendimiento oportuno y eficiente, la cámara posee una velocidad de giro e inclinación incomparable y 3D Posicionamiento. Puede enfocar y atrapar rápidamente sin siquiera pestañear.
-
Diseño Revolucionario de IR
Desarrollado por Milesight y aplicado por primera vez en la H.265+ Cámara de Red 12X Mini Domo PTZ, el diseño antirefleción de IR adopta paneles elaborados para eliminar por completo las preocupaciones del reflejo de IR, lo que garantiza que la cámara ofrezca la mejor función de IR. Y la suprema la Tecnología Inteligente de IR II con combinación de luces altas y bajas liberará su rendimiento IR incomparable.
-
Instalación Discreta
Con la instalación empotrada y una cubierta ahumada de domo disponible, la H.265+ Cámara de Red 12X Mini Domo PTZ puede integrarse hábilmente con el entorno y ocultar fácilmente la dirección para no permitir que la gente vea hacia dónde apunta la cámara, brindando un rendimiento de monitoreo discreto.
-
IP66 & IK10
Con un fuerte contraste con el tamaño mini, la H.265+ Cámara de Red 12X Mini Domo PTZ presenta la impermeable líder en la industria con clasificación IP66 y antivandálica con clasificación IK10, que permiten proteger la cámara contra impactos adversos para garantizar un rendimiento robusto.
-

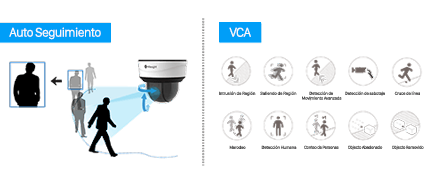

Inteligente Auto Seguimiento PTZ
Las características de la cámara domo presenta con PTZ inteligente. Una vez que la función Auto Seguimiento PTZ está habilitada, la cámara podría aprovechar el mecanismo del motor para realizar Pan/Tilt/Zoom para rastrear el objeto en movimiento automáticamente, logrando la videovigilancia inteligente, confiable y en tiempo real sin que falten detalles críticos. Además, al ser compatible con los 10 modos de Milesight VCA, la cámara es mucho más inteligente de lo que espera.
-

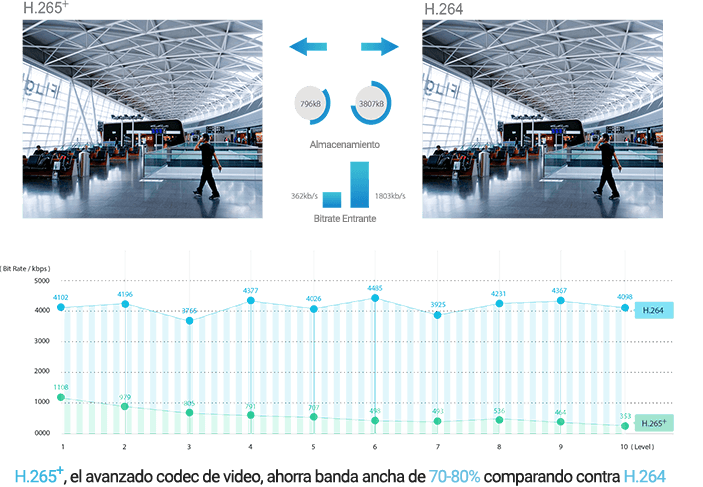

H.265+ Compresión de Vanguardia

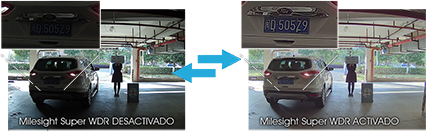

140dB Super WDR
Con 140dB Super WDR, la H.265+ Cámara de Red 12X Mini Domo PTZ es ideal para producir imágenes con grandes detalles de escena y restauración de color verdadero incluso en condiciones de luz de fondo extrema y alto contraste. La tecnología WDR es capaz de compensar la amplia gama de niveles de iluminación, que es una característica increíble para la cámara domo de movimiento rápido.

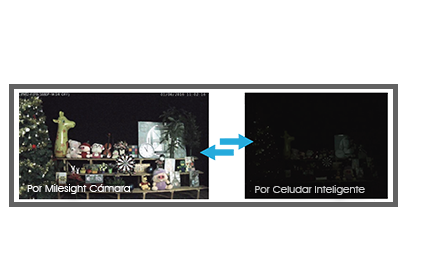

0.002Lux Ultra Luz Baja
Con una visibilidad de luz ultra baja de 0.002Lux, que es el nivel líder en la industria para cámaras domo de movimiento especialmente rápido, la H.265+ Cámara de Red 12X Mini Domo PTZ es capaz de entregar imágenes en color de gran detalle incluso en entornos con poca luz llegando a 0.002Lux de modo de color o 0Lux de modo B/N, y entornos de luz infrarroja cercana sin iluminación adicional.
Comprensivo Antiniebla
La cámara domo se da cuenta de manera creativa del rendimiento integral de antiniebla tanto en software como en hardware. Es capaz de evitar que la lente genere vapores para formar la niebla en algunos casos particulares con la ayuda del ventilador interno. Además, la cámara se aplicó con el algoritmo de antiniebla de imágenes para detectar automáticamente la niebla y filtrarla digitalmente fuera de la vista para proporcionar imágenes claras en tiempo nublado y brumoso.
Interfaces Versátiles
En la base, la H.265+ Cámara de Red 12X Mini Domo PTZ viene con una gran variedad de interfaces, como E/S de alarma, E/S de audio, DC 12V y puerto PoE. Este diseño de interfaz completo está disponible para satisfacer sus diferentes tipos de necesidades de videovigilancia.
Varios Accesorios
La H.265+ Cámara de Red 12X Mini Domo PTZ es un modelo funcional que se puede aplicar en varios escenarios. Se puede instalar flexiblemente de manera diferente para necesidades específicas. Para garantizar su mejor instalación y experiencia de uso, cuatro accesorios eficientes están disponibles para brindar un rendimiento supremo.
-
Camera
Name2MP 12X H.265 Mini PTZ Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Digital Zoom16X
Lens
Focal Length5.3∼64mm, 12X Optical Zoom
Zoom SpeedApprox 4s (Optical Wide-Tele)
Field of ViewH61°∼H5°/D69°∼D5°/V36°∼V2°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/1500mm (Wide/Tele)
ApertureF1.6∼F2.8
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s
Tilt Range/Tilt Speed-5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s
Proportional ZoomSupport
Preset Quantity255
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Auto TrackingSupport
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR
Irradiation DistanceUp to 120m
Irradiation AngleAuto/Manual
Video
Max. Image Resolution1920x1080
Primary Stream60fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working ConditionTemperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power SupplyPoE(802.3at)/ DC 12V/3A ±10%
Power Consumption10W MAX/ 17W MAX(With IR on)
Weather ProofUp to IP66-rated for weather-resistant performance
HousingVandal-proof IK10-rated Metal Housing
Surge Protection4KV
DimensionsΦ183mmX174.8mm
Weight2Kg
Warranty2 Years/3 Years(Optional)
-
Camera
Name2MP 20X H.265 Mini PTZ Dome Network Camera
Image Sensor1/2" Progressive Scan CMOS
Min. IlluminationColor: 0.001Lux @F1.2, Color: 0.002Lux @F1.5, B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Digital Zoom16X
Lens
Focal Length6.4∼128mm, 20X Optical Zoom
Zoom SpeedApprox 5s (Optical Wide-Tele)
Field of ViewH60°∼H3°/D67°∼D4°/V37°∼V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance100/2000mm (Wide/Tele)
ApertureF1.6∼F4.0
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s
Tilt Range/Tilt Speed-5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s
Proportional ZoomSupport
Preset Quantity255
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Auto TrackingSupport
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR
Irradiation DistanceUp to 120m
Irradiation AngleAuto/Manual
Video
Max. Image Resolution1920x1080
Primary Stream90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working ConditionTemperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power SupplyPoE(802.3at)/ DC 12V/3A ±10%
Power Consumption11W MAX/ 18W MAX(With IR on)
Weather ProofUp to IP66-rated for weather-resistant performance
HousingVandal-proof IK10-rated Metal Housing
Surge Protection4KV
DimensionsΦ183mmX174.8mm
Weight2Kg
Warranty2 Years/3 Years(Optional)
-
Camera
Name2MP 23X H.265 Mini PTZ Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Digital Zoom16X
Lens
Focal Length5∼117mm, 23X Optical Zoom
Zoom SpeedApprox 6s (Optical Wide-Tele)
Field of ViewH60°∼H3°/D69°∼D4°/V35°∼V2°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance100/1500mm (Wide/Tele)
ApertureF1.5∼F3.5
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s
Tilt Range/Tilt Speed-5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s
Proportional ZoomSupport
Preset Quantity255
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Auto TrackingSupport
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR
Irradiation DistanceUp to 120m
Irradiation AngleAuto/Manual
Video
Max. Image Resolution1920x1080
Primary Stream60fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working ConditionTemperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power SupplyPoE(802.3at)/ DC 12V/3A ±10%
Power Consumption10W MAX/ 17W MAX(With IR on)
Weather ProofUp to IP66-rated for weather-resistant performance
HousingVandal-proof IK10-rated Metal Housing
Surge Protection4KV
DimensionsΦ183mmX174.8mm
Weight2Kg
Warranty2 Years/3 Years(Optional)
-
Camera
Name5MP 12X H.265 Mini PTZ Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Digital Zoom16X
Lens
Focal Length5.3∼64mm, 12X Optical Zoom
Zoom SpeedApprox 4s (Optical Wide-Tele)
Field of ViewH57°∼H4°/D69°∼D5°/V44°∼V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/1500mm (Wide/Tele)
ApertureF1.6∼F2.8
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s
Tilt Range/Tilt Speed-5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s
Proportional ZoomSupport
Preset Quantity255
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Auto TrackingSupport
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR
Irradiation DistanceUp to 120m
Irradiation AngleAuto/Manual
Video
Max. Image Resolution2592x1944
Primary Stream30fps@(2592x1944), 45fps@(2048x1536), 60fps(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working ConditionTemperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power SupplyPoE(802.3at)/ DC 12V/3A ±10%
Power Consumption10W MAX/ 17W MAX(With IR on)
Weather ProofUp to IP66-rated for weather-resistant performance
HousingVandal-proof IK10-rated Metal Housing
Surge Protection4KV
DimensionsΦ183mmX174.8mm
Weight2Kg
Warranty2 Years/3 Years(Optional)
-
* Naming Convention
X12 - 12X Optical Zoom
H - 30fps@5MP Series
R - High Frame Rate (60fps)
P - PoE Supported
B - H.265 Compression
Milesight H.265 Mini PTZ Dome Network Camera Datasheet_es.pdf
Milesight PTZ Network Camera User Manual.pdf
Milesight Network Camera Quick Start Guide.pdf
A Milesight Technology Moment-Installation Instruction-Mini PTZ Dome Camera.pdf
A Milesight Technology Moment-Pioneered IR Design.pdf
PODRÍA INTERESARSE ENContáctenos![Better inside,more in sight]()
![patter picture]()
Contáctenos
Thank you for registering!
Thank you for registering for our event. We will send you a confirmation letter with registration details later.
Confirmed
H.265+ Cámara de Red 12X Mini Domo PTZ
PTZ de Volocidad para Un Mundo Más Seguro
2/5MP · 12X Zoom Óptico · 140dB Super WDR · 0.002Lux Starlight · Diseño Antirefleción de IR · IP66&IK10 · PTZ Auto Seguimiento · Instalación Empotrada
PoE
H.265+
ONVIF
G&Q&S&T SD Card Smart IR II Weather-
Proof Vandal-
Proof Starlight Super WDR VCA
G&Q&S&T SD Card Smart IR II Weather-
Proof Vandal-
Proof Starlight Super WDR VCA
