Puertos Versátiles
Con una gama de puertos PoE desde 4, 8, 16 hasta un máximo de 24 y 2 puertos SFP, Milesight Switch PoE Series ofrecen opciones flexibles para diversas aplicaciones. Reconoce automáticamente los dispositivos receptores de energía y ofrece energía. Además, al transmitir los datos a través de un solo cable Ethernet, simplifica la implementación de la red en áreas remotas sin toma de corriente.
-
Inteligente Alimentación de Energía PoE
Con múltiples puertos PoE de 10/100Mbps que admiten el protocolo IEEE 802.3af/at y 2 puertos uplink, Milesight Switch PoE Series proporcionan un presupuesto de energía máximo de 400W para todos los puertos PoE y 30W para cada puerto PoE respectivamente, lo que permite a los usuarios tener varios diferentes variaciones de cámara configuradas.
-
Excelente Transmisión
Con una capacidad de conmutación de hasta 14.8Gbps, diseño sin bloqueo y reenvío de velocidad de enlace completo, Milesight Switch PoE Series pueden proporcionar una transmisión fluida. Al mismo tiempo, su confiabilidad en la transmisión de datos está bien garantizada por los puertos de autoadaptación que soportan tanto la Comunicación IEEE 802.3x Full Duplex como la Comunicación Backpressure Half Duplex.
-

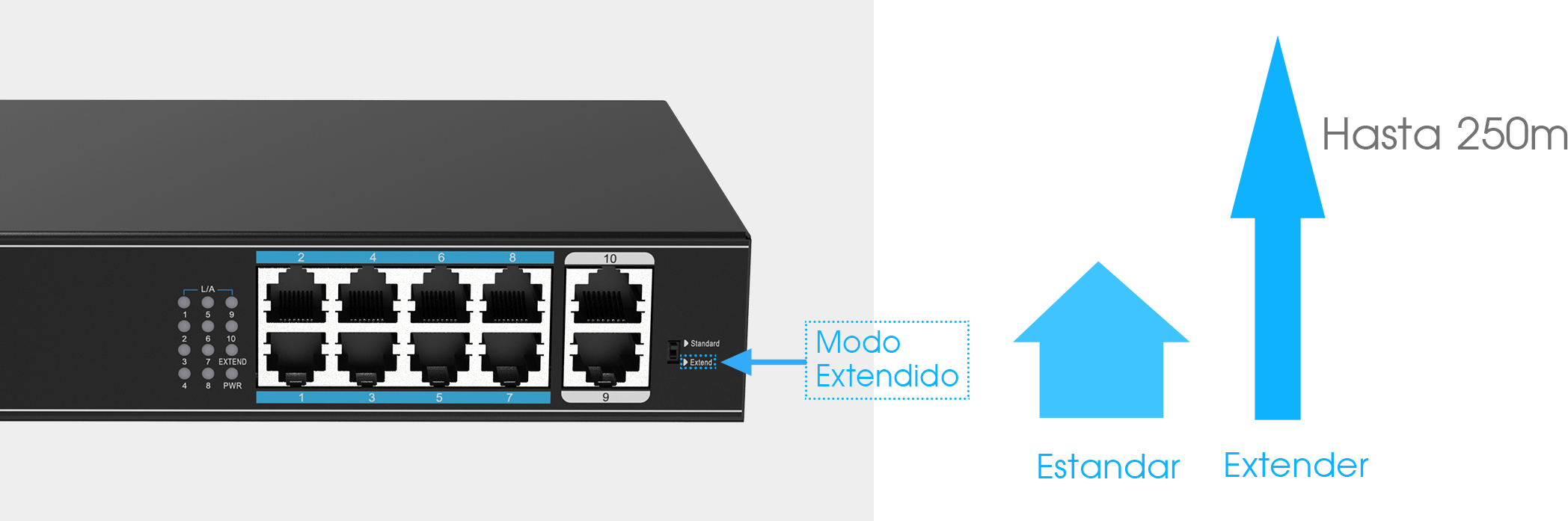

Modo de Extensión Flexible
Con el modo extendido, Switch PoE Series pueden ofrecer opciones más flexibles para la transmisión de largo alcance, extendiendo la distancia hasta 250m, que sirve mucho y trae una mejor experiencia de usuario.
-

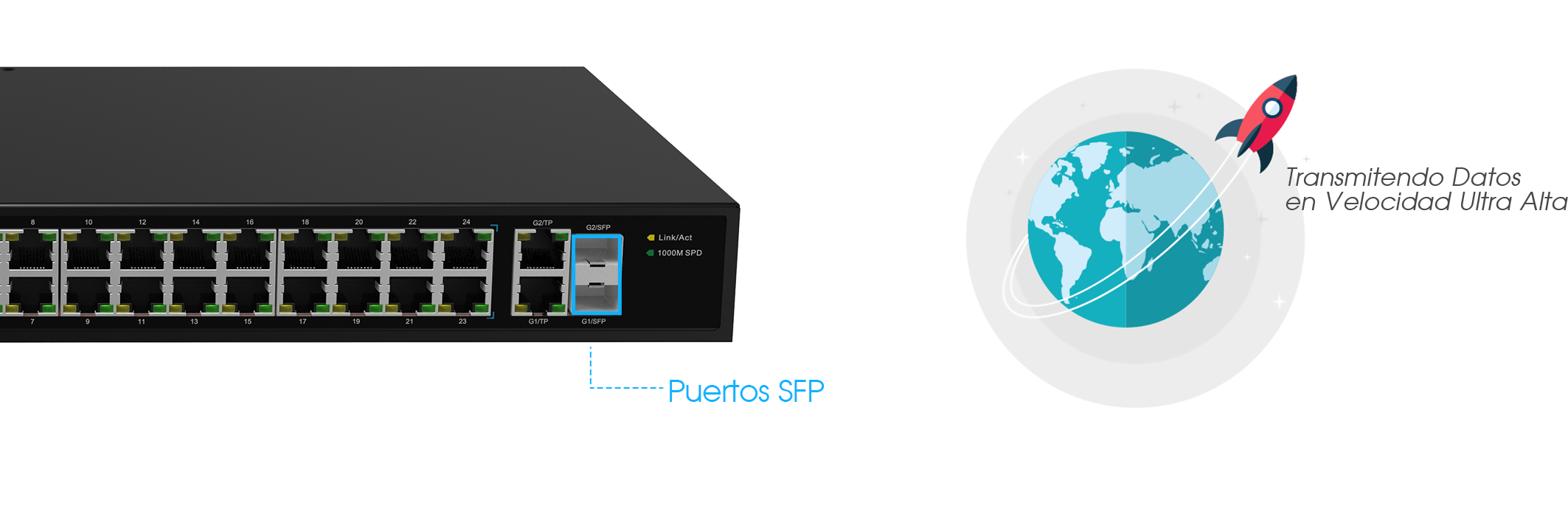

Puerto Uplink SFP
Con la ranura del módulo SFP disponible, el puerto de uplink SFP es ideal para conectar el switch a la columna vertebral de la red, proporcionando un ancho de banda y estabilidad más que suficientes para la transferencia de datos a ultra alta velocidad.
-
Protección contra Sobretensiones
Con una protección contra sobretensiones de 4KV, los puertos PoE poseen la capacidad de evitar que el Switch PoE evite los rayos y otras sobretensiones eléctricas, ofreciendo un rendimiento confiable incluso en algunos entornos hostiles.
-

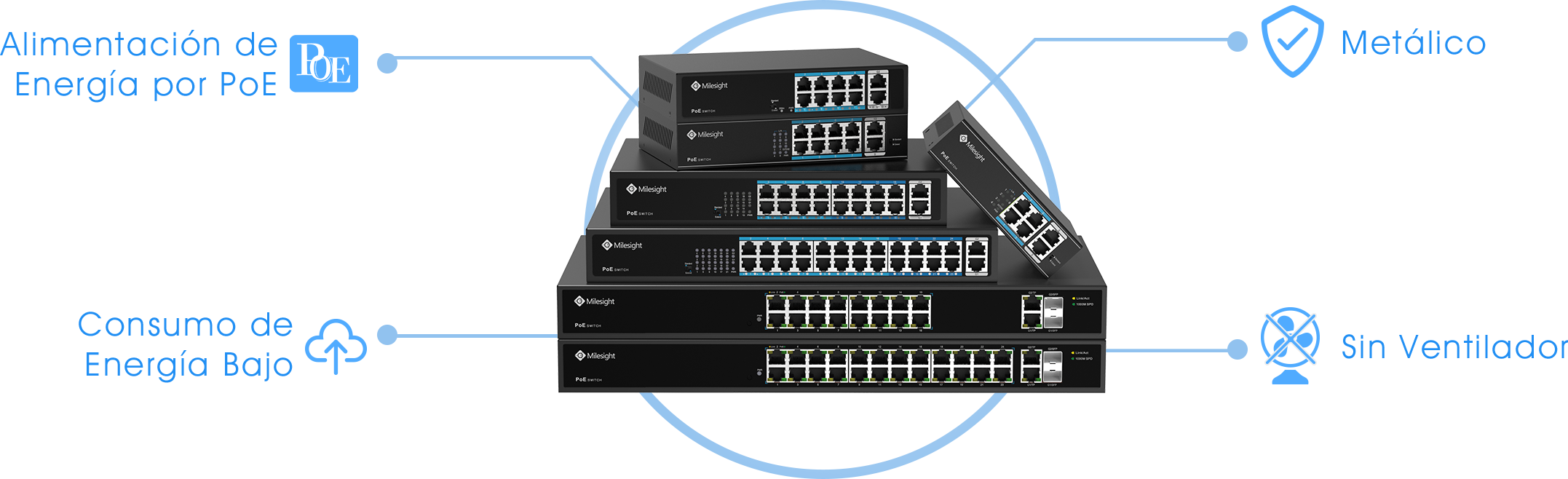

Rendimiento Confiable & Seguro
Con los requisitos del estándar industrial de seguridad cumplido, Milesight Switch PoE Series es definitivamente confiable para brindar un rendimiento seguro. La exquisita carcasa de metal, el diseño sin ventilador, el bajo consumo de energía y la alimentación PoE continua garantizan el funcionamiento eficiente y estable.
-
Fácil a Usar
El plug and play sin configuración hace que el mantenimiento sea tan fácil como ABC. Con las luces de indicadoras de PWR y Link/Act, los usuarios pueden obtener fácilmente el estado de funcionamiento de los dispositivos conectados. Todos aquellos no tendrán duda a usar simplemente.
-
Ports4X10/100Mbps PoE ports (RJ45) + 2X100Mbps uplink ports
StandardIEEE802.3 10Base-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3xSwitching Capacity1.6Gbps (non-blocking)
Packet Forwarding Rate @64byte0.89Mpps
Packet Forwarding Cache768K
MAC1K
Power SupplyBuilt-in switching power supply
AC 100~240V, 50-60Hz, 1APoE StandardIEEE802.3af/at
Max. PoE PowerMax capacity: 65W
Max capacity for single port: 30WFunctional SwitchStandard Mode: Port 1~6: 10/100Mbps auto-sensing @100 meters
Extend Mode: Port 1~4: 10Mbps @250 meters & Port 5~6: 100Mbps @ 100 meters
Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect.IndicatorPower Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)
Functional Switch Indicator: EXTEND (green)Cooling Fan-
Operating Temperature-20°∼55°C
Storage Temperature-40°∼75°C
Operating/Storage Humidity10%∼90%RH(non-condensing)
Lightning Protection/ Protection LevelPort lightning protection: 4KV 8/20us
Protection level: IP30Dimensions142.5mm(W)*115mm(D)*40mm(H)
Weight0.5kg
Installation MethodDesktop Type, Wall Mounted Type
Warranty2 years
-
Ports8X10/100Mbps PoE ports (RJ45) + 2X100Mbps uplink ports
StandardIEEE802.3 10Base-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3xSwitching Capacity2Gbps (non-blocking)
Packet Forwarding Rate @64byte1.488Mpps
Packet Forwarding Cache1.25M
MAC2K
Power SupplyBuilt-in switching power supply
AC 100~240V, 50-60Hz, 2.2APoE StandardIEEE802.3af/at
Max. PoE PowerMax capacity: 120W
Max capacity for single port: 30WFunctional SwitchStandard Mode: Port 1~10: 10/100Mbps auto-sensing @100 meters
Extend Mode: Port 1~8: 10Mbps @250 meters & Port 9~10: 100Mbps @100 meters
Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect.IndicatorPower Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)
Functional Switch Indicator: EXTEND (green)Cooling Fan-
Operating Temperature-20°∼55°C
Storage Temperature-40°∼75°C
Operating/Storage Humidity10%∼90%RH(non-condensing)
Lightning Protection/ Protection LevelPort lightning protection: 4KV 8/20us
Protection level: IP30Dimensions195mm(W)*130mm(D)*40mm(H)
Weight0.7kg
Installation MethodDesktop Type, Wall Mounted Type
Warranty2 years
-
Ports8X10/100Mbps PoE ports (RJ45) + 2X1000Mbps uplink ports
StandardIEEE802.3 10Base-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3xSwitching Capacity11.8Gbps (non-blocking)
Packet Forwarding Rate @64byte4.17Mpps
Packet Forwarding Cache2M
MAC2K
Power SupplyBuilt-in switching power supply
AC 100~240V, 50-60Hz, 2.2APoE StandardIEEE802.3af/at
Max. PoE PowerMax capacity: 120W
Max capacity for single port: 30WFunctional SwitchStandard Mode: Port 1~10: 10/100Mbps auto-sensing @100 meters
Extend Mode: Port 1~8: 10Mbps @250 meters & Port 9~10: 1000Mbps @100 meters
Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect.IndicatorPower Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)
Functional Switch Indicator: EXTEND (green)Cooling Fan-
Operating Temperature-20°∼55°C
Storage Temperature-40°∼75°C
Operating/Storage Humidity10%∼90%RH(non-condensing)
Lightning Protection/ Protection LevelPort lightning protection: 4KV 8/20us
Protection level: IP30Dimensions195mm(W)*130mm(D)*40mm(H)
Weight0.7kg
Installation MethodDesktop Type, Wall Mounted Type
Warranty2 years
-
Ports16X10/100Mbps PoE ports (RJ45) + 2X1000Mbps uplink ports
StandardIEEE802.3 10Base-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3xSwitching Capacity14.8Gbps (non-blocking)
Packet Forwarding Rate @64byte5.36Mpps
Packet Forwarding Cache4M
MAC16K
Power SupplyBuilt-in switching power supply
AC 100~240V, 50-60Hz, 2.5APoE StandardIEEE802.3af/at
Max. PoE PowerMax capacity: 200W
Max capacity for single port: 30WFunctional SwitchStandard Mode: Port 1~16: 10/100Mbps auto-sensing @100 meters & Port 17~18: 1000Mbps @100 meters
Extend Mode: Port 1~8: 10/100Mbps auto-sensing @100 meters & Port 9~16: 10Mbps @250 meters & Port 17~18: 1000Mbps @100 meters
Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect.IndicatorPower Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)
Functional Switch Indicator: EXTEND (green)Cooling Fan1
Operating Temperature-20°∼55°C
Storage Temperature-40°∼75°C
Operating/Storage Humidity10%∼90%RH(non-condensing)
Lightning Protection/ Protection LevelPort lightning protection: 4KV 8/20us
Protection level: IP30Dimensions270.4mm(W)*181mm(D)*44mm(H)
Weight1.5kg
Installation MethodDesktop Type, Wall Mounted Type
Warranty2 years
-
Ports16X10/100Mbps PoE ports (RJ45) + 2X1000Mbps uplink ports + 2X1000Mbps SFP ports
StandardIEEE802.3 10Base-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-T
IEEE802.3xSwitching Capacity14.8Gbps (non-blocking)
Packet Forwarding Rate @64byte5.36Mpps
Packet Forwarding Cache4M
MAC16K
Power SupplyBuilt-in switching power supply
AC 100~240V, 50-60Hz, 3APoE StandardIEEE802.3af/at
Max. PoE PowerMax capacity: 250W
Max capacity for single port: 30WFunctional SwitchPort 1~16: 10/100Mbps auto-sensing @100 meters & Port 17~18: 1000Mbps @100 meters & Port 19~20: 1000Mbps
IndicatorPower Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)Cooling Fan1
Operating Temperature-20°∼55°C
Storage Temperature-40°∼75°C
Operating/Storage Humidity5%∼90%RH(non-condensing)
Lightning Protection/ Protection LevelPort lightning protection: 4KV 8/20us
Protection level: IP30Dimensions440mm(W)*225mm(D)*44mm(H)
Weight4.4kg
Installation MethodDesktop Type, Wall Mounted Type
Warranty2 years
-
Ports24X10/100Mbps PoE ports (RJ45) + 2X1000Mbps uplink ports
StandardIEEE802.3 10Base-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3xSwitching Capacity14.8Gbps (non-blocking)
Packet Forwarding Rate @64byte6.55Mpps
Packet Forwarding Cache4M
MAC16K
Power SupplyBuilt-in switching power supply
AC 100~240V, 50-60Hz, 5APoE StandardIEEE802.3af/at
Max. PoE PowerMax capacity: 400W
Max capacity for single port: 30WFunctional SwitchStandard Mode: Port 1~24: 10/100Mbps auto-sensing @100 meters & Port 25~26: 1000Mbps @100 meters
Extend Mode: Port 1~16: 10/100Mbps auto-sensing @100 meters & Port 17~24: 10Mbps @250 meters & Port 25~26: 1000Mbps @100 meters
Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect.IndicatorPower Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)
Functional Switch Indicator: EXTEND (green)Cooling Fan1
Operating Temperature-20°∼55°C
Storage Temperature-40°∼75°C
Operating/Storage Humidity10%∼90%RH(non-condensing)
Lightning Protection/ Protection LevelPort lightning protection: 4KV 8/20us
Protection level: IP30Dimensions329.8mm(W)*204mm(D)*44mm(H)
Weight2.2kg
Installation MethodDesktop Type, Wall Mounted Type
Warranty2 years
-
Ports24X10/100Mbps PoE ports (RJ45) + 2X1000Mbps uplink ports + 2X1000Mbps SFP ports
StandardIEEE802.3 10Base-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-T
IEEE802.3xSwitching Capacity14.8Gbps (non-blocking)
Packet Forwarding Rate @64byte6.55Mpps
Packet Forwarding Cache4M
MAC16K
Power SupplyBuilt-in switching power supply
AC 100~240V, 50-60Hz, 5APoE StandardIEEE802.3af/at
Max. PoE PowerMax capacity: 400W
Max capacity for single port: 30WFunctional SwitchPort 1~24: 10/100Mbps auto-sensing @100 meters & Port 25~26: 1000Mbps @100 meters & Port 27~28: 1000Mbps
IndicatorPower Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)Cooling Fan1
Operating Temperature-20°∼55°C
Storage Temperature-40°∼75°C
Operating/Storage Humidity5%∼90%RH(non-condensing)
Lightning Protection/ Protection LevelPort lightning protection: 4KV 8/20us
Protection level: IP30Dimensions440mm(W)*225mm(D)*44mm(H)
Weight4.5kg
Installation MethodDesktop Type, Wall Mounted Type
Warranty2 years
-
* Naming Convention
E - 10/100Mbps Uplink Port
G - Gigabit Uplink Port
L - Extend Mode
F - Optical Fiber Port(SFP)
